4K-5W155 ‘Deimos’

The Smart-e 4K-5W155 is a high resolution 4K UHD KVM extender for USB 2.0 together with RS232 pass-through and bi-directional IR control capable of transmitting over 100m of structured cabling or 60m of fibre optic cable

Key Features

  • USB 2.0 keyboard video & mouser extender
  • UHD 2K and 4K, 1080p resolutions
  • HDCP 1.4 compliant, HDMI V1.4
  • Supports 1920×1200@60Hz
  • 100m Cat 6 extension
  • 60km single mode fibre extension
  • 4K@60Hz colour space 4:2:0

The Smart-e 4K-5W155 is a high resolution 4K UHD KVM extender for USB 2.0 together with RS232 pass-through and bi-directional IR control capable of transmitting over 100m of structured cabling or 60km of fibre optic cable

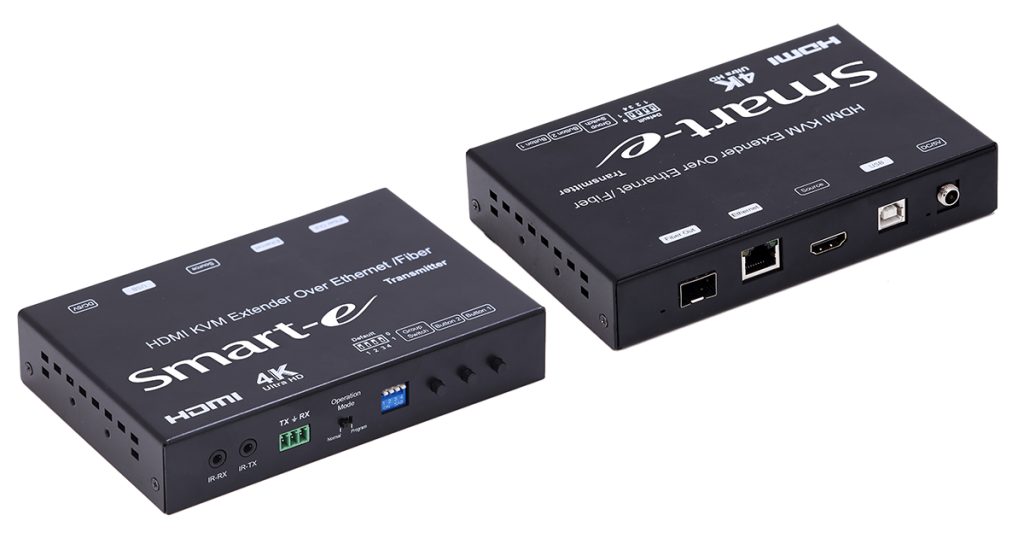

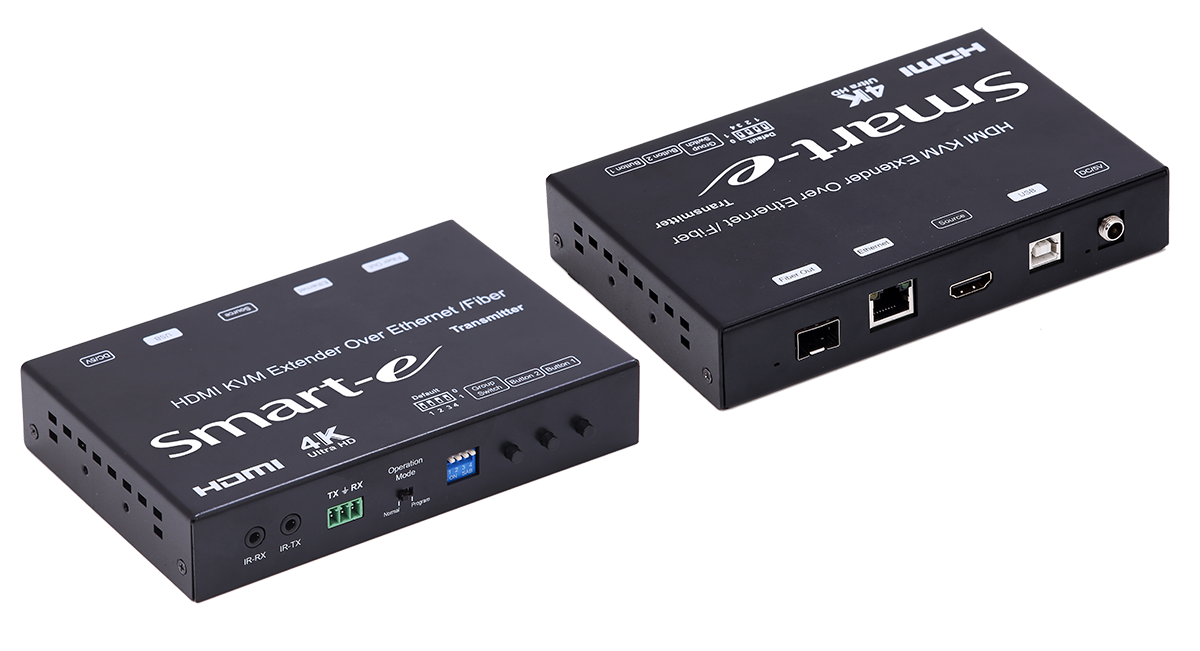

The 4K-5W155 is a combination of a transmit/receiver pair capable of transmitting HDMI signals up to 4K UHD resolutions over 100m of Cat 6 cable or 60km of fibre.

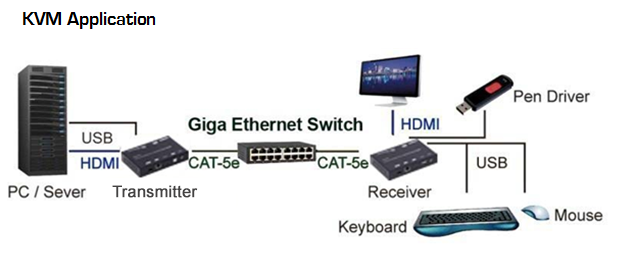

The 4K HDMI & USB over IP Extender is a solution for audio, video and USB signal extension via Local Area Network (LAN). It can be used as audio, video and KVM extender over IP and applied to point to point, point to multi-point, multi-point to multi-point and screen wall broadcast system controlled by USB, RS232, IR and configured the 4K HDMI & USB over IP Extender by web browser. An easy installation system built up with Giga Ethernet switch which has IGMP function and CATx cable for extension or broadcast.

Features

  • USB 2.0 keyboard video & mouser extender
  • UHD 2K and 4K, 1080p resolutions
  • HDCP 1.4 compliant, HDMI V1.4
  • Supports 1920×1200@60Hz
  • 100m Cat6 extension
  • 60km single mode fibre extension
  • 4K@60Hz colour space 4:2:0
  • RS232 full duplex and pass-through
  • Dolby TrueHD DTS-HD Master Audio
  • Total 10.2 Gbits/s data rate
  • Point to point Unicast & Multicast
  • Lockable DC connector
  • EDID management
  • Video Wall feature – 8×16

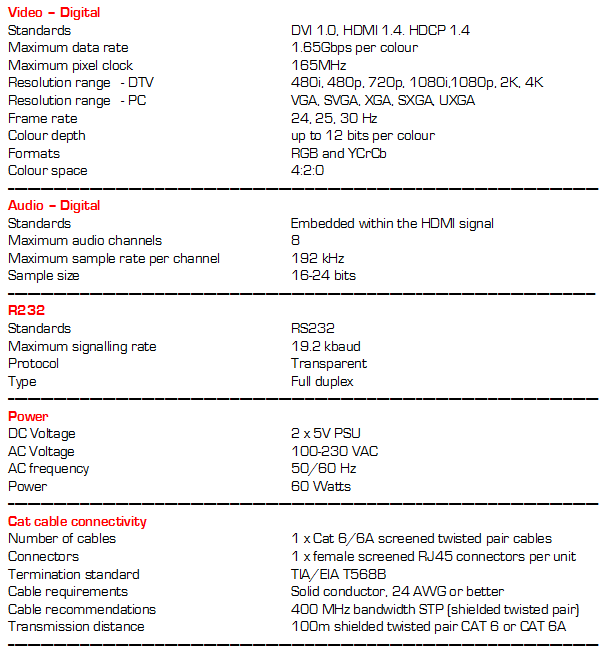

Specification

Downloads

Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.

Description Type Size
Datasheet PDF File 363 KB
User Manual PDF File 3,101 KB
