SDSC-1050

The SDSC-1050 is a flexible and cost effective wall plate transmitter and compact receiver solution for extending 4K HDMI resolution video or DisplayPort signals together with POC (remote power over cable). The pair of units are supplied as a convenient UK size double gang transmitter wall/floor plate (SDSC—TX1050) together with its complementary compact receiver (SDSC-RX1050).

Key Features

  • 50m CAT 6/6A STP cable
  • Double gang Wall plate transmitter
  • HDMI 2.0 4K@60Hz, 4:4:4, 18Gbps
  • HDR 10, HDR10+, Dolby Vision, HLG
  • HDCP 2.2/1.3 compliant
  • Auto/manual switching
  • Cream/Black colours available

The SDSC-1050 is a flexible and cost effective wall plate transmitter and compact receiver solution for extending 4K HDMI resolution video or DisplayPort signals together with POC (remote power over cable). The pair of units are supplied as a convenient UK size double gang transmitter wall/floor plate (SDSC—TX1050) together with its complementary compact receiver (SDSC-RX1050).

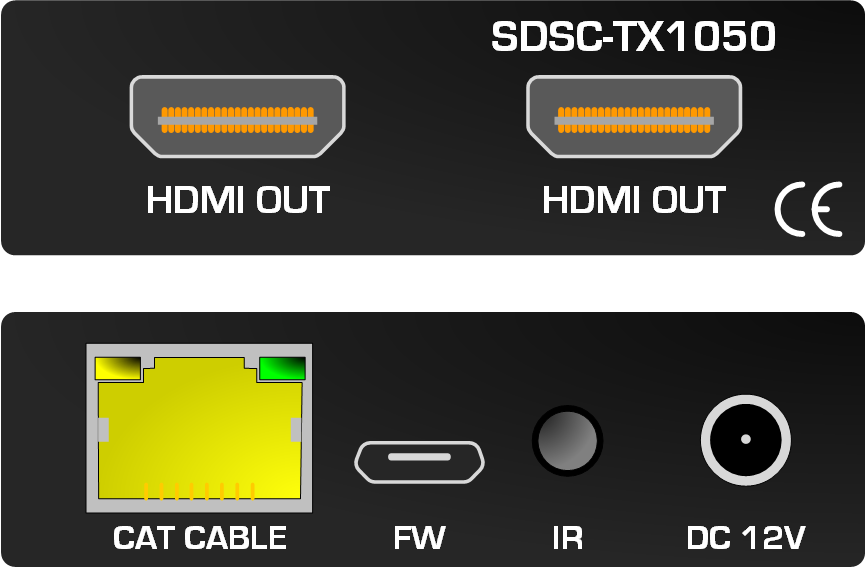

The SDSC-TX1050 transmitter wall plate is designed to accept the connection of two separate devices. One device can connect video via HDMI up to 18Gbps whilst the other device can connect via DisplayPort through the USB-C connector up to 5.2Gbps. Selection between the devices can be achieved by either the toggle button on the panel or the auto feature which means the last connected device win. There is also an additional USB-C connector to enable a compatible device to be charged.

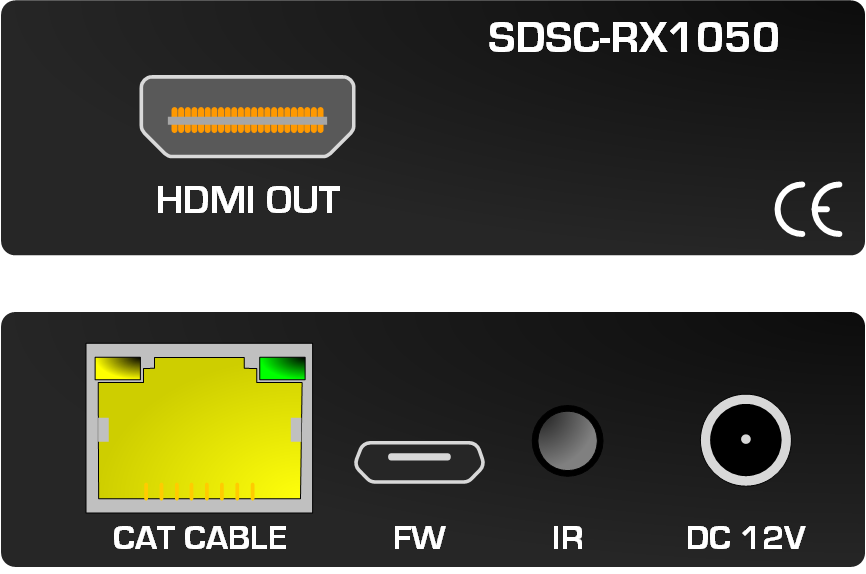

The SDSC-RX1050 receiver unit connects to the wall plate via a single Cat 6/6a cable at a distance of up to 50m. The receiver present the video out on a single HDMI connector and obtains its power through the Cat cable from the transmitter.

Owing to it compact size and low cost the SDSC-1050 is ideal for Schools and Further Education applications but can also be used for any meeting/board/huddle room requirements.

Features

  • 50m CAT 6/6A STP cable
  • Double gang Wall plate transmitter
  • HDMI 2.0 4K@60Hz, 4:4:4, 18Gbps
  • HDR 10, HDR10+, Dolby Vision, HLG· HDCP
  • 2.2/1.3 compliant
  • Auto/manual switching
  • Cream/Black colours available
  • USB-C DisplayPort input
  • USB-C charging point
  • HDMI resolutions 4K, 2K &1080p
  • CEC compliant
  • Integral mounting brackets
  • Secure DC connection
  • POC (remote powering wall plate)

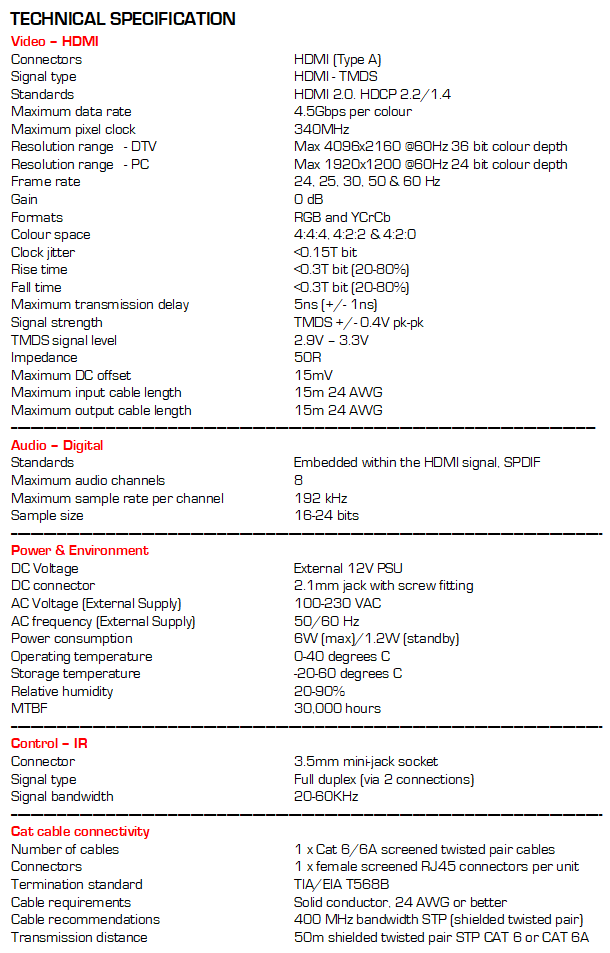

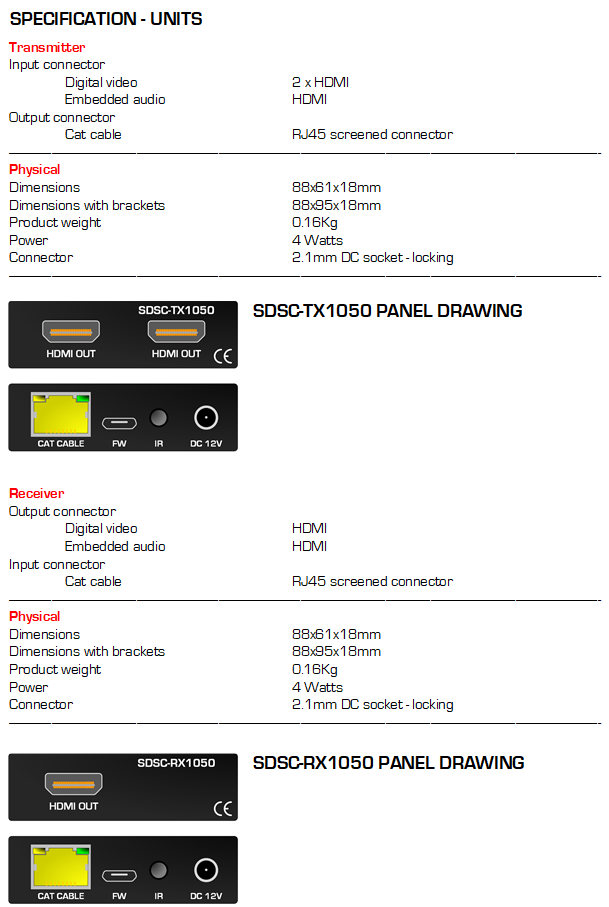

Specification

Downloads

Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.

Description Type Size
Datasheet PDF File  448KB
