444K-2850
The Smart-e 444K-2850 is a highly integrated professional video processor capable of producing multiple simultaneous features. These include a 4 x 12 seamless switching matrix a 3 x 4 video wall processor and the added ability to act as a multi-viewer with free window roaming up to 4 layers.
Key Features
- Flexible Video Wall processor
- 4 layer roaming multi-viewer
- 4 x 12 seamless switcher
- 4K @ 60Hz/ 1080p @60Hz
- 36 bit colour depth
- HDCP 2.2/1.4 compliant
- Multiple control options
Images
Solutions
The Smart-e 444K-2850 is a highly integrated professional video processor capable of producing multiple simultaneous features. These include a 4×12 seamless switching matrix a 3×4 video wall processor and the added ability to act as a multi-viewer with free window roaming up to 4 layers.

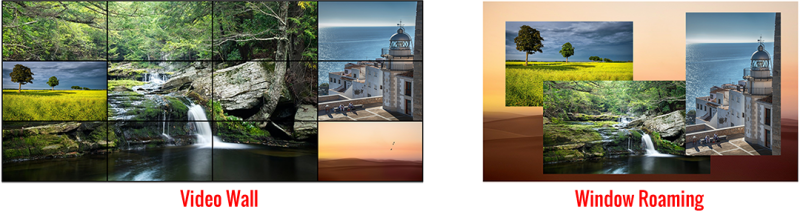

As a matrix the 444K-2850 can be used as a 4×12 seamless HDMI matrix with fast switching speeds of less than 40ms creating professional broadcast transitions between inputs. Alternatively the unit can unit be configured as a 3×4 video wall using all 12 HDMI outputs with adjustments for bezel positioning and size to form the perfect image appearance. The 444K-2850 also has the ability to display all of the 4 video inputs on a single output display to create a free roaming montage of the 4 images on 4 different layers.
The twelve 4K60Hz HDMI outputs are designed to connect to 12 HDMI compliant monitors, each with discrete output scaling to accommodate displays with different aspect ratios together with individual image rotation.

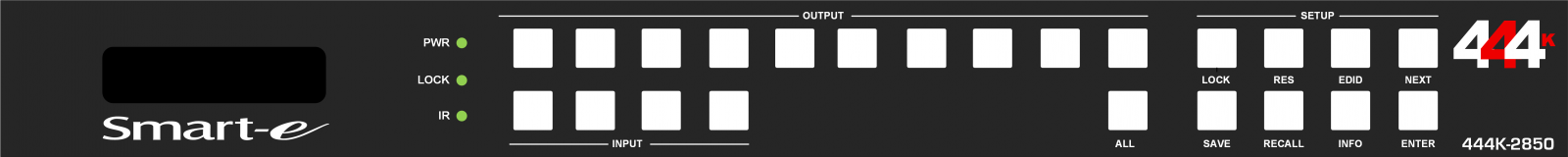

Multiple control options are provided including: front panel button control, infra-red control via the provided handset or remote-control options of RS232 or TCP/IP for interfacing to an external control system. An internal web browser is also available for configuration and control of all the comprehensive features.
The 444K-2850 has comprehensive EDID management allowing users to assign the EDID values from 1080p to 4K60 to any of the four inputs maximizing the quality of the source material.
A two channel stereo audio output is provided as an analogue or digital (TOSLINK) signal switchable between the 4 HDMI audio embedded input signals.
The 444K-2850 professional video processor is available in a convenient compact 1Ux19″ rack mounting chassis with a reliable secure IEC mains (100-240 VAC) supply input.
Features
- Flexible Video Wall processor
- 4 layer roaming multi-viewer
- 4 x 12 seamless switcher
- 4K @ 60Hz/ 1080p @60Hz
- 36 bit colour depth
- HDCP 2.2/1.4 compliant
- HDMI 2.0 & DVI 1.0
- Multiple control options
- Picture rotation
- CEC compliant
- HDMI inputs x 4
- Embedded stereo audio
- HDMI output x 12
- Front panel control
- EDID management
- 19″ rack mounting
- RS232 & IR control
- Ethernet control

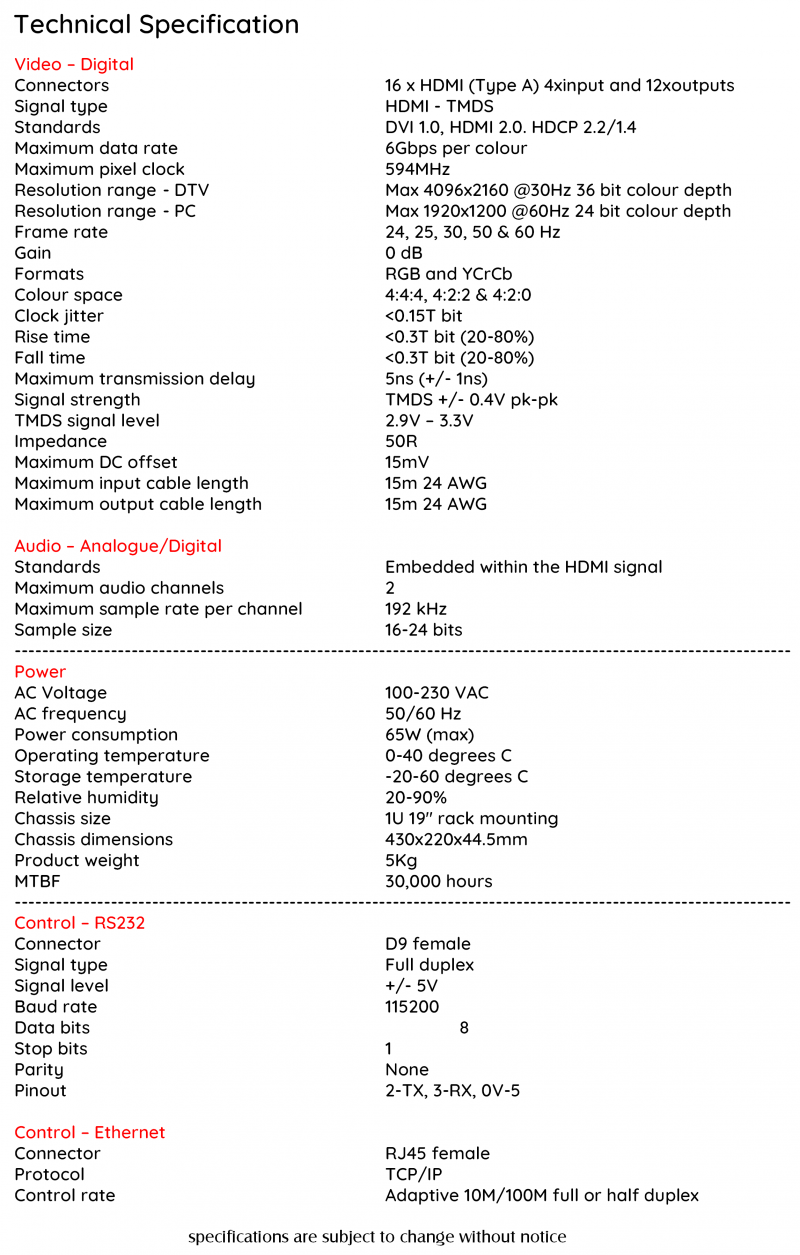

Specification

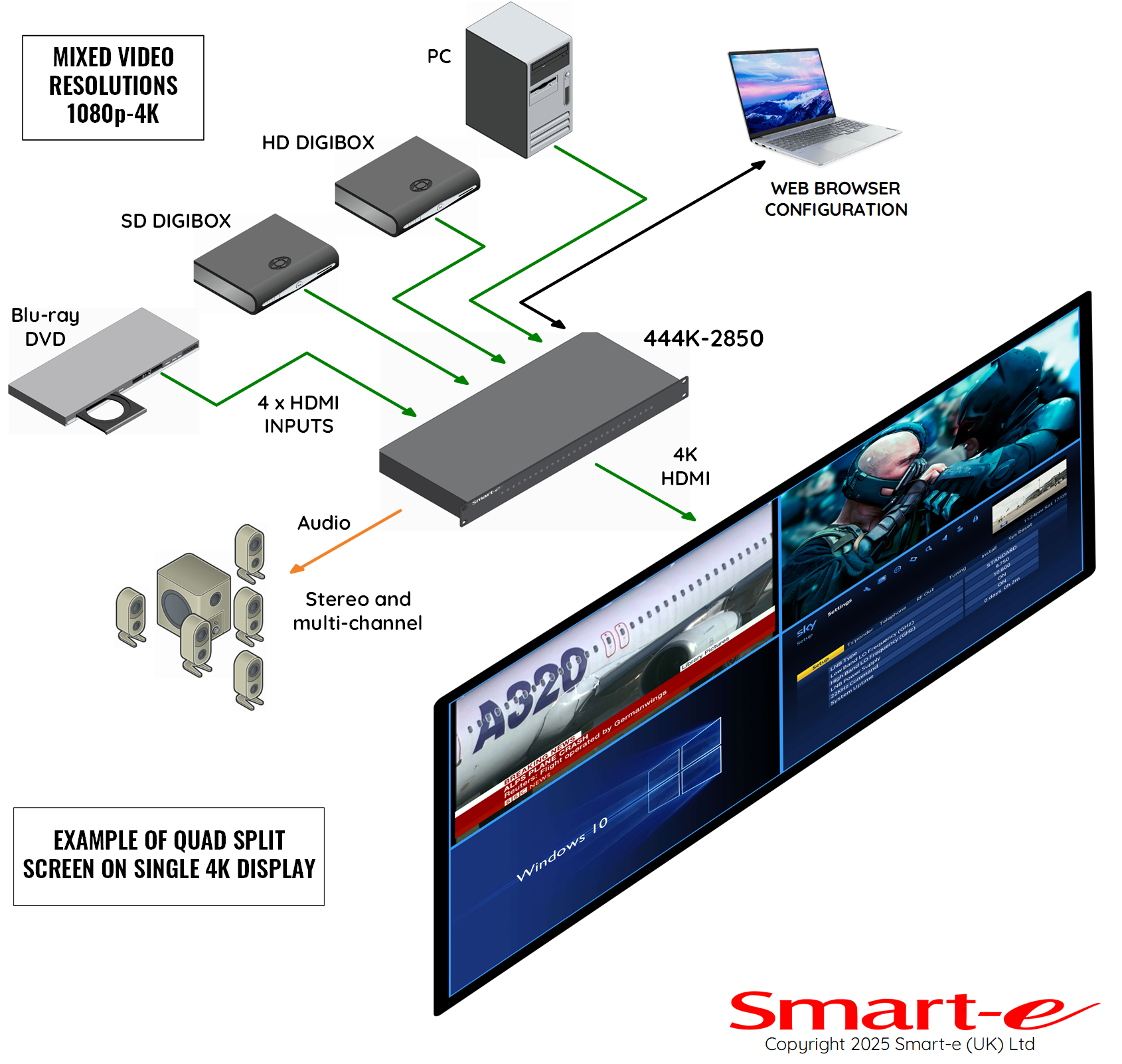

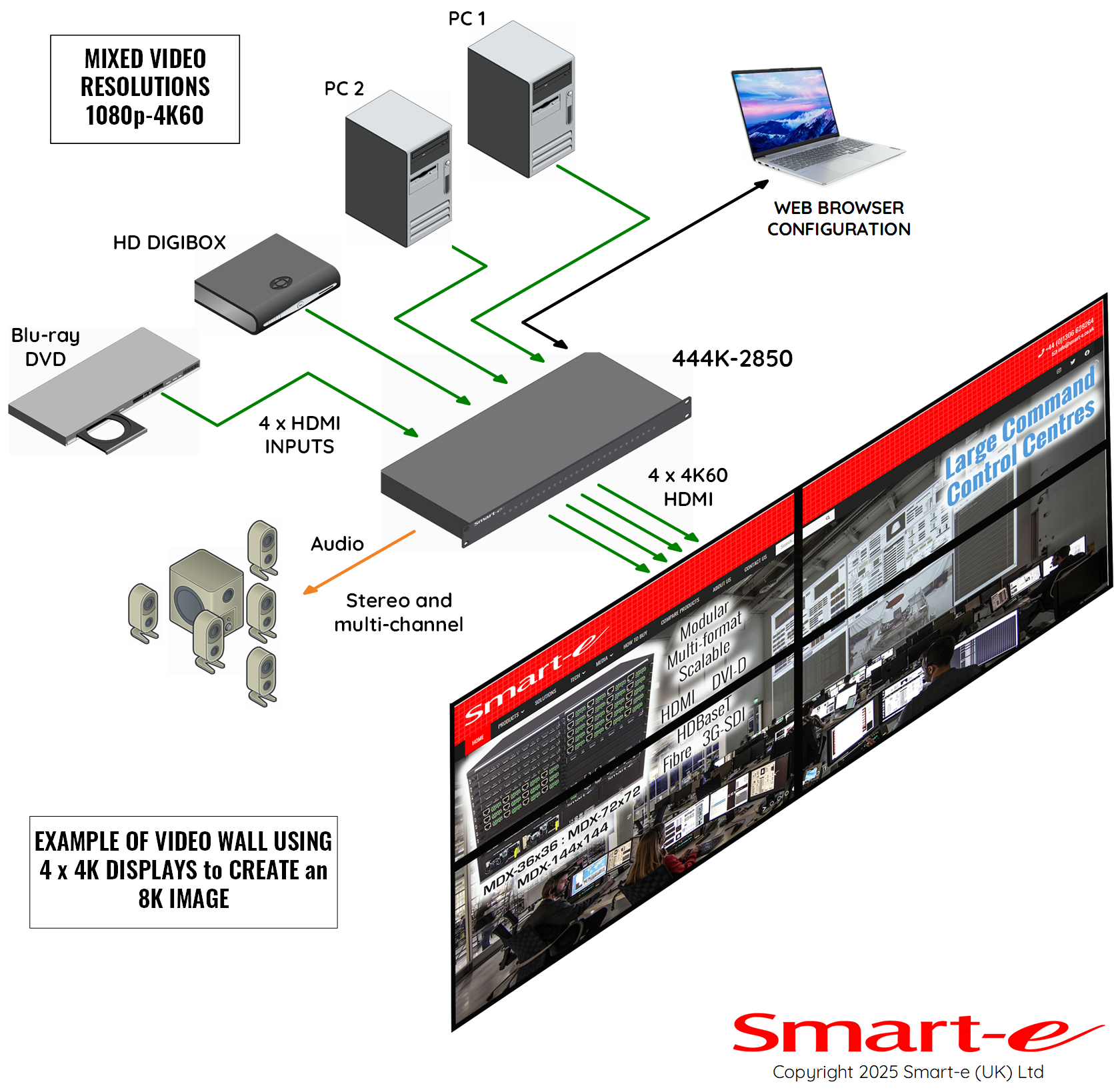

Application Examples
Downloads
Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.
Description | Type | Size |
---|---|---|
Datasheet 444K-2850 | PDF File | 1096 KB |
User Manual 444K-2850 | PDF File | 1350 KB |
