Point to Point Extenders

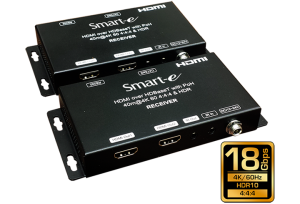

| EXTENDERS | 4K-725 | 444K-750 | 4K-875 | SDSC-925 | SDSC-1050 |
| 1080p 4K@60Hz 4K 4:4:4 18Gbps |
 |
 |
|
 |
 |
| Max Cable Distance | 70m | 70m | 100m | 150m | 50m |
| Max Bitrate | 10.2Gbps | 18Gbps | 18Gbps | 18Gbps | 18Gbps |
| IR/RS232 | Wide band/Full duplex | Wide band/Full duplex | Wide band/Full duplex | Wide band/Full duplex | Wide band IR |
| Remote power | Either Tx or Rx | Either Tx or Rx | Either Tx or Rx | Either Tx or Rx | Either Tx or Rx |
| Special Features | Compact unit | Looping i/p transmitter | Dual output receiver | Looping i/p & audio o/p | Looping i/p transmitter |
| Ideal uses | Digital Signage | Back to back displays | Smart TV connection | Separate audio feed | HDR10 & Dolby Vision |
Wall and Floor Plates

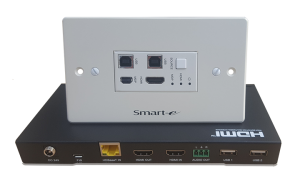

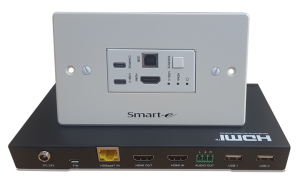

| WALL PLATES | SDSC 1050 | SDSC 1051 | 444K 912 | SDSC 2001+ | SDSC 2002 |
|
1080p
4K@60Hz
4K 4:4:4
18Gbps
|
 |
|
 |
 |
 |
| Max Cable Distance | 50m | 50m | 70m | 100m | 70m |
| Secondary Video | USB C | DisplayPort | RGBHV | USB-C | DisplayPort |
| Device charging | USB-C | USB-C | – | USB-C | – |
| Control passthrough | – | – | IR/RS232 | USB 2.0 | USB 2.0 |
| Special Features | Auto sense input | Compact receiver | VGA 1080p scaling | Local I/P on Rx | Local audio O/P |
| Ideal uses | Boardroom display | Presentation system | School Classroom | Interactive touchscreen | KVM switch & extender |
Modular Scalable Matrices – 70m HDBaseT
| LDX+ MATRIX | LDX 8×8+ | LDX 16×16+ | LDX 36×36+ | LDX 72×72+ | LDX 144×144+ |
|
1080p
4K@60Hz
4K 4:4:4
18Gbps
|
 |
 |
 |
 |
 |
| Max Cable Distance | 70m | 70m | 70m | 70m | 70m |
| Max Bitrate | 10.2Gbps | 10.2Gbps | 10.2Gbps | 10.2Gbps | 10.2Gbps |
| Chassis size | 2U x 354mm | 3U x 354mm | 7U x 354mm | 12U x 354mm | 24U x 354mm |
| Max inputs/outputs | 8 in and 8 out | 16 in and 16 out | 36 in and 36 out | 72 in and 72 out | 144 in and 144 out |
| Special Features | Seamless switching | RS232 routing | Video wall options | 4 way modular blades | Scalable |
| Ideal uses | Presentation system | Video wall controller | Command vehicles | Cmd & Ctl Center | Build wide distribution |
Modular Scalable Matrices – 100m HDBaseT

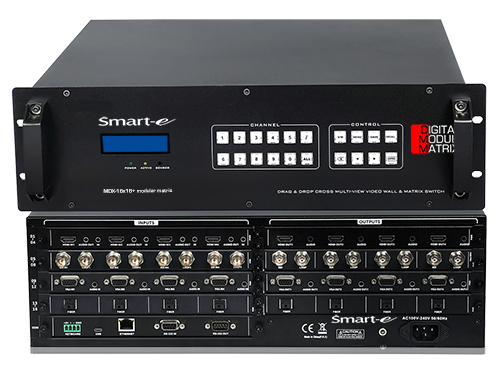

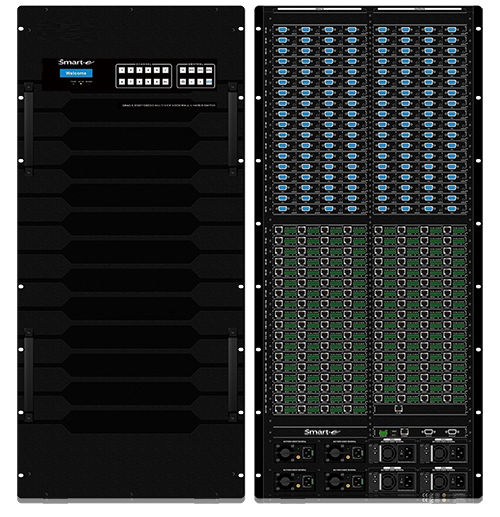

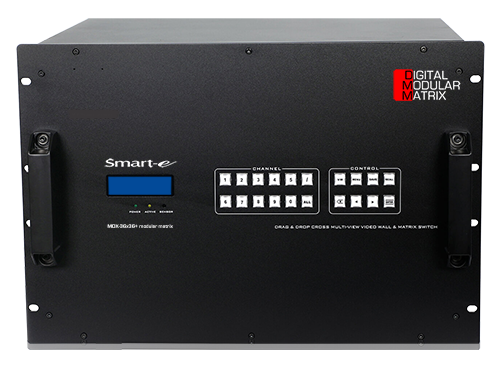

| MDX+ MATRIX | MDX 8×8+ | MDX 16×16+ | MDX 36×36+ | MDX 72×72+ | MDX 144×144+ |
|
1080p
4K@60Hz
4K 4:4:4
18Gbps
|
 |
 |
 |
 |
|
| Max Cable Distance | 100m | 100m | 100m | 100m | 100m |
| Max Bitrate | 10.2Gbps | 10.2Gbps | 10.2Gbps | 10.2Gbps | 10.2Gbps |
| Chassis size | 2U x 354mm | 3U x 354mm | 7U x 354mm | 12U x 354mm | 24U x 354mm |
| Max inputs/outputs | 8 in and 8 out | 16 in and 16 out | 36 in and 36 out | 72 in and 72 out | 144 in and 144 out |
| Special Features | Seamless switching | RS232 routing | Video wall options | 4 way modular blades | Scalable |
| Ideal uses | Presentation system | Video wall controller | Command vehicles | Cmd & Ctl Center | Build wide distribution |
HDMI/HDBaseT Matrices

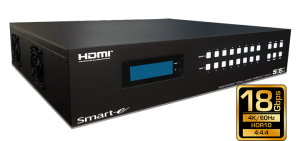

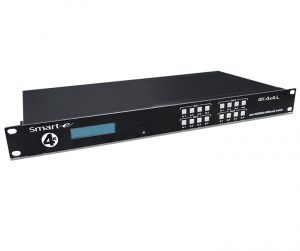

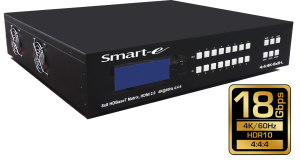

| FIXED MATRIX | 4K 4×4 L | SDSC 4×4 RSP | 444K 8×8 L | SDSC 8×8 RSP |
|
1080p
4K@60Hz
4K 4:4:4
18Gbps
|
 |
|
 |
 |
| Max Cable Distance | 70m | 150m | 70m | 150m |
| Max Bitrate | 10.2Gbps | 18Gbps | 18Gbps | 18Gbps |
| Mirrored outputs | – | HDMI & HDBaseT | HDMI & HDBaseT | HDMI & HDBaseT |
| Inputs/outputs | 4 in and 4 out | 4 in and 4 dual out | 8 in and 8 dual out | 8 in and 8 dual out |
| Special Features | Simple panel control | CEC control cmds | EDID management | O/P downscaler 1080p |
| Ideal uses | Small meeting room | Digital signage | Residential | University campus |
Multiway Splitters

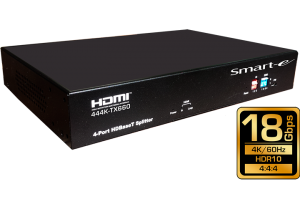

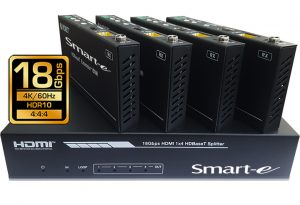

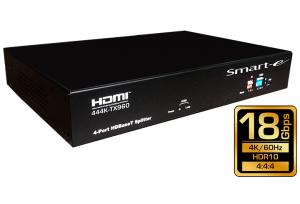

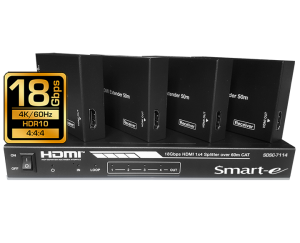

| FIXED MATRIX | 444K TX660 | 444K TX960 | SDSC TX1150 | SDSC TX7114 |
|
1080p
4K@60Hz
4K 4:4:4
18Gbps
|
 |
 |
 |
 |
| Max Cable Distance | 70m | 100m | 150m | 50m |
| Max Bitrate | 18Gbps | 18Gbps | 18Gbps | 18Gbps |
| IR/RS232 | Wide band/Full duplex | Wide band/Full duplex | Wide band/Full duplex | Wide band reverse IR |
| Remote power | From Tx | From Tx | From Tx | From Tx |
| Special Features | EDID management | Addressable RS232 | Audio output on Tx | 1U rack kit |
| Ideal uses | Digital Signage | Airport arrival/departs | New TV | University campus |
KVM Extenders using USB 2.0

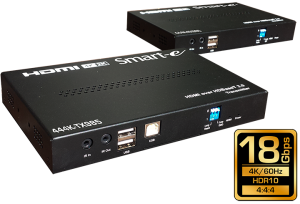

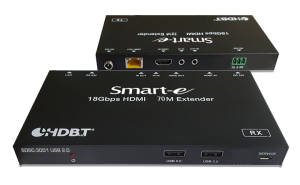

| USB 2.0 KVM | 444K 985 USB | SDSC 3000 | SDSC 3001 |
|
1080p
4K@60Hz
4K 4:4:4
18Gbps
|
 |
 |
 |
| Max Cable Distance | 100/150m | 100m | 70m |
| Max Bitrate | 18Gbps | 18Gbps | 18Gbps |
| IR/RS232 | Wide band/Full duplex | Wide band/Full duplex | Wide band/Full duplex |
| Remote power | Either Tx or Rx | Either Tx or Rx | Either Tx or Rx |
| Special Features | 150m option | Ethernet/ARC | Slim format |
| Ideal uses | Command center | Post Production | Comms room |
USB/KVM Switching

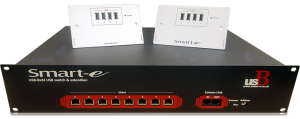

| USB 2.0 KVM | USB-8×8 | USB-16×8 | USB-24×8 |
|
USB 2.0
12Mbps
|
 |
 |
|
| Max Cable Distance | 50m | 50m | 50m |
| Max Bitrate | 12Mbps | 12Mbps | 12Mbps |
| RS422 | Full duplex control | Full duplex control | Full duplex control |
| Remote power | 24V to receiver | 24V to receiver | 24V to receiver |
| Special Features | 8 PCs to 8 Users | 16 PCs to 8 Users | 24 PCs to 8 Users |
| Ideal uses | Interactive meeting room | Luxury yacht | Commnd and control centre |
