SDSC-2001+

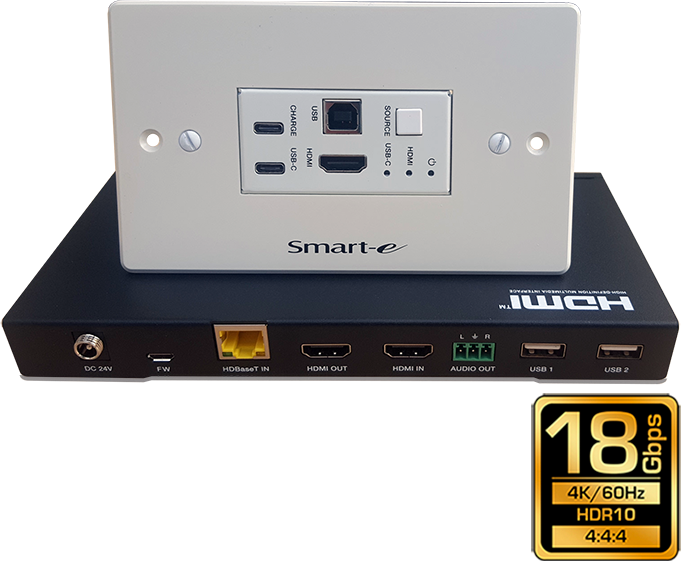

The SDSC-2001+ is a flexible and cost effective wall plate transmitter and compact receiver solution for extending 4K HDMI resolution video, DisplayPort and USB signals together with POC (remote power over cable). The pair of units are supplied as a convenient UK size double gang transmitter wall/floor plate (SDSC-TX2001+) together with its complementary compact receiver.

Key Features

  • Double gang Wall plate transmitter
  • 100m HDBaseT technology
  • HDMI 2.0 4K@60Hz, 4:4:4, 18Gbps
  • HDR 10, HDR10+, Dolby Vision, HLG
  • HDCP 2.2/1.3 compliant
  • Local input on receiver
  • Auto/manual switching
  • Audio output on RX

Other Links

Images

Similar Models

Description

The SDSC-2001+ is a flexible and cost effective wall plate transmitter and compact receiver solution for extending 4K HDMI resolution video, DisplayPort and USB signals together with POC (remote power over cable). The pair of units are supplied as a convenient UK size double gang transmitter wall/floor plate (SDSC-TX2001+) together with its complementary compact receiver.

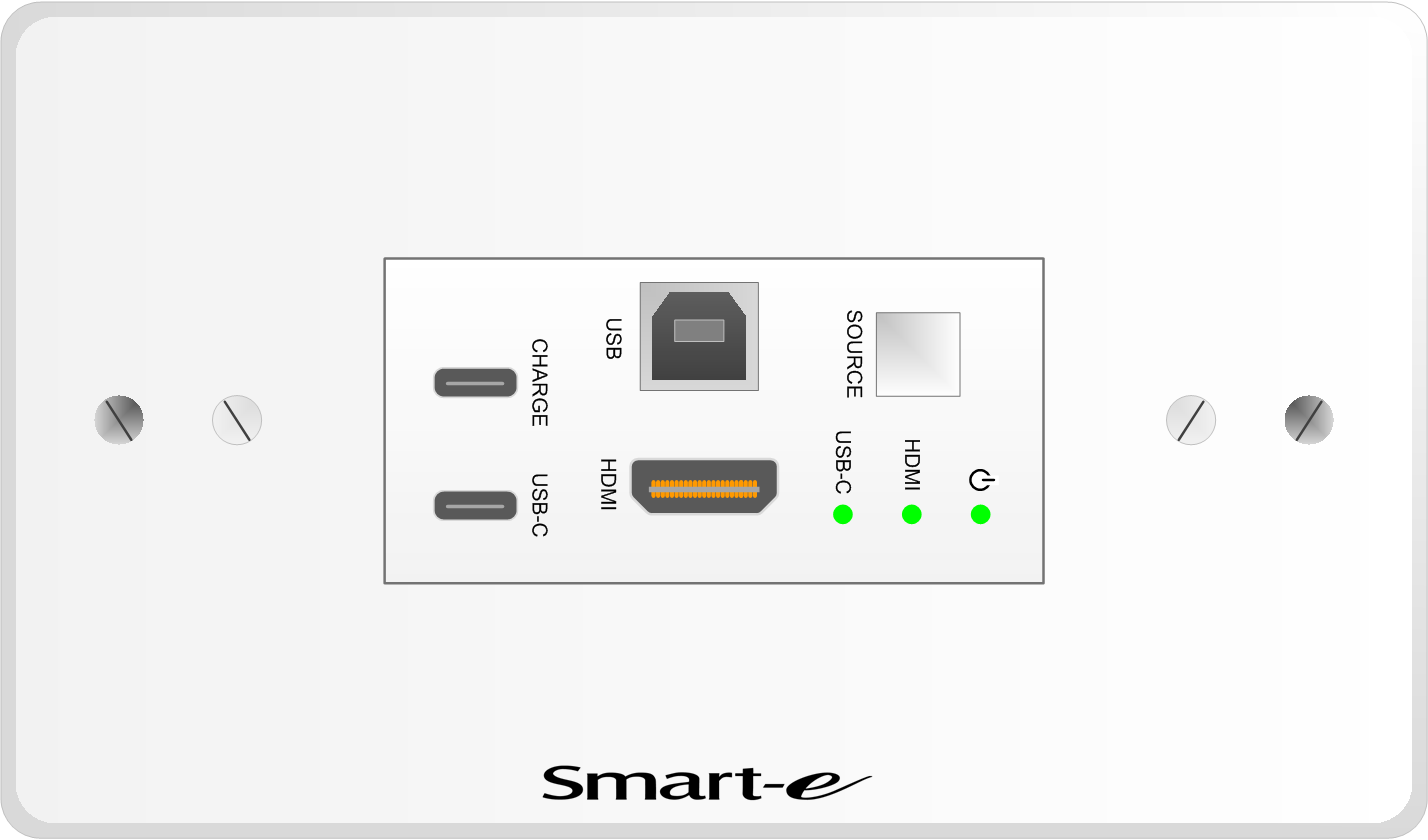

The SDSC-TX2001+ transmitter wall plate is designed to accept the connection of two separate devices. One device can connect video via HDMI up to 18Gbps with a separate USB 2.0 connection for control. The other device can connect via a single USB-C connection for both DisplayPort up to 18Gbps and USB 2.0 within the same connector. There is also an additional USB-C connector to enable a compatible device to be charged. Selection between the devices can be achieved by either the toggle button on the panel or the auto feature which means the last connected device wins.

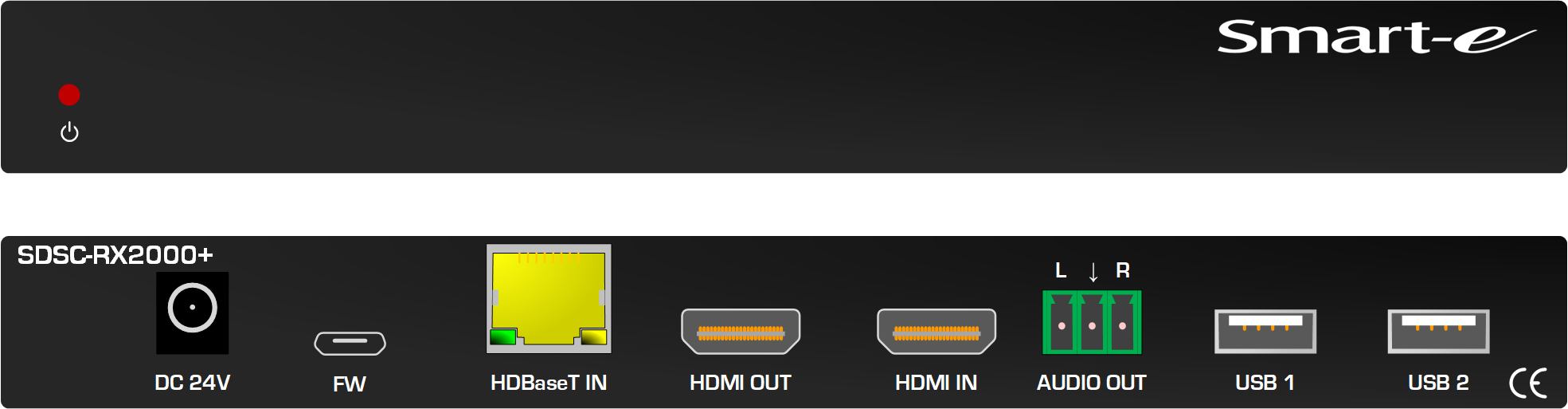

The SDSC-RX2000+ receiver unit connects to the wall plate via a single Cat 6/6a cable at a distance of up to 100m. The receiver present the video out on a single HDMI connector together with an analogue stereo audio output, de-embedded from the HDMI signal. There is also a HDMI input which allows a local PC to be connected and switched through to the main output when there is no signal from the wall plate. A dual pair of USB B connectors provide the means to connect peripherals to the wall plate connected computer.

Features

  • Double gang Wall plate transmitter
  • HDBaseT technology
  • HDMI 2.0 4K@60Hz, 4:4:4, 18Gbps
  • HDR 10, HDR10+, Dolby Vision, HLG
  • HDCP 2.2/1.3 compliant
  • Local input on receiver
  • Auto/manual switching
  • Audio output on RX
  • Cream/Black colours available
  • USB-C DisplayPort input
  • USB-C charging point
  • USB 2.0 extension
  • 100m CAT 6/6A STP cable
  • HDMI resolutions 4K, 2K &1080p
  • CEC compliant
  • Integral mounting brackets
  • Secure DC connection
  • POC (remote powering wall plate)

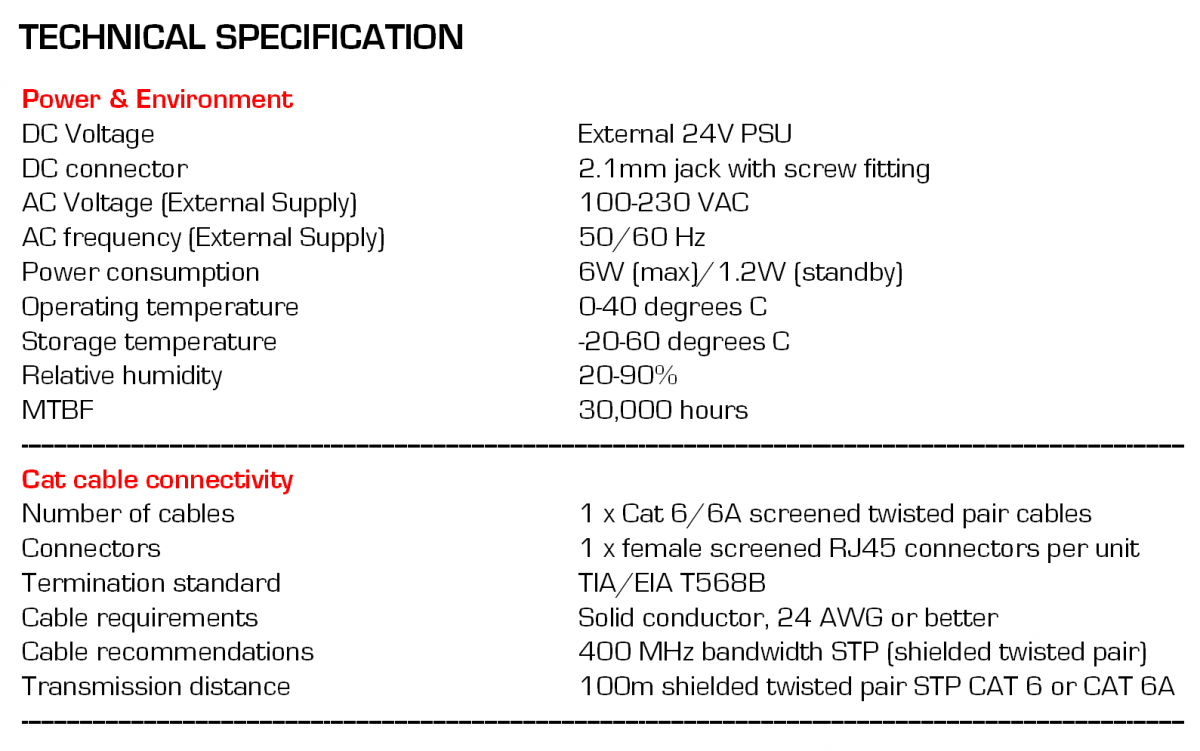

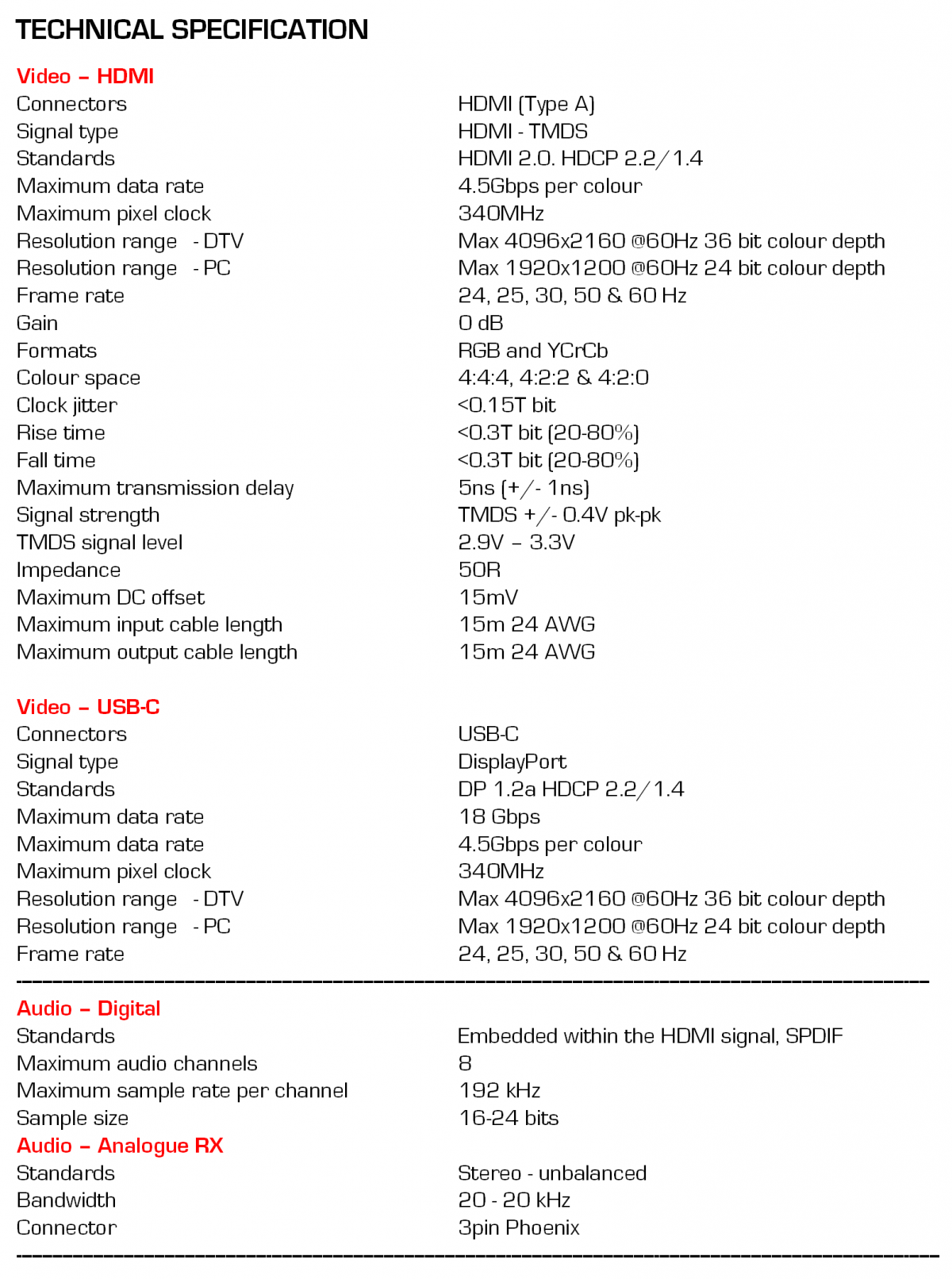

Specification

Downloads

Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.

Description Type Size
Datasheet PDF File 556 KB
SDSC-2001+ Wall plate Range PDF File 396 KB
