SDSC-1051-W

The SDSC-1051-W is a flexible and cost effective wall plate transmitter and compact receiver solution for extending 4K HDMI resolution video or DisplayPort signals together with POC (remote power over cable). The pair of units are supplied as a convenient UK size double gang transmitter wall/floor plate (SDSC—TX1051-W) together with its complementary compact receiver (SDSC-RX1050).

Key Features

  • 50m CAT 6/6A STP cable
  • Double gang Wall plate transmitter
  • HDMI 2.0 4K@60Hz, 4:4:4, 18Gbps
  • HDR 10, HDR10+, Dolby Vision, HLG
  • HDCP 2.2/1.3 compliant
  • Auto/manual switching
  • Cream/Black colours available

Other Links

Images

Similar Models

The SDSC-1051-W is a flexible and cost effective wall plate transmitter and compact receiver solution for extending 4K HDMI resolution video or DisplayPort signals together with POC (remote power over cable). The pair of units are supplied as a convenient UK size double gang transmitter wall/floor plate (SDSC—TX1051) together with its complementary compact receiver (SDSC-RX1050).

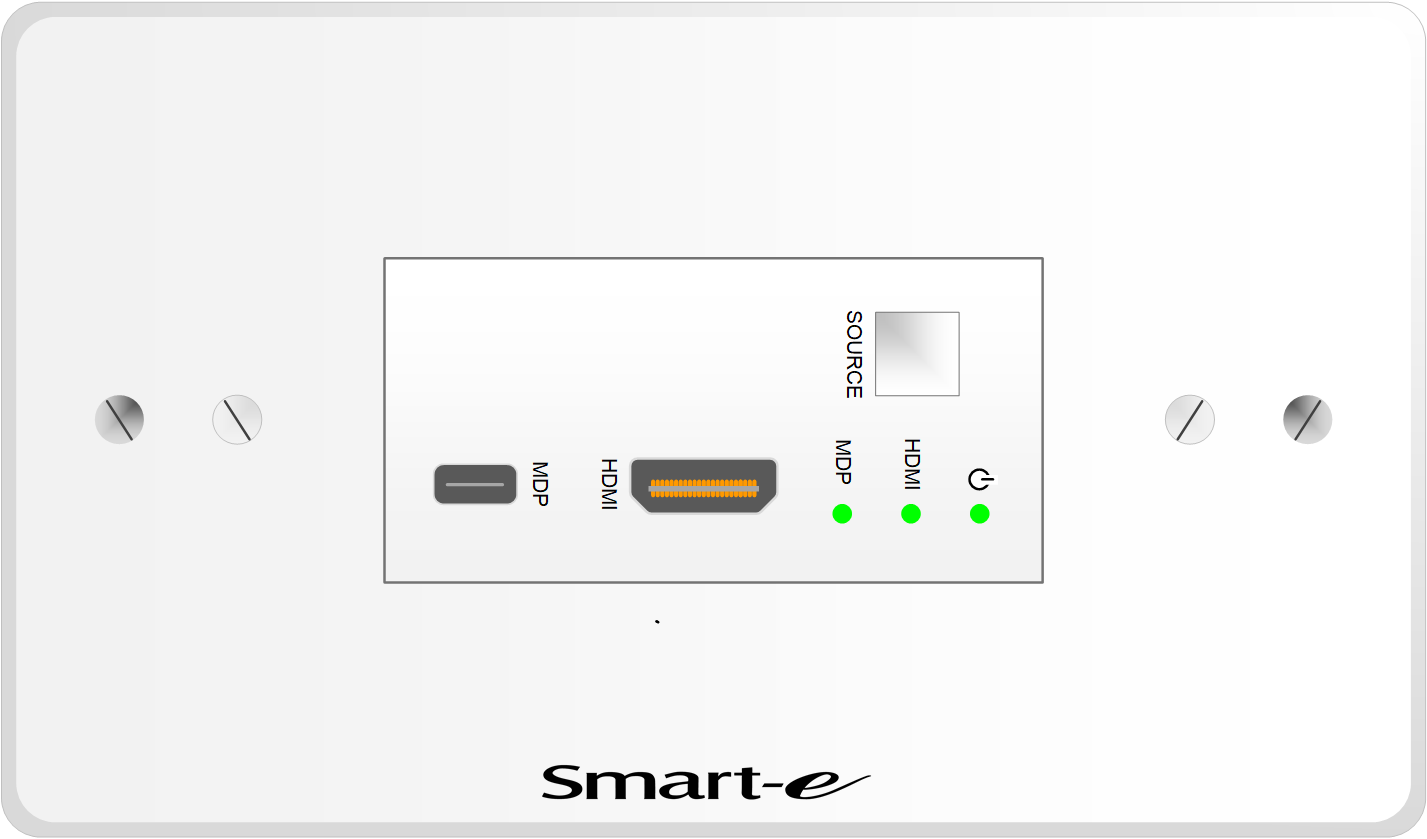

The SDSC-TX1051-W transmitter wall plate is designed to accept the connection of two separate devices. One device can connect video via HDMI up to 18Gbps whilst the other device can connect via DisplayPort through a mini-DP connector up to 5.2Gbps. Selection between the devices can be achieved by either the toggle button on the panel or the auto feature which means the last connected device win.

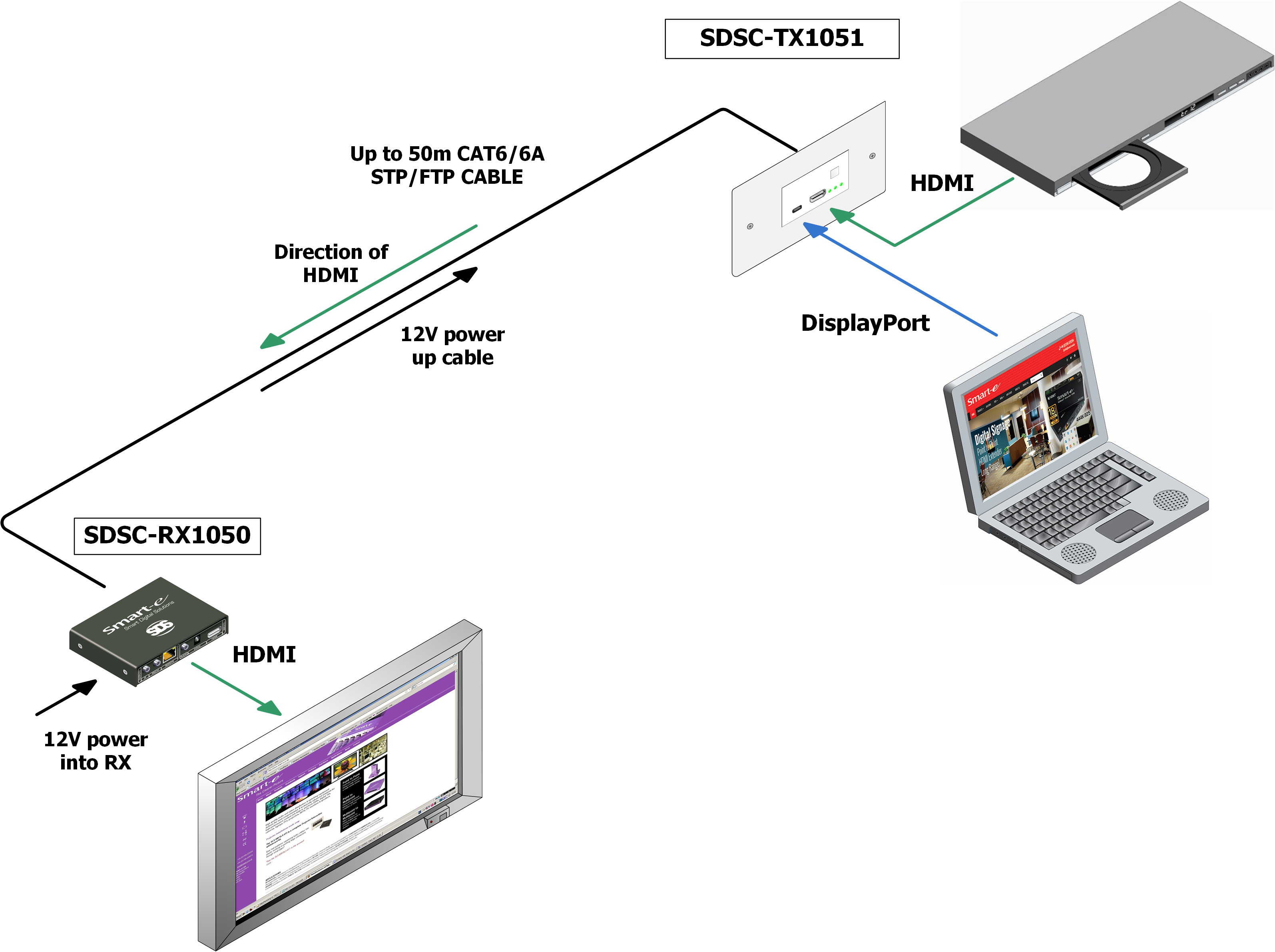

The SDSC-RX1050 receiver unit connects to the wall plate via a single Cat 6/6a cable at a distance of up to 50m. The receiver present the video out on a single HDMI connector and allows a 12V DC PSU to be connected which also powers the wall plate transmitter through hte Cat cable.

Owing to it compact size and low cost the SDSC-1051-W is ideal for Schools and Further Education applications but can also be used for any meeting/board/huddle room requirements.

Please note wall plate requires 70mm clearance depth.

Features

  • 50m CAT 6/6A STP cable
  • Double gang Wall plate transmitter
  • HDMI 2.0 4K@60Hz, 4:4:4, 18Gbps
  • HDR 10, HDR10+, Dolby Vision, HLG· HDCP
  • 2.2/1.3 compliant
  • Auto/manual switching
  • Cream/Black colours available
  • Mini DisplayPort input
  • DisplayPort 1080p 5,2Gbps
  • HDMI resolutions 4K, 2K &1080p
  • CEC compliant
  • Integral mounting brackets
  • Secure DC connection
  • POC (remote powering wall plate)

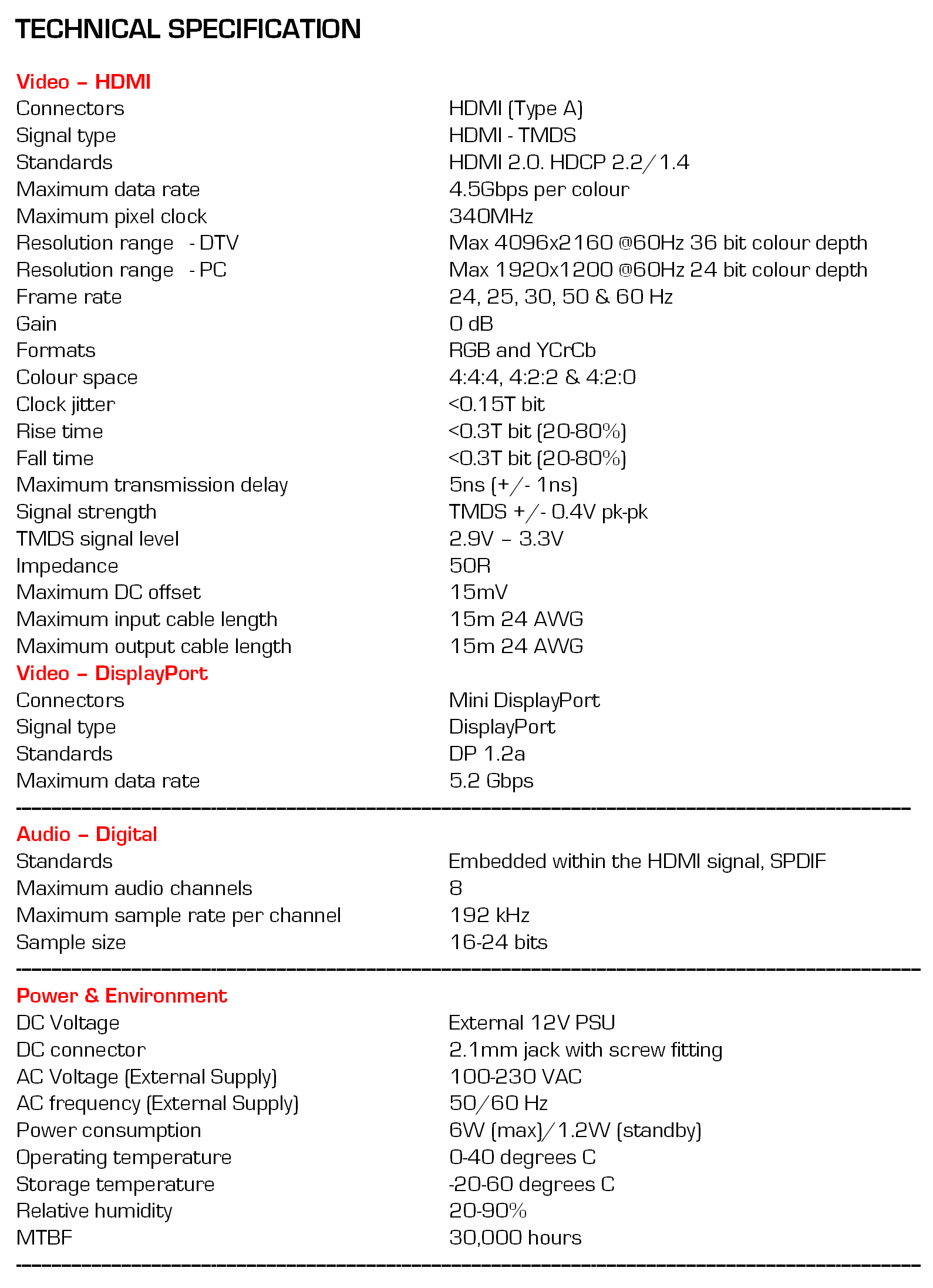

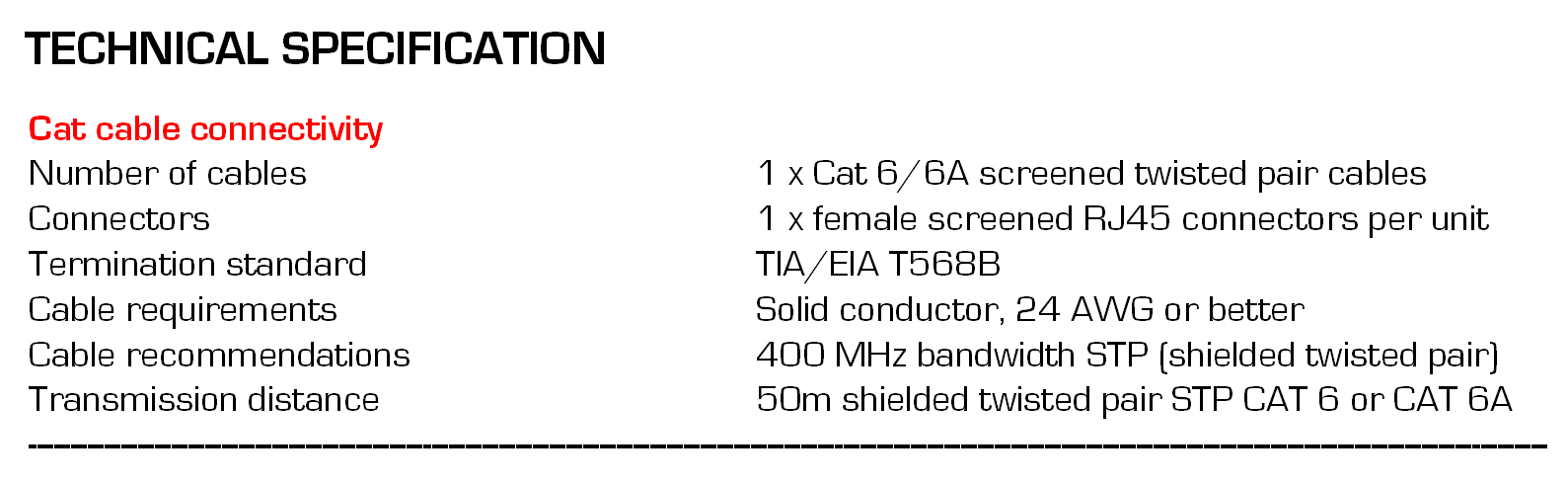

Specification

Downloads

Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.

Description Type Size
Datasheet PDF File  448KB
