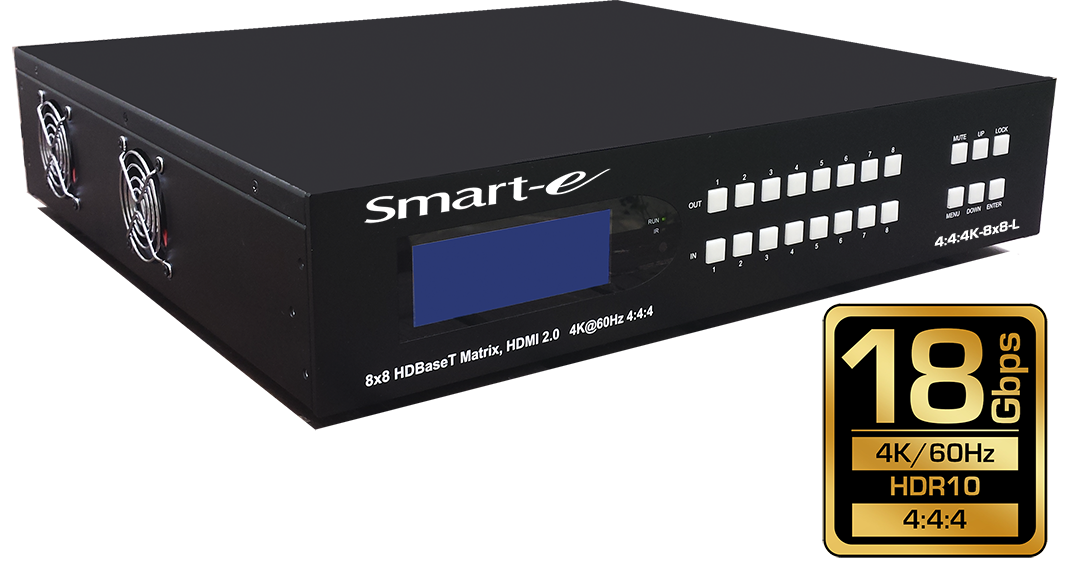

444K-8×8-L

The 444K-8×8-L HDBaseT™ is a 8×8 matrix switcher that supports the transmission of HDMI video (up to 4K/2K@60Hz 4:4:4, 18Gbps, HDCP 2.2) and multi-channel digital audio from 8 HDMI 2.0 sources to 8 HDBaseT™ outputs, all with mirrored HDMI outputs.

Key Features

  • HDBaseT technology
  • HDMI 2.0 4K@60Hz
  • 4:4:4, 18G, HDR10, Dolby Vision
  • HDCP 2.2/1.3 compliant
  • Dual mirrored outputs
  • RS232 & IR routing
  • POC (remote powering recievers)
  • CEC Compliant

The 444K-8×8-L HDBaseT™ is a 8×8 matrix switcher that supports the transmission of HDMI video (up to 4K/2K@60Hz 4:4:4, 18Gbps, HDCP 2.2) and multi-channel digital audio from 8 HDMI 2.0 sources to 8 HDBaseT™ outputs, all with mirrored HDMI outputs.

The matrix switcher has a built-in independent audio matrix switcher with 16 audio outputs (8 audio break outs, 8 HDBaseT™ outputs and mirrored HDMI outputs) and 22 audio inputs (8 HDMI inputs, 8 ARC audio inputs and 6 external audio sources) with volume/mute/delay adjustment. The 444K-8×8-L supports flexible control through front panel buttons, IR remote control, RS-232 or Web GUI.

Features

  • HDBaseT technology
  • HDMI 2.0 4K@60Hz
  • 4:4:4, 18G, HDR10, Dolby Vision
  • HDCP 2.2/1.3 compliant
  • Dual mirrored outputs
  • RS232 & IR routing
  • POC (remote powering receivers)
  • CEC compliant
  • 8x Analog Stereo Audio input
  • 8x Analog De embedded Audio
  • 8x SPDIF De embedded Audio

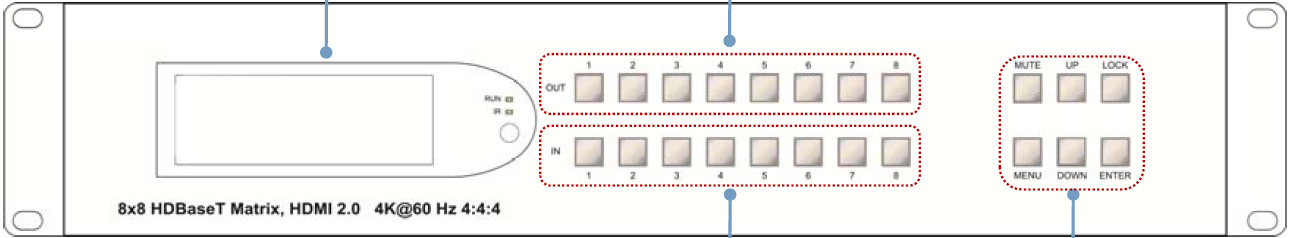

  • Front panel control
  • EDID management
  • 19″ rack mounting
  • RS232 & IR control
  • Ethernet control (Web browser)

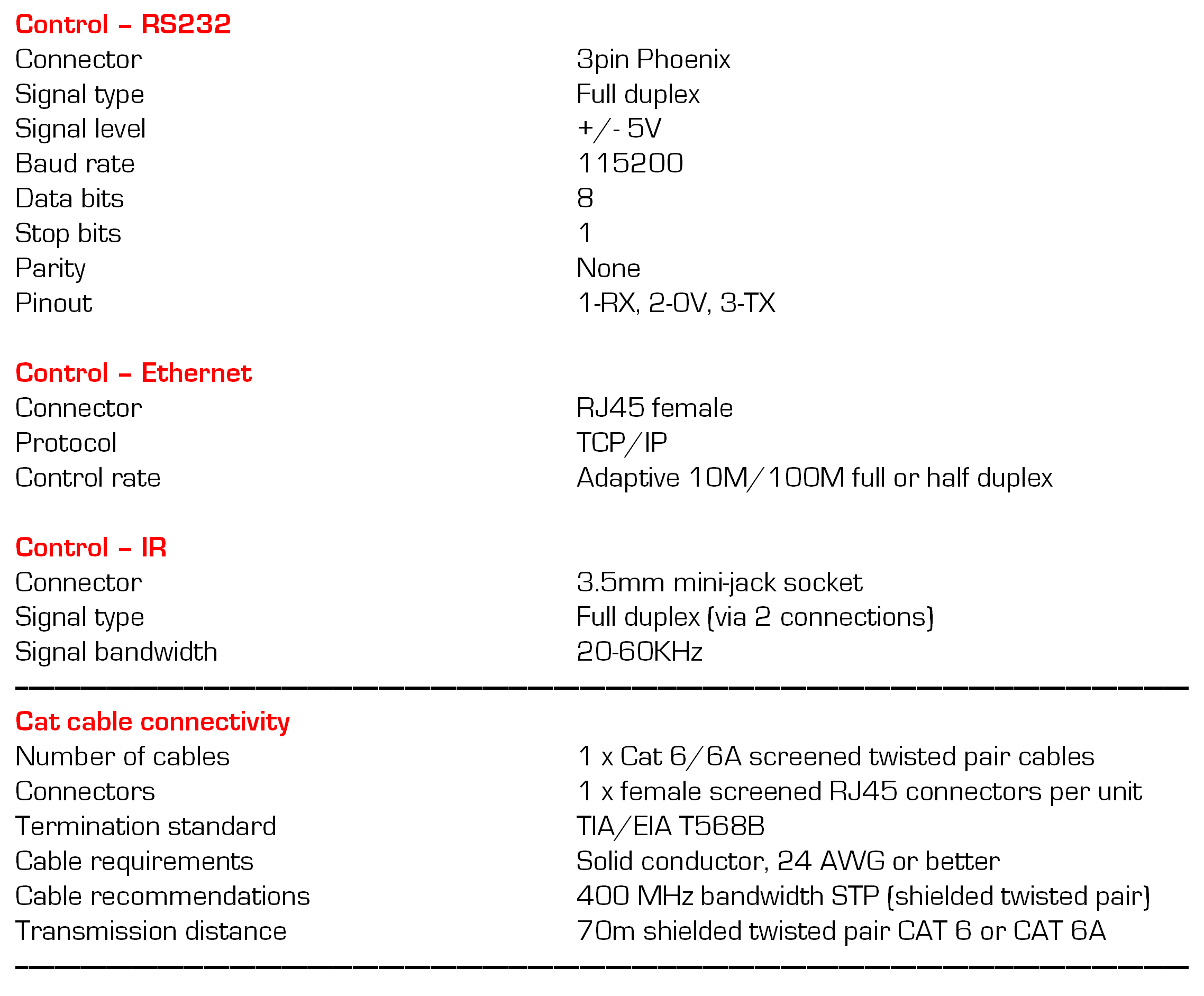

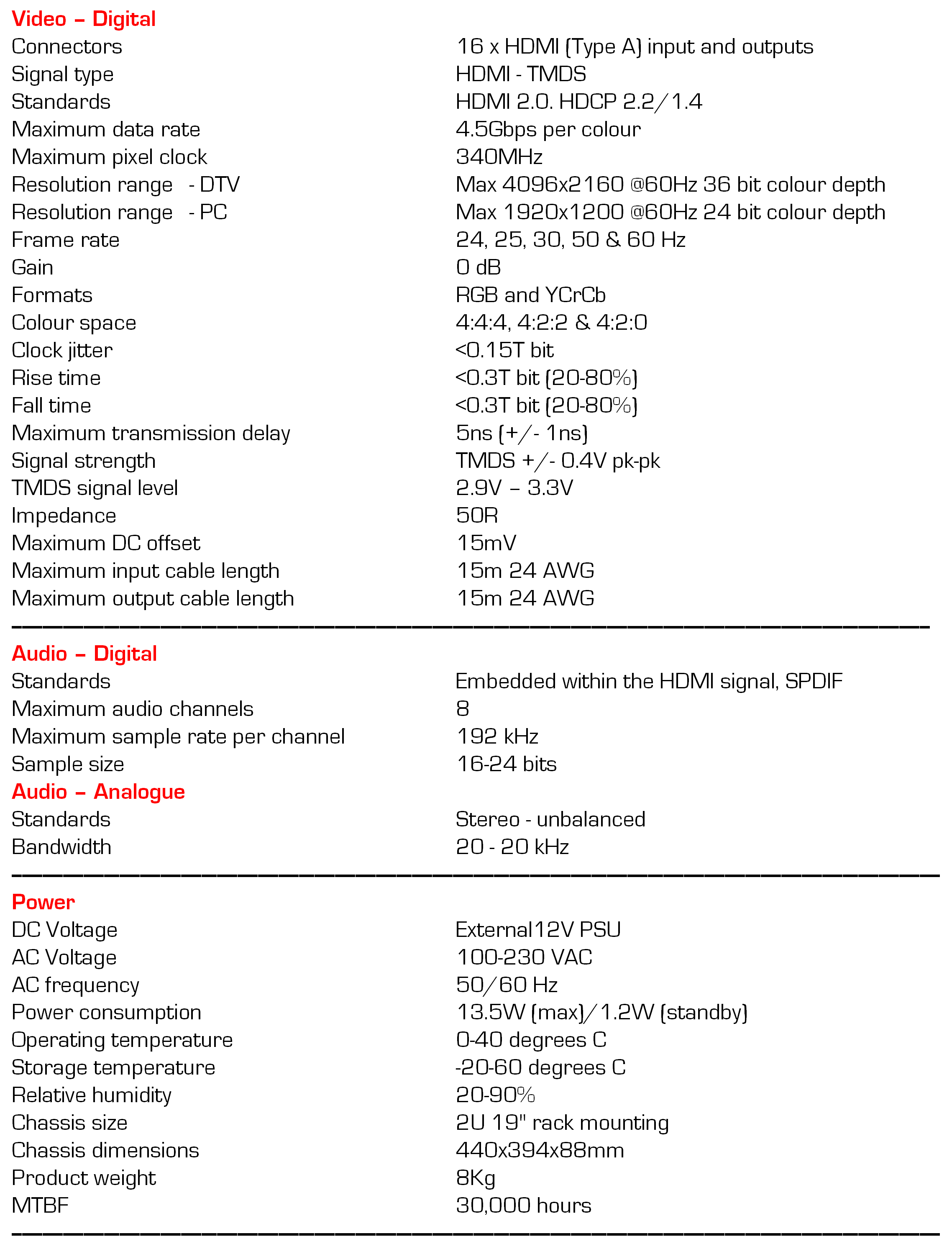

Specification

Downloads

Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.

Description Type Size
Datasheet PDF File 529 KB
Protocol Document PDF File 218 KB

Receivers

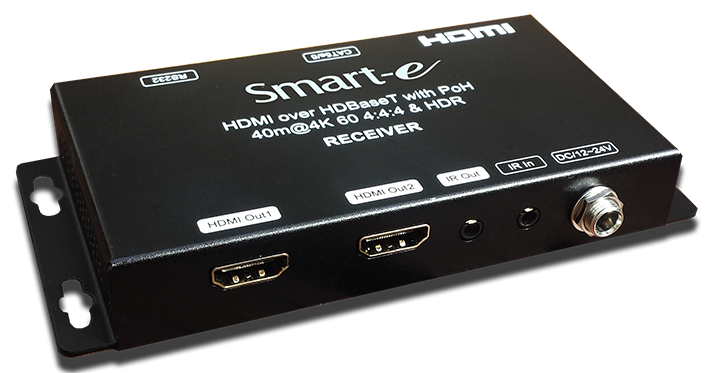

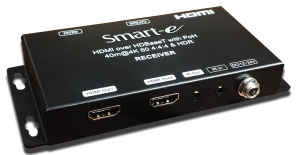

444K-RX750 (70m)

Connector Interface RJ45
Protocol HDBaseT Lite (70m)
EDID Support Pass-through
HDCP Support Pass-through
Resolution (Max) 4K 4096×2160 @ 60Hz
1920×1200 @ 60Hz
Audio Digital Embedded
Max Input Cable Length Up to 70m
Power 24V POC
Dimensions 70 x 65 x 25 (mm)
