SDSC-8×8-RSP

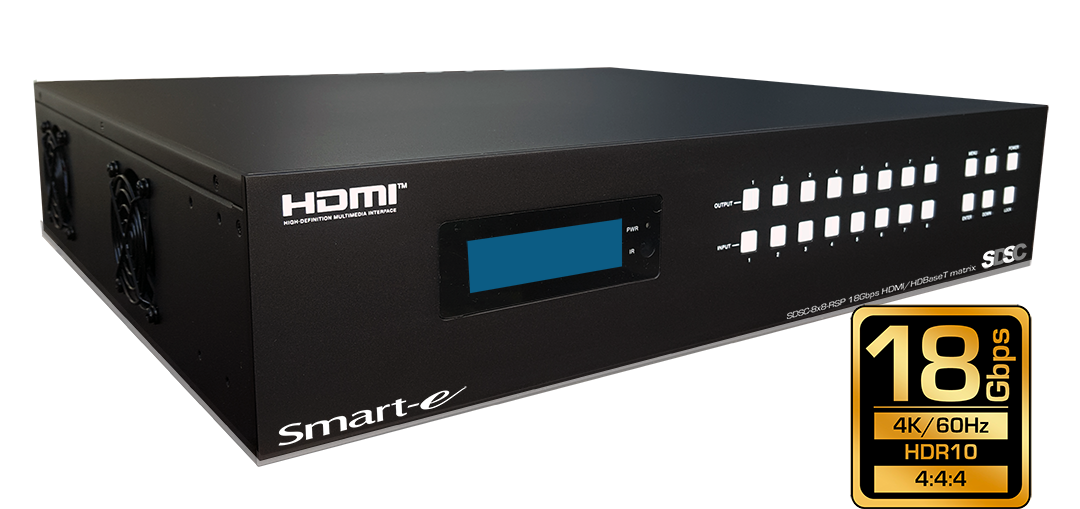

The ~SDSC-8×8-RSP HDBaseT™ is an 8×8 matrix switcher that supports the transmission of 18Gbps HDMI video (up to 4K/2K@60Hz 4:4:4, 18Gbps, HDCP 2.2) and multi-channel digital audio from 8 HDMI 2.0 sources to 8 HDBaseT™ outputs, all with mirrored HDMI outputs.

Key Features

  • 18Gbps HDMI
  • Output scaling 4K>1080p
  • Up to 150m cable distance
  • HDBaseT technology
  • HDMI 2.0 4K@60Hz
  • 4:4:4, 18G, HDR10, Dolby Vision
  • HDCP 2.2/1.3 compliant
  • Dual mirrored outputs
  • RS232 & IR routing
  • POC (remote powering recievers)
  • CEC Compliant

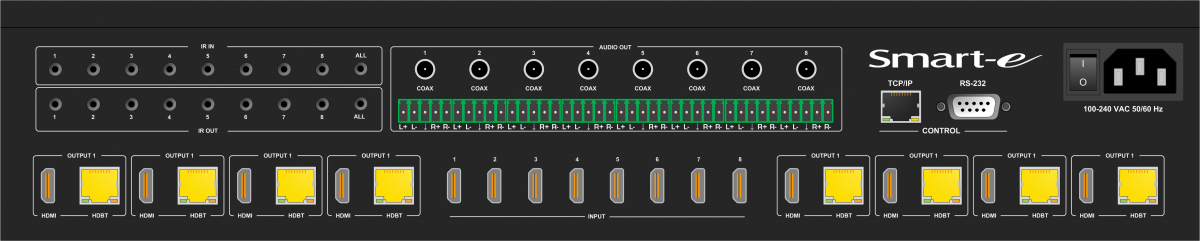

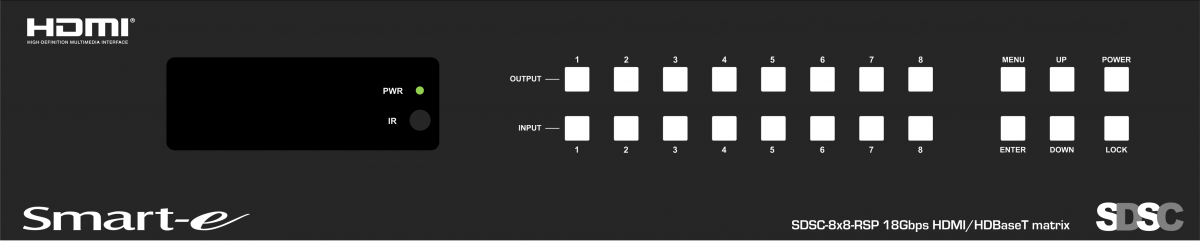

Images

Similar Models

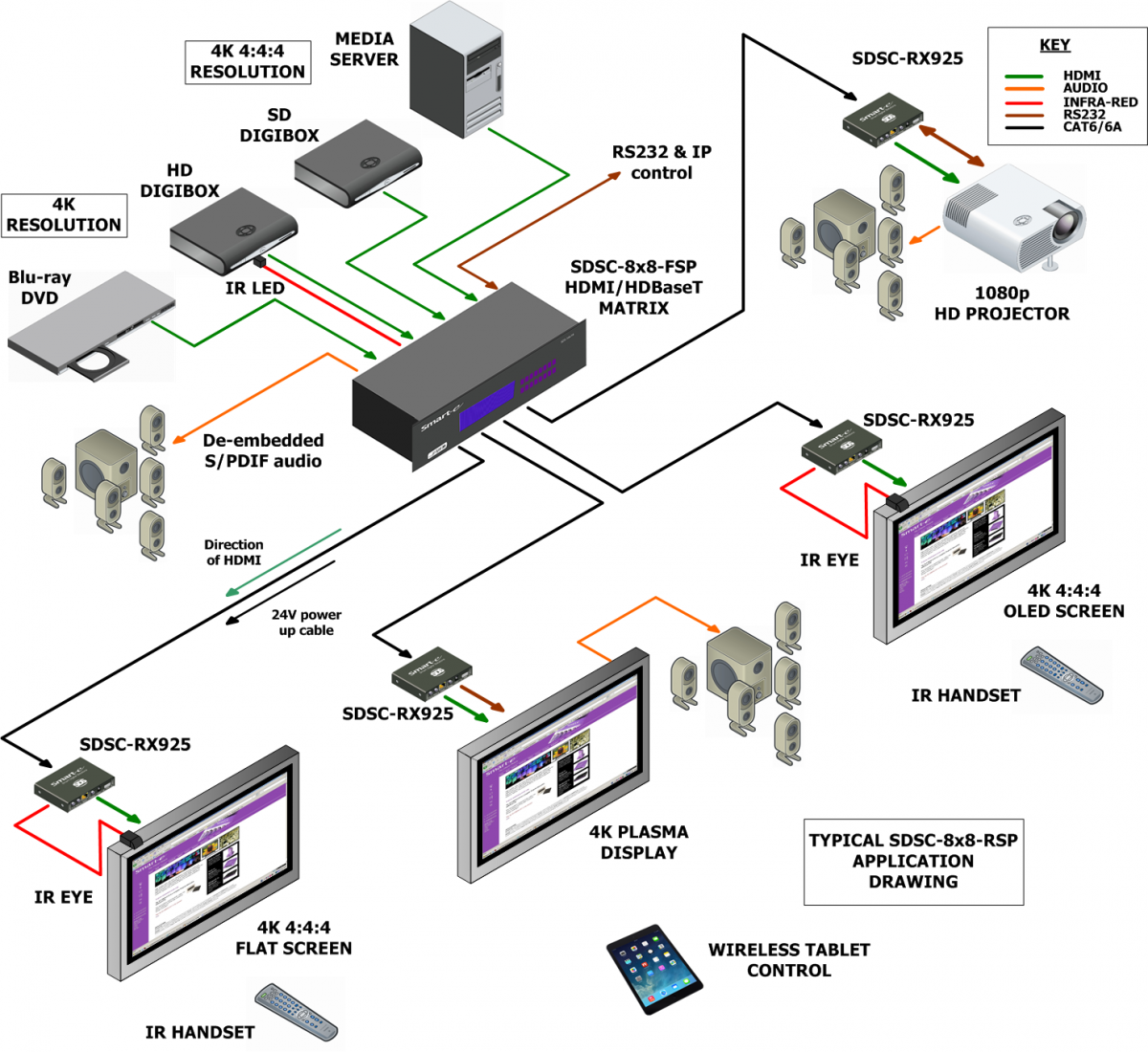

The SDSC-8×8-RSP offers an unprecedented level of both switching and distribution functionality for high resolution HDMI or DVI signals. Displays can be installed using extra long cables: up to 150m for 1080p resolution video and 120m for 4K 18Gbps resolutions. Extension of 18Gbps video is possible by the use of visually lossless compression, Digital Stream compression (DSC). DSC is an international VESA standard providing a low latency, low complexity codec ideal for a 2:1 compression.

The SDSC-8×8-RSP has extensive features including EDID management with presets and learning together with audio de-embedding for analogue and digital signals enhance installation. Each output is mirrored to a HDMI and HDBaseT connection providing simultaneously viewing. Additionally the output can be displayed at the original 4K resolution or down-scaled to 1080p. This feature allows the mix of display types with varying native resolutions maintaining the original quality of the signal where necessary.

The inclusion of Smart-e’s new command protocol allows full control of the matrix, including EDID settings and muting inputs or outputs via RS232. Compact 2U 19” rack mounting chassis makes for ease of installation.

Features

  • 18Gbps HDMI signal compatible
  • Up to 150m cable distance
  • 4K>1080p downscaling per output
  • HDBaseT technology
  • HDMI 2.0 4K@60Hz
  • 4:4:4, 18G, HDR10, Dolby Vision
  • HDCP 2.2/1.3 compliant
  • Dual mirrored outputs
  • RS232 & IR routing
  • POC (remote powering receivers)
  • CEC compliant
  • 8x Analog De-embedded Audio
  • 8x SPDIF De-embedded Audio
  • Front panel control
  • EDID management
  • 19″ rack mounting
  • RS232 & IR control
  • Ethernet control (Web browser)

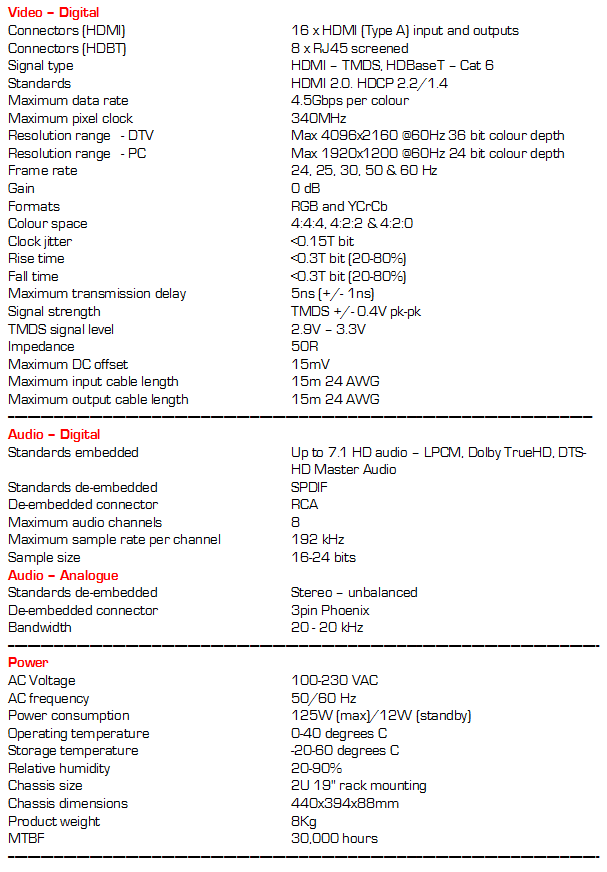

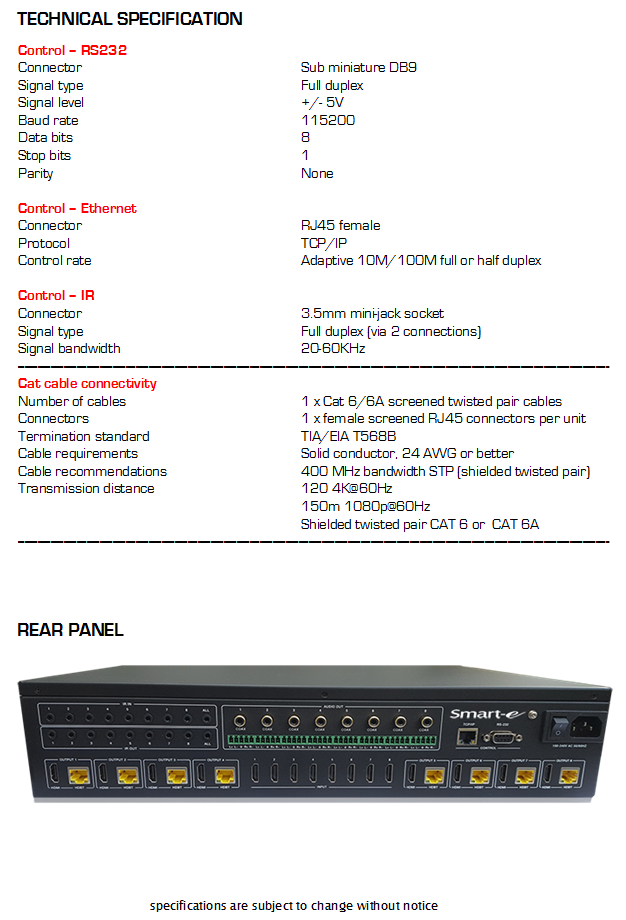

Specification

Downloads

Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.

Description Type Size
Datasheet PDF File 529 KB
Protocol Document  Excel File 62 KB

Receivers

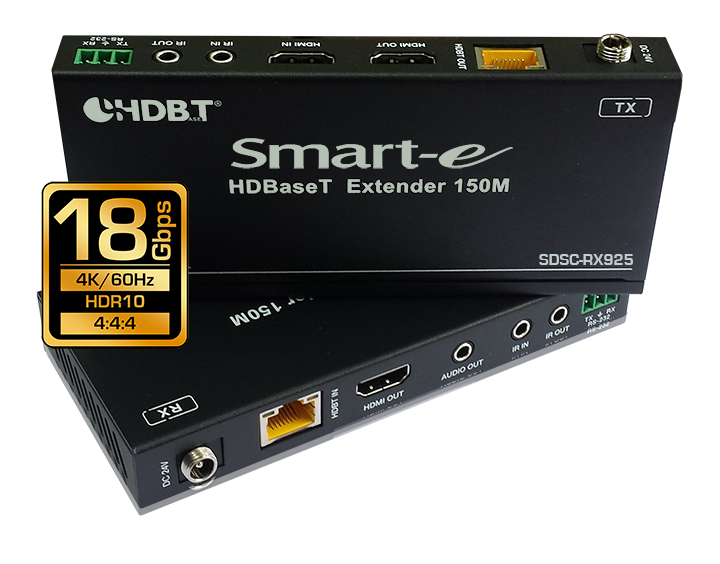

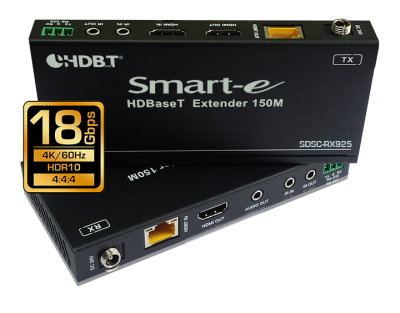

SDSC-RX925 (150m)

Connector Interface RJ45
Protocol HDBaseT (150m)
EDID Support Pass-through
HDCP Support Pass-through
Resolution (Max) 4K 4096×2160 @ 60Hz
1920×1200 @ 60Hz
Audio Digital Embedded
Max Input Cable Length Up to 150m
Power 24V POC
Dimensions 70 x 65 x 25 (mm)
