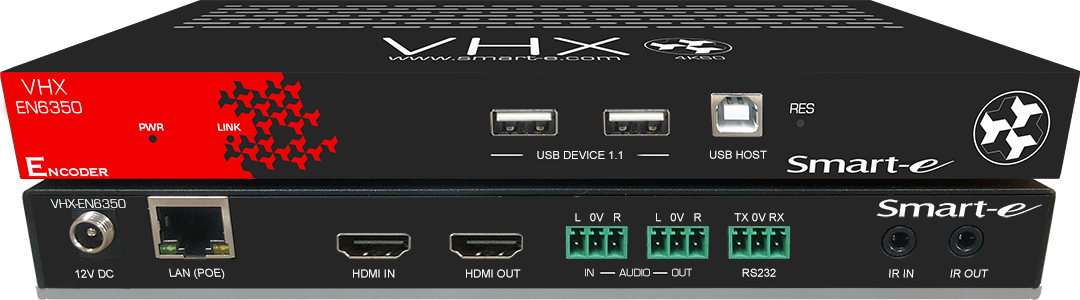

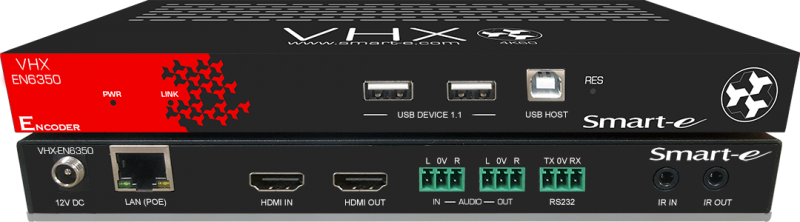

The VHX-EN6350 is a flexible and cost-effective Audio and Video over Internet Protocol (AVoIP) encoder for HDMI, audio, infrared, R232, IR and USB 1.1 signals. The units enable high definition HDMI signals up to 1080p or 1920×1200 resolutions to be transmitted over a 1G Ethernet network with minimal latency and excellent visual quality.

Key Features

  • H.264 & H.265 compression
  • HDMI 1.3 1080p@60Hz
  • 4:4:4, 4.95Gbps
  • HDCP 1.4 compliant
  • USB V1.1
  • Low latency <frame
  • 100M/1G Ethernet
  • Seamless switching
  • Video Wall option

Other Links

Feature highlights


VHX-6000 series

The VHX-EN6350 encoder allows the connected HDMI video to be compressed into 2 independent IP streams. The primary H.265 stream provides a very high quality video and audio transmission with less than a frame duration latency whilst the secondary H.264 stream can be used for monitoring via standard software or third party applications. The VHX-EN6350 can accept HDMI signals up to 1080p or 1920 x 1200 resolutions and up to 60Hz frame rate.

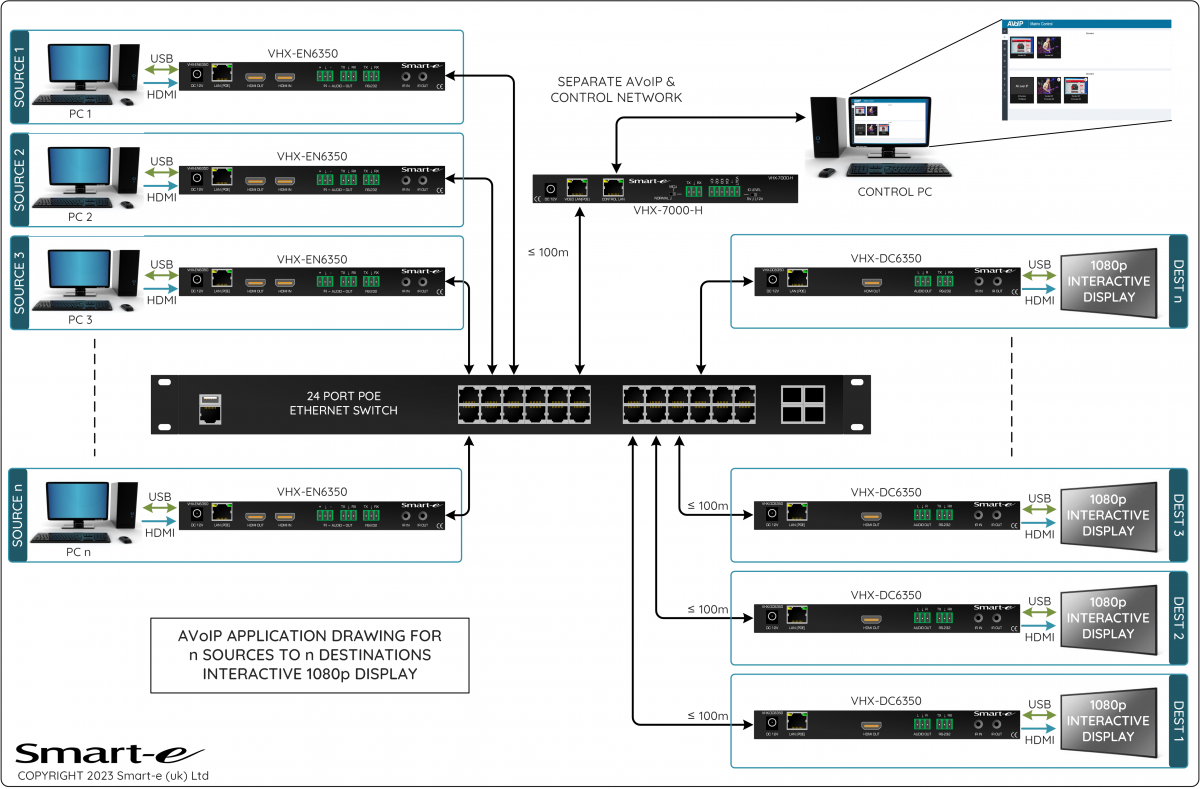

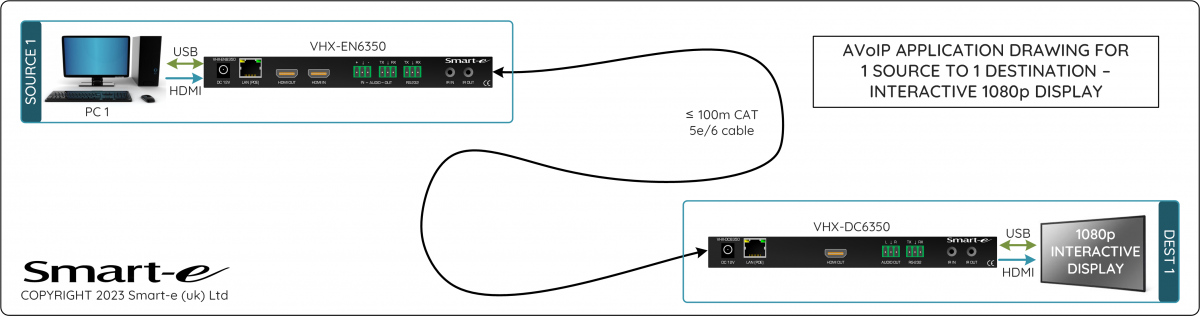

Video streaming is compatible with a standard 1G Ethernet IGMP switcher using the Unicast and Multicast protocols. Point to point, point to multipoint and matrix switching can be achieved easily using industry standard Ethernet switchers and installation enhanced with the POE feature. Switching is fast and seamless giving a professional broadcast experience. A USB host connection allows a connected computer to extend USB V1.1 signals to a VHX-DC6350 decoder which can provide the facility for up to 5 peripherals to be added. Other control signals can also be transmitted over the same network which can be used for RS232, infrared and CEC signals.

The VHX-EN6350 together with the decoder VHX-DC6350 provide a highly scalable and cost-effective solution for distributing HD video and control signals for a multitude of applications. Video walls can also be created with multiple decoders up to a 9×9 system.


  • H.264 & H.265 encoding
  • HDMI 1.3 1080p@60Hz
  • 4:4:4, 4.95Gbps
  • HDCP 1.4 compliant
  • USB V1.1
  • Scalable solution
  • Low latency <frame
  • Video Wall feature
  • Seamless switching
  • Secondary monitoring stream
  • 100M/1G Ethernet
  • Full duplex RS232 pass through
  • Full duplex IR pass through
  • CEC compliant
  • Analogue audio de/embedding
  • Low power <8W
  • Secure DC connection
  • POE 802.3af Class3, PD
  • Slim profile 21.5mm

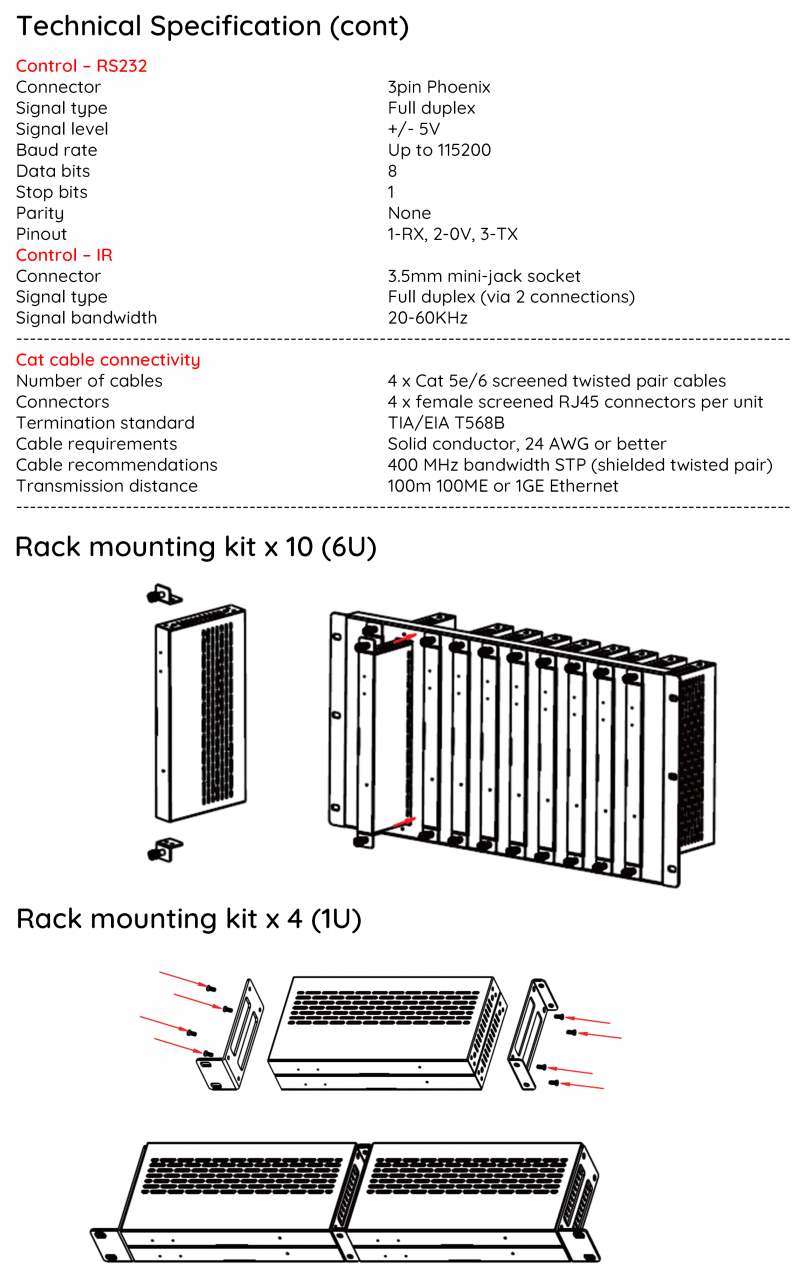

  • Rack mounting kits
