The VHX-DC6350 is a flexible and cost-effective Audio and Video over Internet Protocol (AVoIP) encoder for HDMI, audio, infrared, R232, IR and USB 1.1 signals. The units enable high definition HDMI signals up to 1080p or 1920×1200 resolutions to be transmitted over a 1G Ethernet network with minimal latency and excellent visual quality.

Key Features

  • H.264 & H.265 compression
  • HDMI 1.3 1080p@60Hz
  • 4:4:4, 4.95Gbps
  • HDCP 1.4 compliant
  • USB V1.1
  • Low latency <frame
  • 100M/1G Ethernet
  • Video output scaling
  • Video Wall option

Other Links

Feature highlights


VHX-6000 series

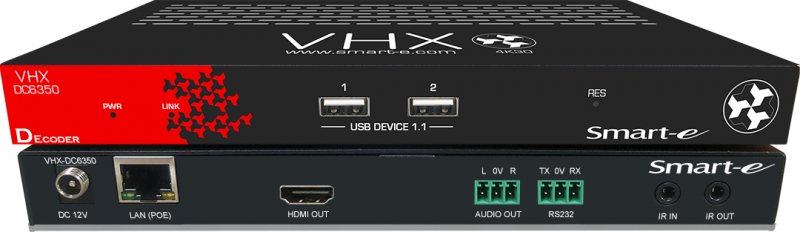

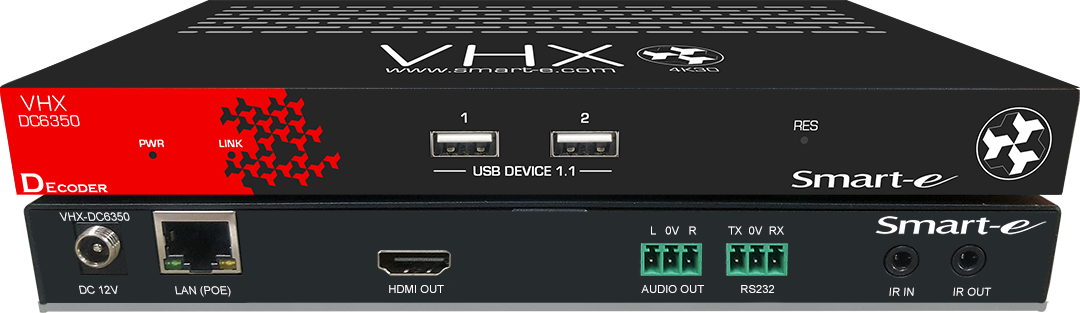

The VHX-DC6350 decoder provides the interface and conversion between the IP stream present on the Ethernet network and the HDMI and control signal outputs. The VHX-DC6350 is able to convert the compressed H.265/264 stream back to the original HDMI signal and output it as a 1080p resolution video up to 60Hz frame rate. The unit also has an output scaler enabling the video to be adjusted to the native resolution of the connected display.

Video streaming is compatible with a standard 1G Ethernet IGMP switcher using the Unicast and Multicast protocols. Point to point, point to multipoint and matrix switching can be achieved easily using industry standard Ethernet switchers and installation enhanced with the POE feature. Switching is fast and seamless giving a professional broadcast experience. A USB host connection to the VHX-EN6350 encoder allows a computer to extend USB V1.1 signals to a VHX-DC6350 decoder which can provide the facility for up to 5 peripherals to be added. Other control signals can also be transmitted over the same network which can be used for RS232, infrared and CEC signals.

The VHX-DC6350 together with the encoder VHX-EN6350 provide a highly scalable and cost-effective solution for distributing HD video and control signals for a multitude of applications. Video walls can also be created with multiple decoders up to a 9×9 system.


  • H.264 & H.265 encoding
  • HDMI 1.3 1080p@60Hz
  • 4:4:4, 4.95Gbps
  • HDCP 1.4 compliant
  • USB V1.1
  • Scalable solution
  • Low latency <frame
  • Video Wall feature
  • Video output scaling
  • Seamless switching
  • 100M/1G Ethernet
  • Full duplex RS232 pass through
  • Full duplex IR pass through
  • CEC compliant
  • Analogue audio de/embedding
  • Low power <8W
  • Secure DC connection
  • POE 802.3af Class3, PD
  • Slim profile 21.5mm
  • Rack mounting kits



Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.

Description Type Size
VHX-6350 Encoder/Decoder Datasheet PDF File 1400KB
VHX-6350 AVoIP User Manual PDF File 1600KB
