4K-4×4-L

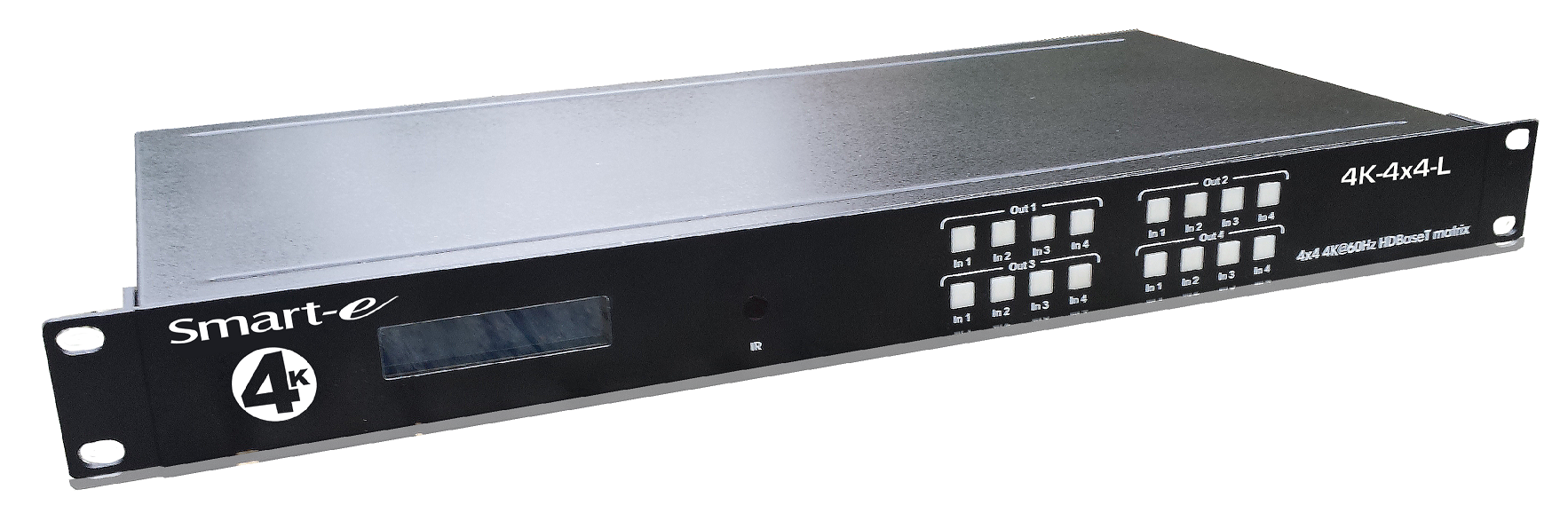

The 4K-4×4-L is a Flexible and comprehensive professional HDMI /HDBaseT matrix with CAT 6 distribution system for Commercial, Education and Residential use.
Key Features
- HDMI 2.0
- HDCP 2.2 compliant
- IR control and pass-through
- HDMI inputs with CAT 6/6A STP outputs
- Resolutions up to 4K @60Hz 4:2:0
- 1080p and 3D compatible

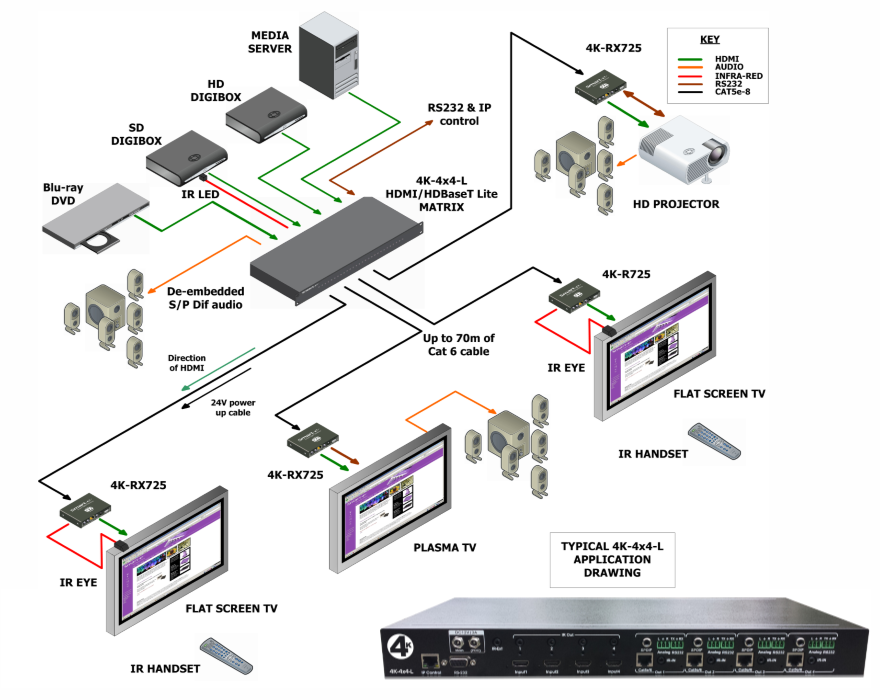

The Smart Digital Solutions 4K-4×4-L is a professional flexible HDBaseT matrix capable of selecting between 4 different HDMI devices for 4 HDMI displays located up to 70m from the unit. Flexible control options include front panel, infra-red, RS232 and IP.
The 4K-4×4-L offers an unprecendented level of both switching and distrubution functionality for high resolution HDMI, DVI or DisplayPort signals. By combining a high band-width digital matrix with signal distrubution over a single CAT 6/6A cable all in one unit, Smart-e sets a new benchmark for complete integrated AV solutions, all of which can be controlled easily via either IP, Infra-Red and RS232.
Extensive features include: IR pass-through together with unique ‘plasma-friendly’ eyes provide a reliable and cost effective control of source devices.
The inclusion of Smart-e’s new command protocol allows full control of the matrix, including EDID settings and muting inputs or outputs via RS232. Compact 1U 19″ rack mounting chassis makes for ease of installation with optional upgrade to SmartiP (extra 1U).
Features
- HDMI 2.0
- HDCP 2.2 compliant
- IR control and pass-through
- HDMI inputs with CAT 6/6A STP outputs
- Resolutions up to 4K @60Hz 4:2:0
- 1080p and 3D compatible
- EDID management
- Supports Deep Colour (10 & 12 bit)
- RS232 conrtol
- From panel display and control
- IP control and integral Web Browser
- Compact 1U 19″ rack mounting
- Up to 70 metres of CAT 6/6A cable
- 3 year warranty
- De-embedded S/P DIF on O/P
- IR control of the displays
- RS232 control of the displays
- De-embedded analogue audio on O/P

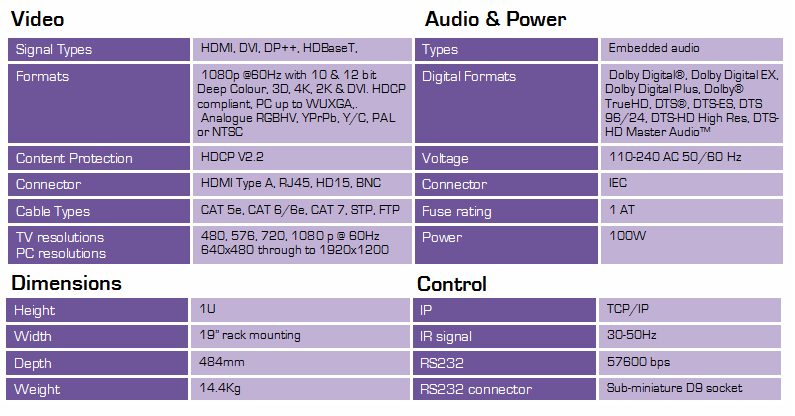

Specification
Downloads
Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.
| Description | Type | Size |
|---|---|---|
| Datasheet | PDF File | 2,300 KB |
| Protocol Document | PDF File | 3,740 KB |
Receivers
4K-RX725 (70m)
| Connector Interface | RJ45 |
| Protocol | HDBaseT Lite (70m) |
| EDID Support | Pass-through |
| HDCP Support | Pass-through |
| Resolution (Max) | 4K 4096×2160 @ 30Hz 1920×1200 @ 60Hz |
| Audio | Digital Embedded |
| Max Input Cable Length | Up to 70m |
| Power | 12/24V POH |
| Dimensions | 115 x 65 x 16 (mm) |
Accessories
SM-EYEN
Narrow Band Infra-Red receiver eye for 38 KHz modulated signal. Good noise rejection, range 8-10 metres
SM-LED
Infra-Red emitter to remote control of source devices. This unit is compatible with all Smart-e products.
