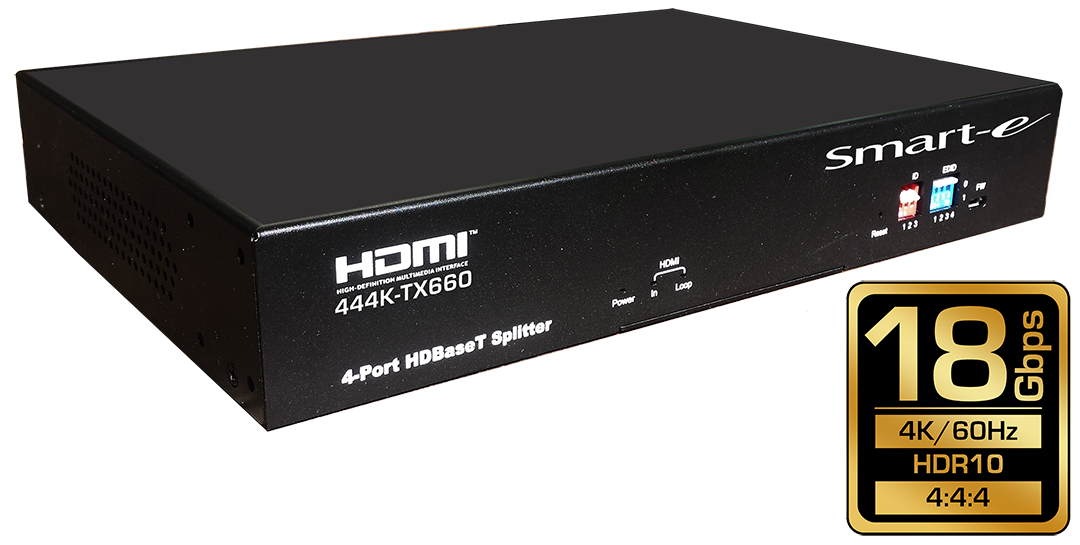

444K-TX660
The Smart-e 444K-TX660 is a 1 in and 4 out HDBaseT splitter with RS232 pass-through capable of transmitting 4K UHD signal over 70m of structured cabling (using the appropriate receiver)
Key Features
- Ultra HD 2K and 4K, 1080p resolutions
- HDCP 2.2 compliant, HDMI V1.4
- Supports 1920×1200 @ 60 Hz
- 1– 4 HDBaseT splitter
- 70m Cat6 extension—HDBaseT
- 4K@60Hz colour space 4:4:4
- Looping HDMi input
The 444K-TX660 is a self contained HDBaseT splitter capable of transmitting HDMI signals up to 4K UHD resolutions over 70m of Cat 6 cable.

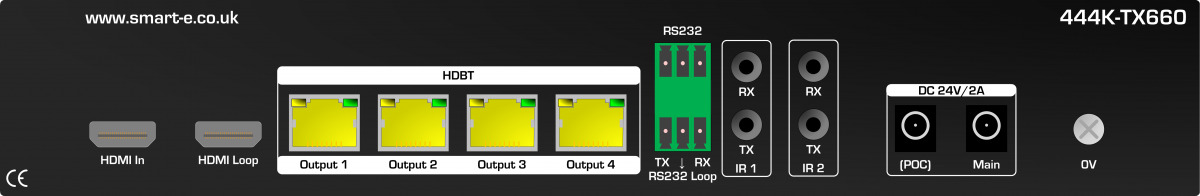

A single HDMI input can be connected to the rear of the unit where it gets split internally and then fed to 4 separate HDBaseT outputs. Each receiver (444K-RX875) decodes the HDBaseT protocol back to HDMI and RS232. Power is provided from the transmitter through the same Cat cable so there is no need for bulky PSUs at the display end. A secure lockable DC connector on the splitter provides a reliable power connection.
Each HDBaseT connection also allows for RS232 signals to be received back from the receiver enabling remote control of the source device. Fully HDCP 2.2 compliant this 444K-TX660 compact unit is ideal for digital signage use in Education, Entertainment and Retail Market.
Features
- Ultra HD 2K and 4K, 1080p resolutions
- HDCP 2.2 compliant, HDMI V1.4
- Supports 1920×1200 @ 60 Hz
- 1– 4 HDBaseT splitter
- 70m Cat6 extension—HDBaseT
- 4K@60Hz colour space 4:4:4
- Looping HDMI input
- RS232 pass-through
- Dolby TrueHD, DTS-HD Master Audio
- Total 18 Gbits/s data rate
- Remote powers the receivers (POC)
- Lockable DC connector
- EDID management
- IR passthrough

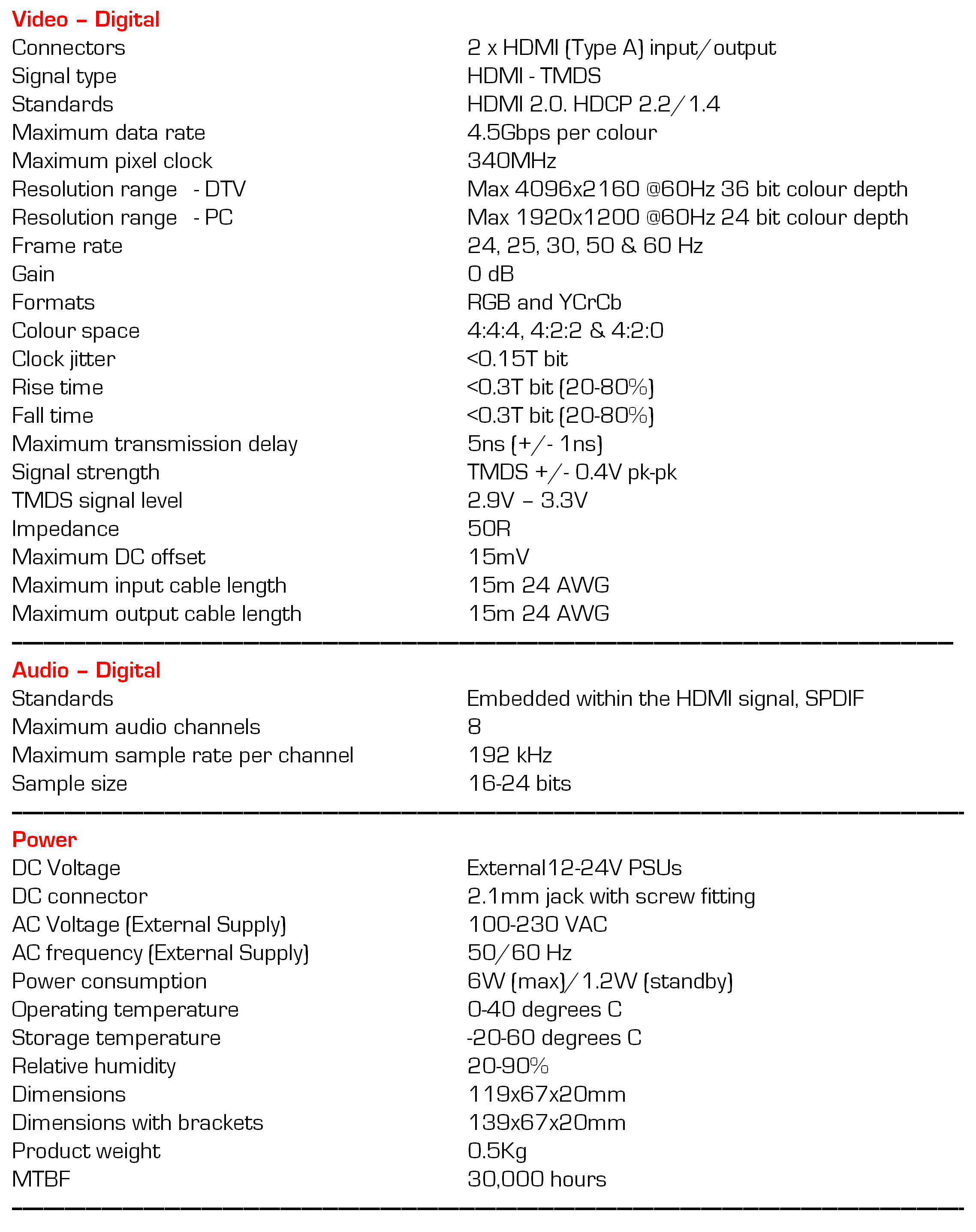

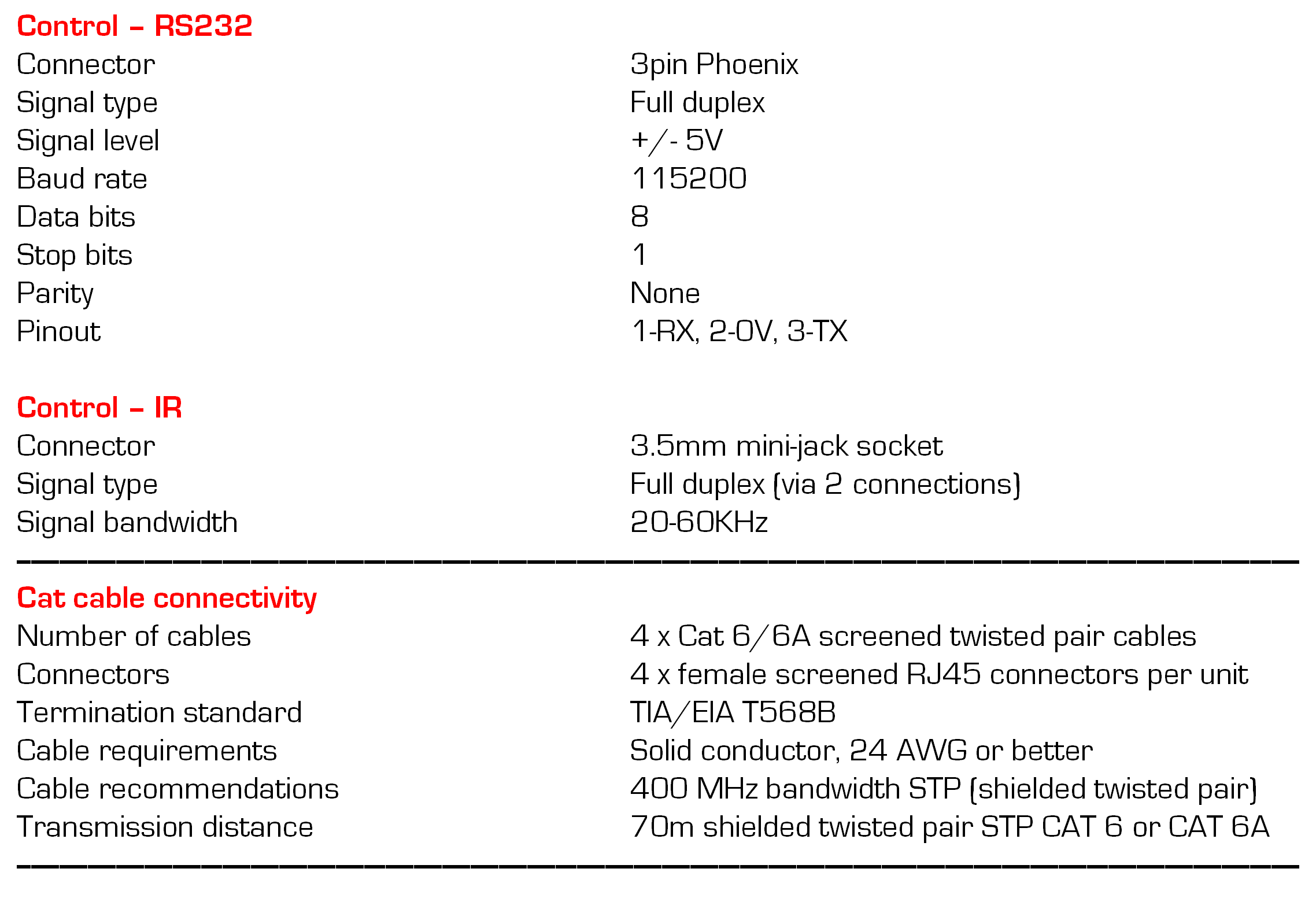

Specification
Downloads
Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.
Description | Type | Size |
---|---|---|
Datasheet | PDF File | 529 KB |
