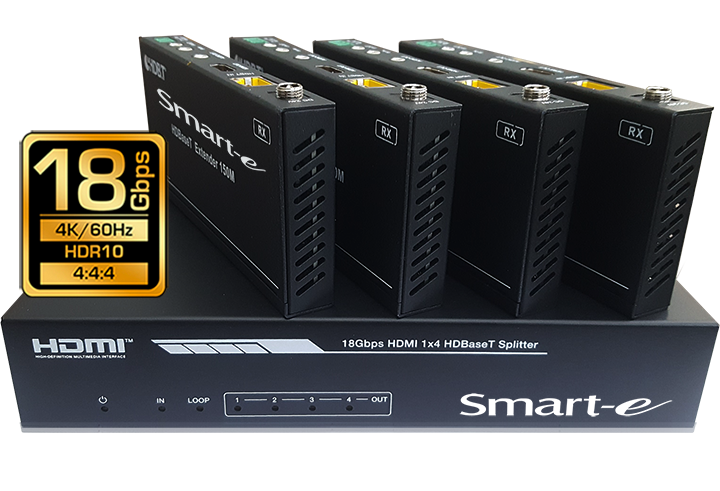

SDSC-1150

The Smart Digital Solutions SDSC-TX1150 is a 1 in and 4 out HDBaseT splitter capable of transmitting 1080p/4K UHD signal over 150/120m of structured cabling to 4 remote displays. Additional features include RS232 and Infrared pass-through together with local audio output.

Key Features

  • HDBaseT technology
  • HDMI 2.0 4K@60Hz, 4:4:4, 18Gbps
  • HDR 10, HDR10+, Dolby Vision, HLG
  • HDCP 2.2/1.3 compliant
  • 1– 4 HDBaseT splitter
  • 150m Cat6 extension—HDBaseT
  • Looping HDMI input

The Smart Digital Solutions SDSC-TX1150 is a 1 in and 4 out HDBaseT splitter capable of transmitting 1080p/4K UHD signal over 150/120m of structured cabling to 4 remote displays. Additional features include RS232 and Infrared pass-through together with local audio output. A looping HDMI input also allows multiple units to be cascaded together for installations larger than 4 displays. Extension of 18Gbps video is possible by the use of visually lossless compression, Digital Stream compression (DSC). DSC is an international VESA standard providing a low latency, low complexity codec ideal for a 2:1 compression.

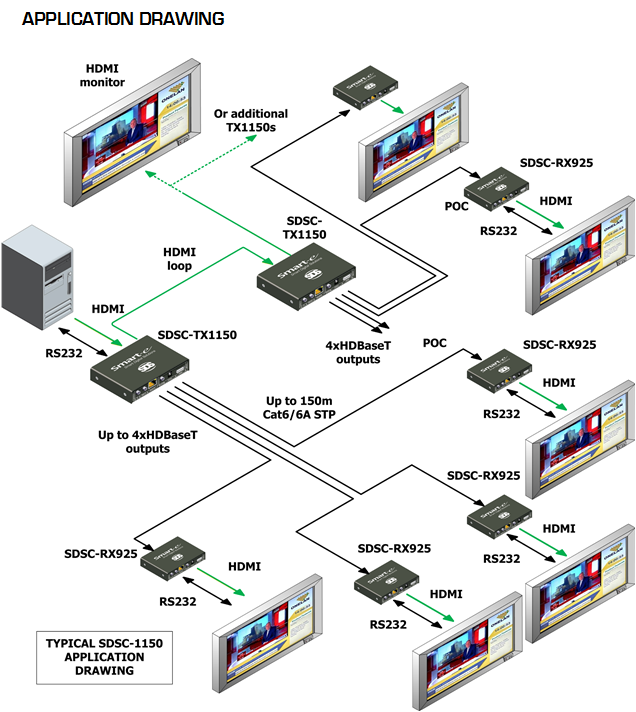

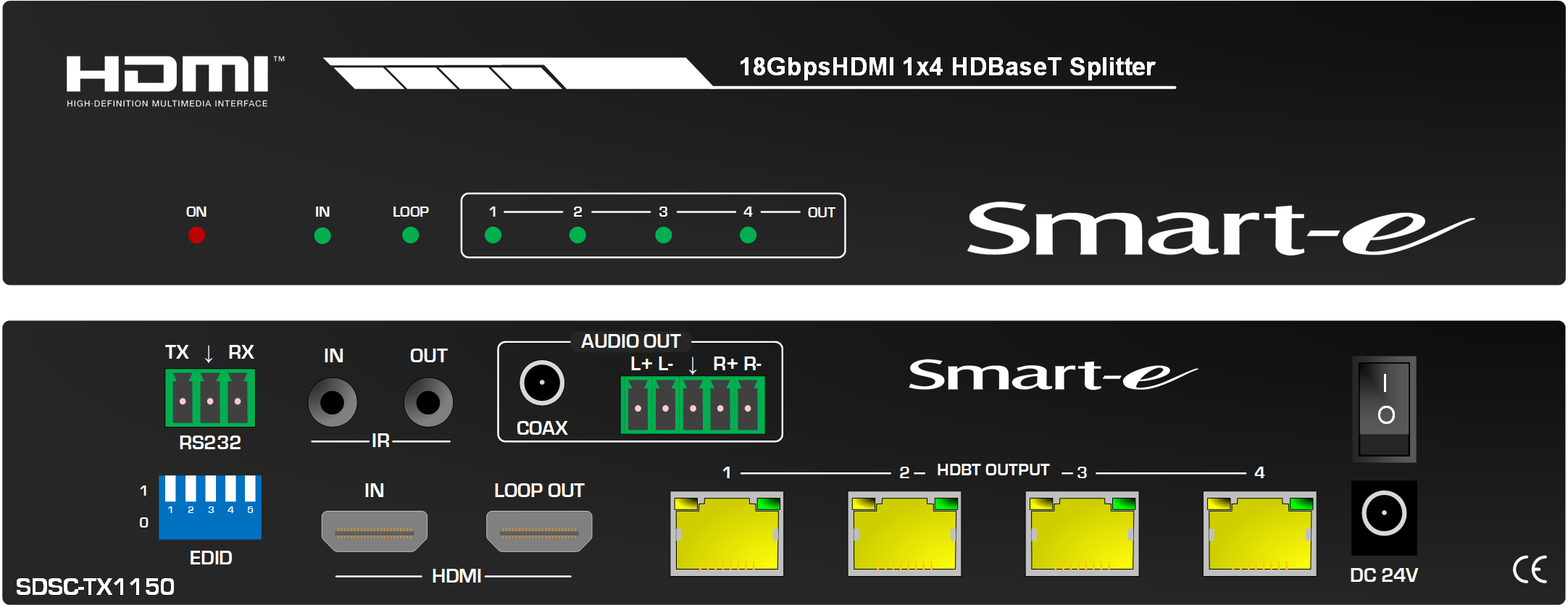

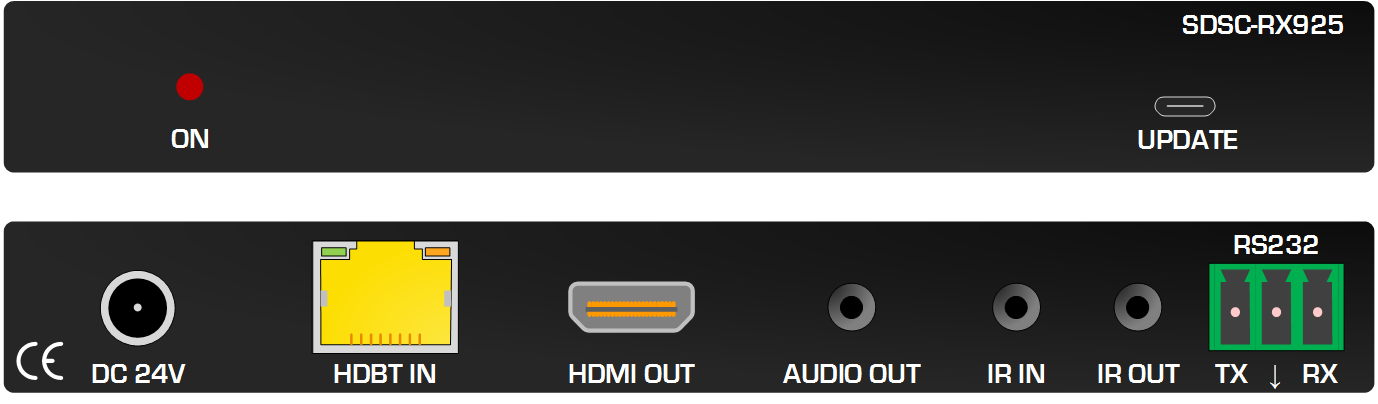

The SDSC-TX1150 has a single HDMI input which can be connected at the rear of the unit where it gets split internally and then fed to 4 separate HDBaseT outputs. Each receiver (SDSC-RX925) decodes the HDBaseT protocol back to HDMI and IR/RS232. Power is provided from the transmitter through the same Cat cable so there is no need for bulky PSUs at the display end. A secure lockable DC connector on the splitter provides a reliable power connection. A local audio output is available on the transmitter together with an audio output on each receiver allows for various sound requirements.

Each HDBaseT connection also allows for RS232 signals to be received back from the receiver enabling remote control of the source device. Fully HDCP 2.2 compliant this SDSC-TX1150 compact unit is ideal for digital signage use in Education, Entertainment and Retail Market.

Features

  • HDBaseT technology
  • HDMI 2.0 4K@60Hz, 4:4:4, 18Gbps
  • HDR 10, HDR10+, Dolby Vision, HLG
  • HDCP 2.2/1.3 compliant
  • 1– 4 HDBaseT splitter
  • 150m Cat6 extension—HDBaseT
  • Looping HDMI input
  • RS232 pass-through
  • Dolby TrueHD, DTS-HD Master Audio
  • Local audio output
  • Remote powers the receivers (POC)
  • Lockable DC connector
  • EDID management
  • IR passthrough

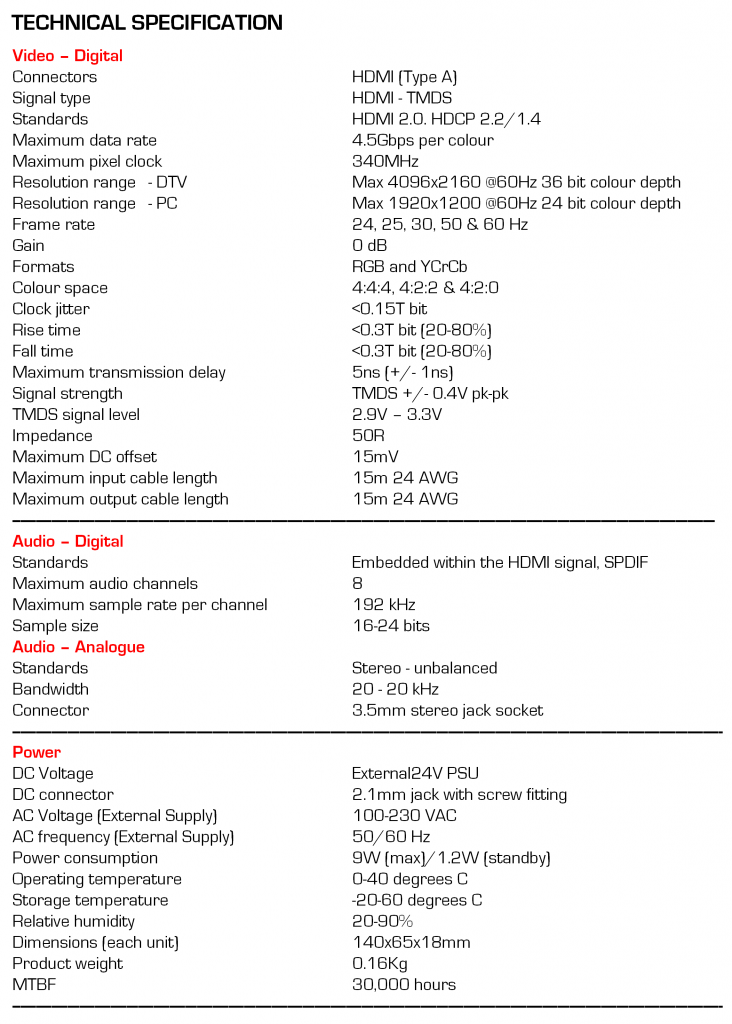

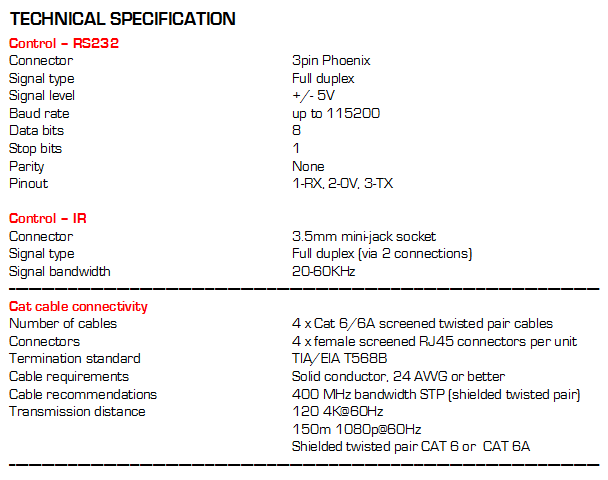

Specification

Downloads

Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.



Description Type Size
Datasheet PDF File 1,278KB
