The 444K-925 is ideal for extending any HDMI signal beyond its standard 5m length to an impressive 150m of Cat cable whilst maintaning all the necessary auxillary communication data like CEC and DDC for correct EDID reading and HDCP. The 444K-925 has extra features to make life easier for the installer: integral looping HDMI inputs at the transmitter and de-embedded audio at the receiver minimise the need for additional products

Key Features

  • Extra long range extender – 150m
  • Single Cat 6 cable
  • HDMI 2.0 4K@60Hz
  • 4:4:4, 18G, HDR10, Dolby Vision
  • HDCP/EDID/DDC transparent link
  • HDBaseT technology
  • POC from either end (remote power)

The 444K-925 is a flexible and cost effective HDBaseT pair solution for extending HDMI, bi-directional IR, full duplex RS232 together with POC (remote power over cable). The unit is very compact and comes with the IR accessories. By incorporating an extended HDBaseT technology, 4K UHD HDMI signals can be transmitted up to 120m and 1080p @60Hz video up to 150m using CAT 6/6A STP/FTP.

The 444K-925 is a pair of TX/RX HDBaseT extenders capable of transmitting UHD HDMI signals up to 4K UHD resolutions. Implementing a special extended version of the HDBaseT specification, the extender also provides the pass through of wide band bi-directional InfraRed signals and full duplex RS232 up to 115Kbaud. Whilst POC power (24V) can be sent by either the TX or RX through the Cat 6 cable to provide power to the remote end. All that is required is a single Cat 6 cable connection to provide all these features.

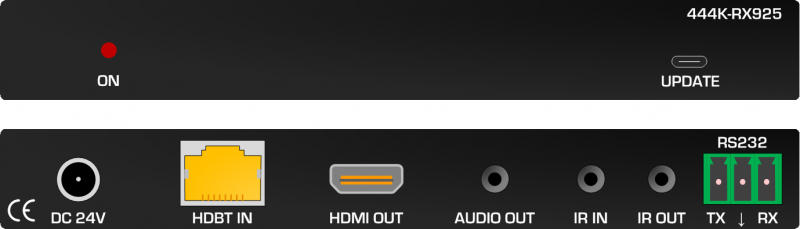

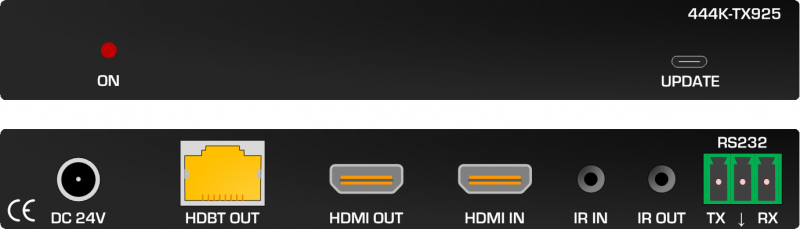

The 444K-TX925 transmitter comes with looping HDMI inputs providing a convenient method of connecting a local monitor or cascading to another transmitter. Whilst the 444K-RX925 receiver has an analogue stereo audio output replicating the de-embedded audio from the HDMI signal.

Both units are very compact having a height of only 18mm helping hide the units in confined spaces. Each box also has integral mounting feet for desktop use and the ability to fix right-angled brackets allowing ease of installation.


  • Compact slim profile Tx/RX units
  • Uses easy to install, inexpensive cable
  • Single CAT 6/6A STP
  • Cable length of 150m for 1080p@60Hz
  • Cable length of 120m for 4K/2K
  • Supports HDMI 2.0 4K@60Hz
  • HDCP/EDID/DDC transparent link
  • HDMI resolutions 4:4:4, 18G, HDR10
  • HDCP 2.2/1.3 compliant
  • Looping HDMI input for transmitter
  • De-embedded audio output on receiver
  • Remote power from ether end (POC)
  • Bi-directional RS232/IR pass through
  • Secure DC connection
  • Plug and play



Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.

Description Type Size
Datasheet PDF File 807 KB
