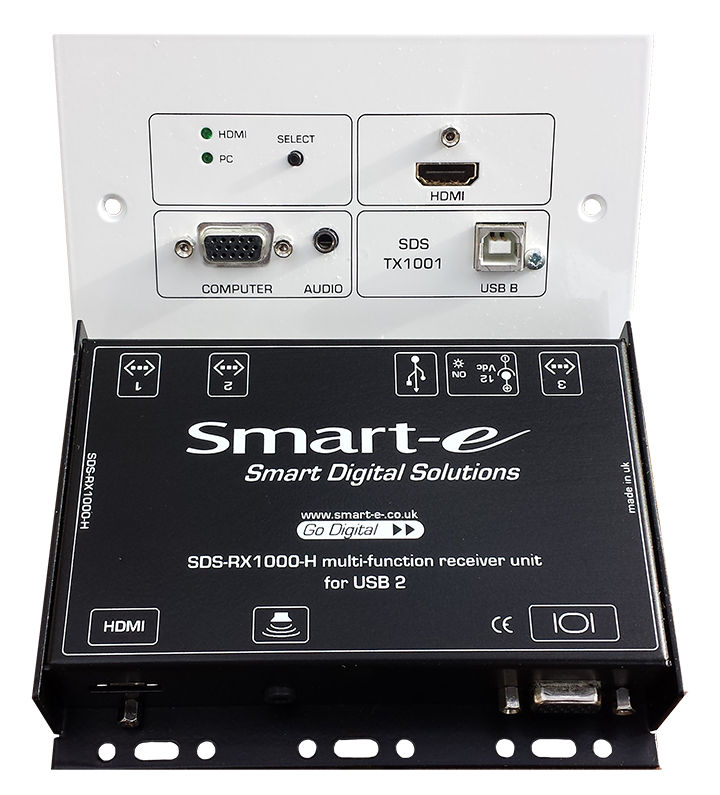

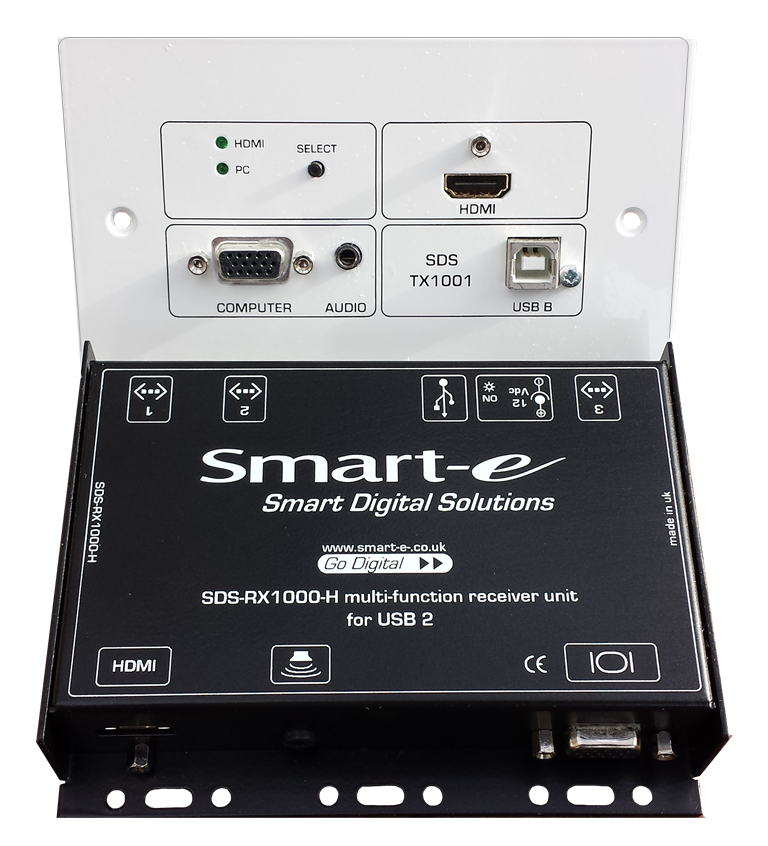

The SDS-1001-H is a flexible and cost effective solution to extending HDMI, RGBHV, stereo audio and USB.

Key Features

  • Interactive Panel compatibility
  • Supports USB V2.0
  • Support HDMI 1080p @60Hz
  • HDCP/EDID/DDC transparent link
  • RGBHV resolutions up to UXGA
  • Stereo audio
  • Output reach up to 30m

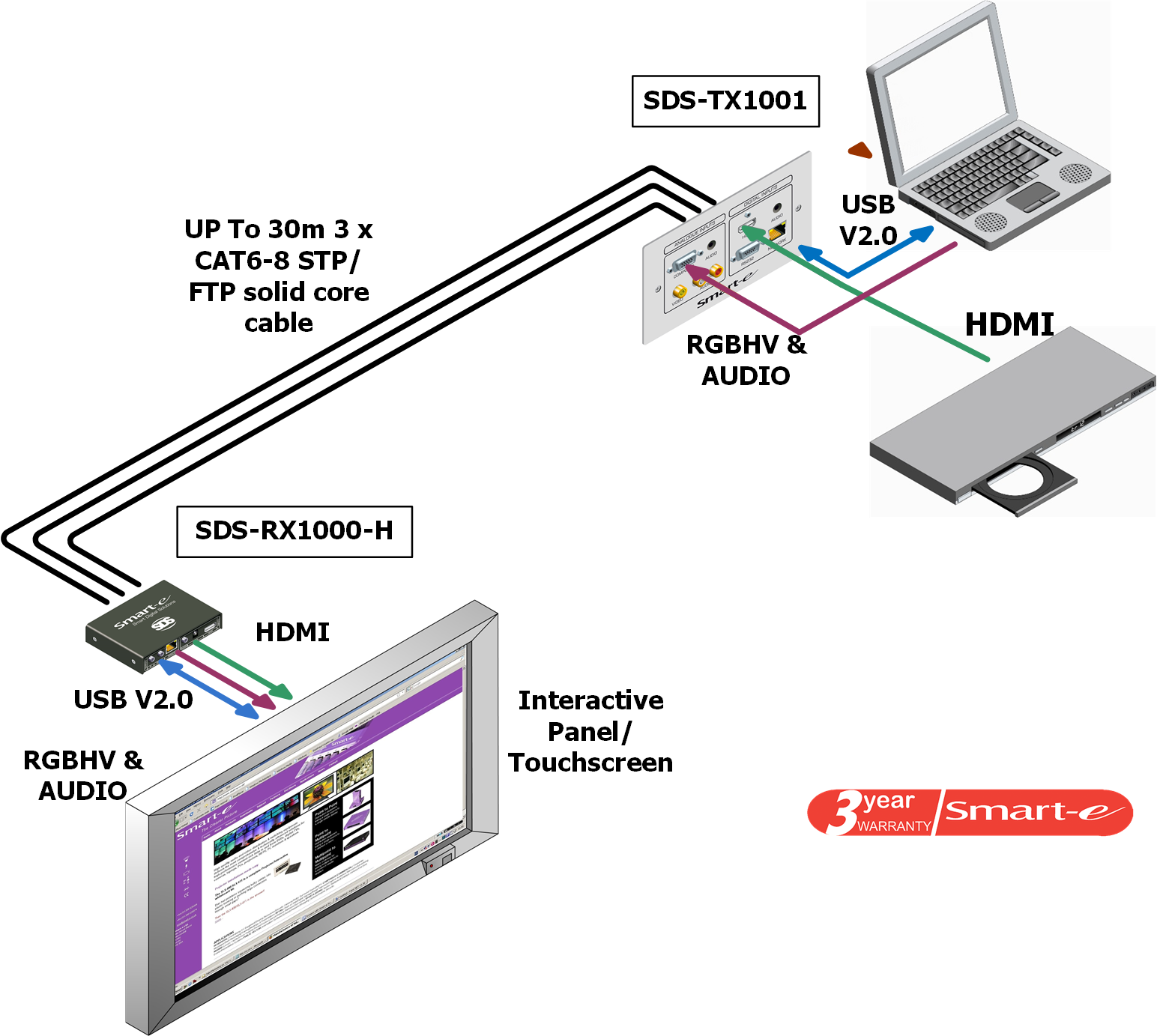

The SDS-1001-H is a versatile unit designed to extend video and control signals from a PC to an interactive panel located up to 30m away. Interactive education systems are the future of classrooms and will replace existing projectors, projection screens and interactive whiteboards. They have higher specification features and are providing great opportunities for collaboration in a variety of teaching functions.

The SDS-1001-H uses standard CAT 6/6A STP/FTP cable which is flexible, narrow in diameter and low cost. The cables can fit into small trunking and can be terminated easily with standard RJ45 connectors. The system can transmit a mix of signal types simultaneously, consistent with installing an Interactive Touch Screen, plasma, LCD or projector in Boardrooms, lecture halls and classrooms. The system requires 3 x CAT 6/6A STP/FTP cables and can extend the signals up to a distance of 30m.

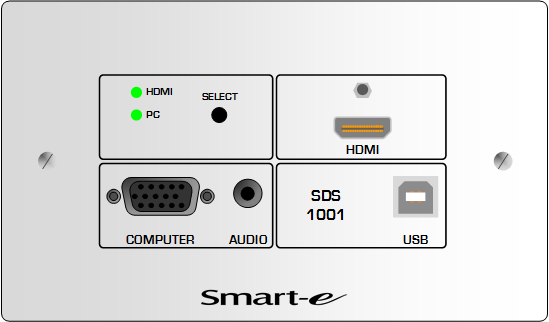

The SDS-1001-H transmits HDMI signals up to 1080p @60Hz, computer resolutions up to UXGA (1600×1200), stereo audio and has USB V2.0 connectivity. Selection of the signal type can be via the Auto sense feature or button control on the wall plate.


  • Supports USB V2.0
  • Uses easy to install, inexpensive CAT 6/6A cable
  • Outputs reach up to 30m
  • Support HDMI up to 1.65 Gbps
  • HDCP/EDID/DDC transparent link
  • HDMI resolutions 1080p @60Hz, 3D
  • Compatible with interactive panels
  • RGBHV resolutions up to UXGA
  • 12Mbps full speed
  • 3 x CAT 6/6A STP/FTP cables
  • Supplies remote power to wall plate
  • Button control & auto sense

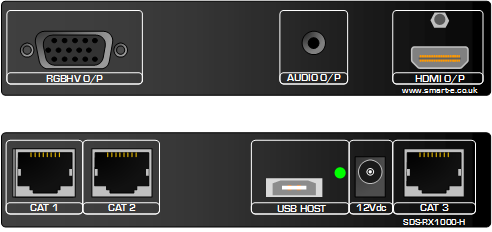

  • Compact receiver units
  • Stereo audio
  • Plug and play

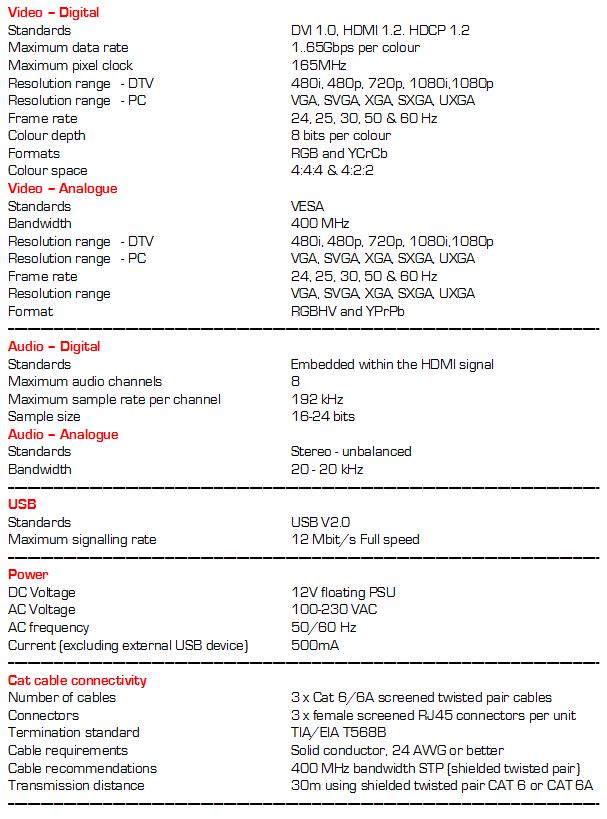

Specification General

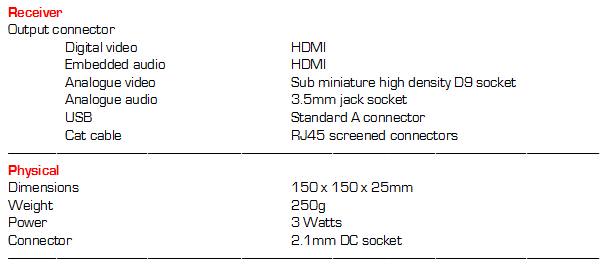

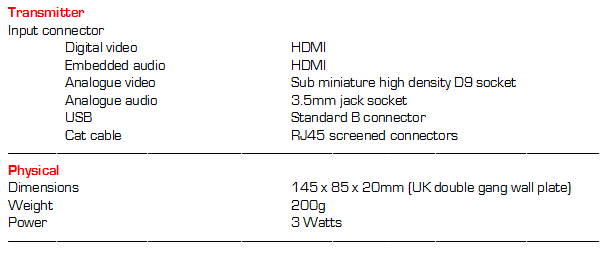

Specification Units


Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.

Description Type Size
Datasheet PDF File 807 KB
Connectivity Sequence PDF File 32 KB
