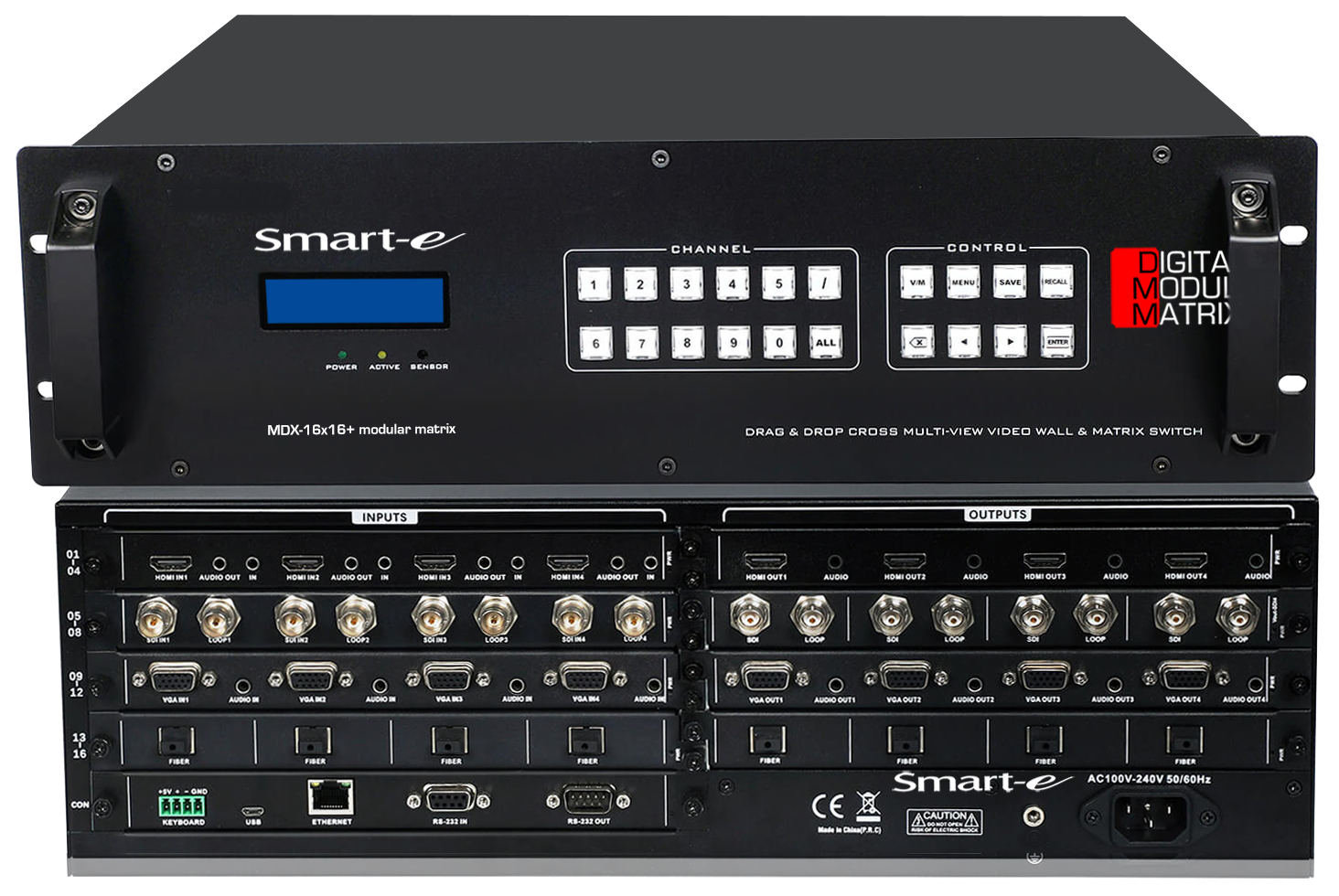

MDX-16×16+
The MDX-16×16+ is an extremely flexible and fully featured modular 16×16 seamless switching matrix. Four channel input and output blades accomodate a wide range of signal types, whilst individual output scaling produces correct aspect ratio for any display size.
Key Features
- Seamless switching
- Output scaling cards
- HDMI, DVI-D, HDBaseT, RGBHV, YPbPr, 3G-SDI and Fibre blades
- 2 way 4K UHD blades now available
- 1080p @60Hz Deep Colour
- 3D compatible & HDCP compliant
- Transmits over a single 100m CAT 6/6A cable with POH
- 300m for multimode fibre
- Space for 4 input blades and 4 output blades (16×16)
- IP and RS232 control

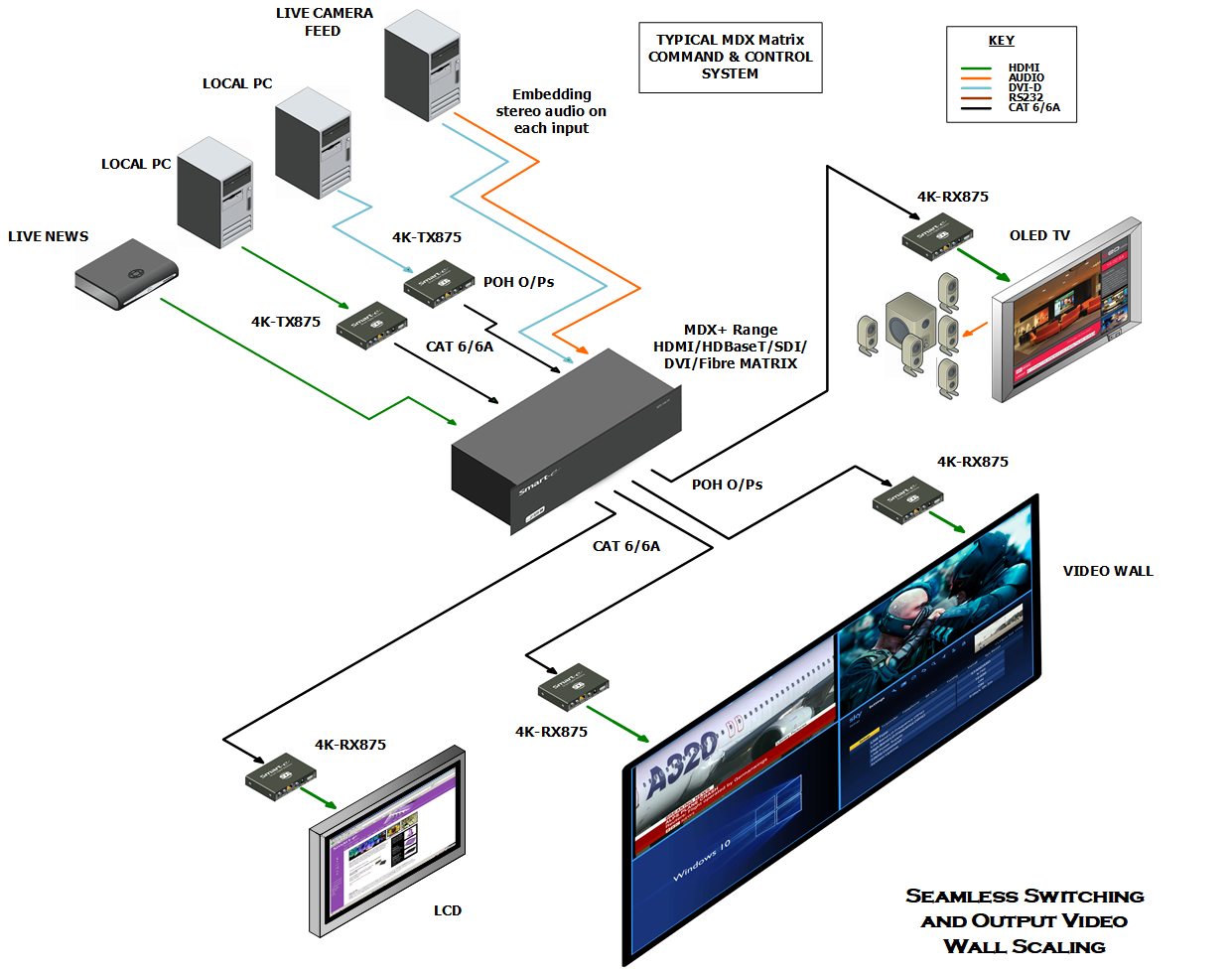

The MDX-16×16+ is a mid sized matrix offering a complete solution for switching and distribution of the most common AV signal types and standard connectivity. Differing signal types can be accommodated by the use of a modular construction. Removeable horizontal blades can be inserted or exchanged allowing inputs and outputs to be expanded in groups of 4 up to the maximum chassis size available. A variety of different blades are presented including: HDMI, DVI, HDBaseT, 3G-SDI and fibre options together with an analogue card capable of accepting RGBHV, YPrPb, Y/C and PAL/NTSC.
All input signals types are converted to an internal standard format allowing the flexibility of conversion to any output signal format. The conversion into an internal co-timed format provides a seamless switching feature allowing images to be changed without frame rolls or the need to go to black. Each output blade has a individual internal scaler allowing every output image to scale to the native resolution of the connected display for a more professional presentation.
The MDX-16×16+ encompasses a comprehensive method of control including IP, an internal web browser, RS232, remote panel and front panel buttons with LCD display. The DMM+ range now incorporates the VMX Videowall processor technology which allows a number of output blades to be grouped together to form a multi display video mosaic or wall. This feature is available for the HDBT, DVI, 3G-SDI and fibre output cards.
Control signal routing is offered as standard allowing infrared and RS232 signals to be selected independently between the HDBaseT inputs and outputs. The signals can be connected via the blades directly or through the connected appropriate Cat 6/6A transmitters and receivers. To aim ease of installation and improve power efficiency and heat dissipation, powering of the transmitters and receivers is achieved through the Cat 6/6A cable. DC power is sent via common mode connection across the 4 differential pairs of the network cabling.
The MDX-16×16+ routes the embedded multi-channel audio from the source device along with the video signal but can also be swapped with a locally generated audio signal and inserted via the HDMI or DVI blade. Similarly embedded audio is transmitted inside the output video signal but is also available as a stereo analogue signal on the HDMI and DVI output blades.
A preview card is also available as an output blade option. This features a streamed MPEG signal capable of displaying a composite of up to 4 input images. By using a streamed signal, remote monitoring of the matrix and the source devices is possible, ideal for inaccessible locations and in particular boats and luxury yachts.
Features
- Modular matrix using 4 way blades
- Multiformat signals: HDMI, DVI, HDBaseT, VGA, 3G-SDI & Fibre
- Seamless switching
- Seperate audio input embedding
- Individual output video scaling
- De-embedded audio output
- HDCP & HDMI 1.4 compliant
- Combined Data rate of 12Gbits/s
- HDTV 1080p, 3D resolutions
- PC resolutions up to 1920 x 1200 @ 60 Hz
- High bandwidth digital switching
- Enhanced EDID management
- Supports Deep Colour (10 & 12 bit)
- TCP/IP control
- Dual port RS232 control
- Inline power for receivers (POH)
- Compact 3U 19″ rack mounting
- 3 year warranty
- Chassis sizes range from 8×8 to 144×144
- Fast switching
- High definition audio switching

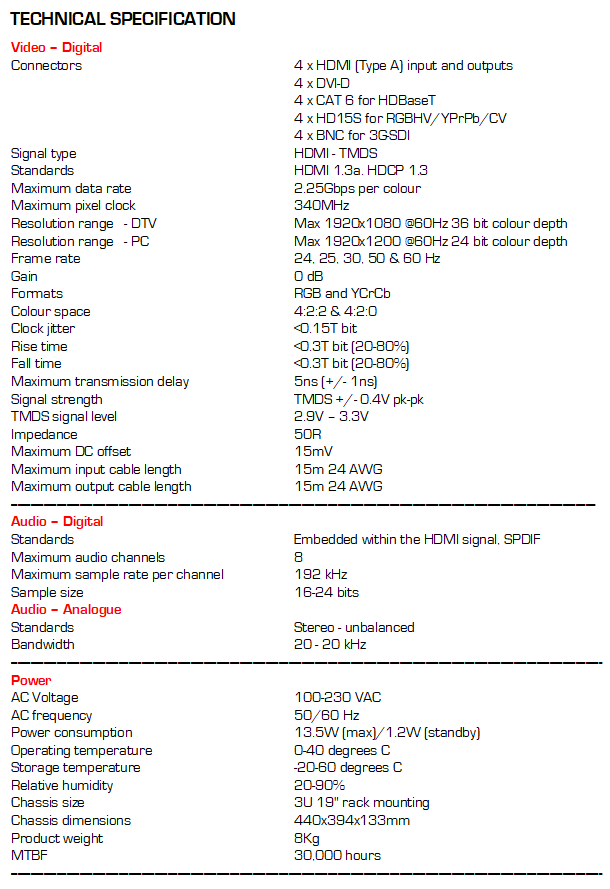

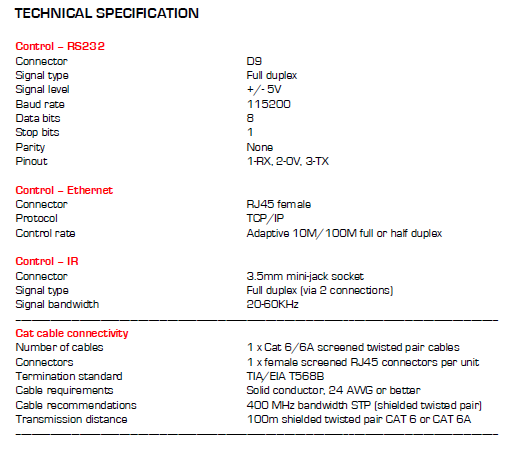

Specification
Downloads
Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.
| Description | Type | Size |
|---|---|---|
| Datasheet | PDF File | 1,050 KB |

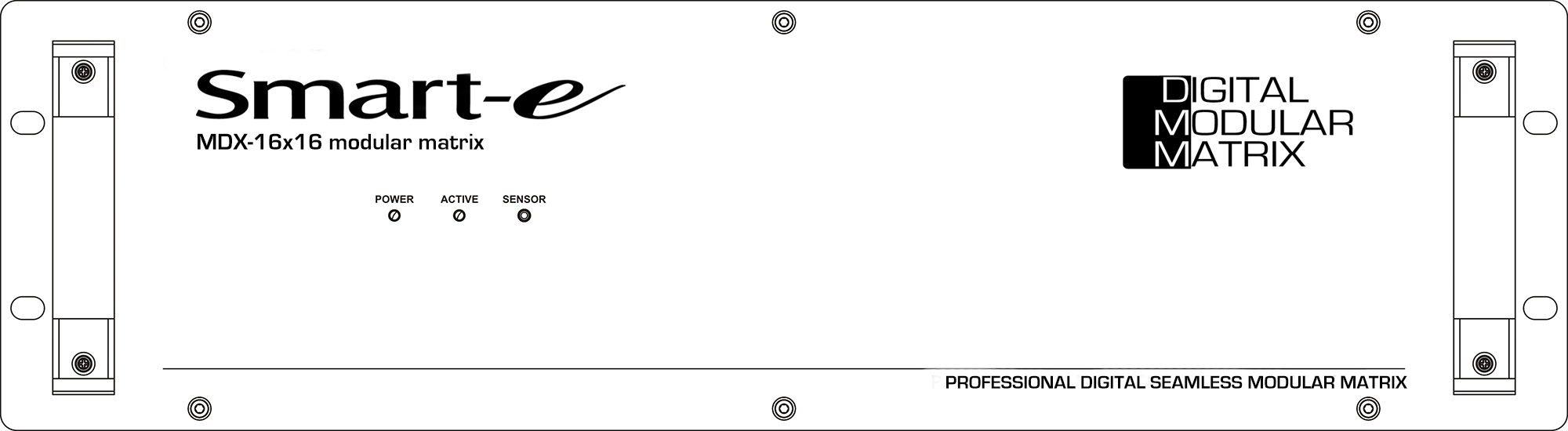

| Front Panel Drawing | PNG File | 150 KB |

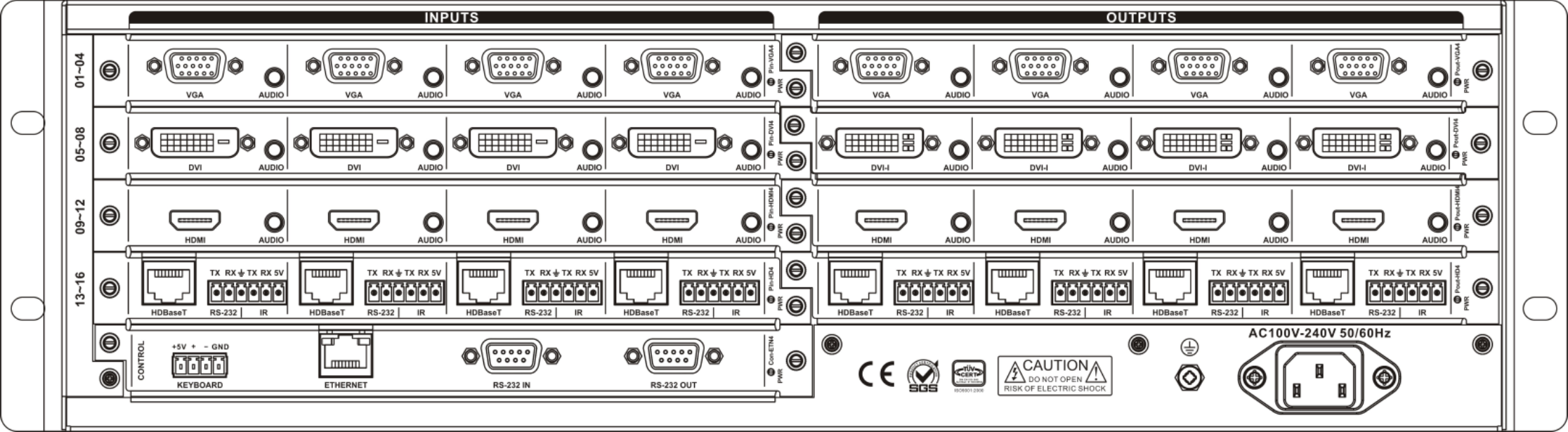

| Rear Panel Drawing | PNG File | 150 KB |
| Manual | PDF File | 2,401 KB |
| Protocol | PDF File | 125 KB |
Transmitters
4K-TX725 (70m)
Features: HDMI > HDBaseT
| Connector Interface | RJ45 |
| Protocol | HDBaseT Lite (70m) |
| EDID Support | Pass-through |
| HDCP Support | Pass-through |
| Resolution (Max) | 4K 4096×2160 @ 60Hz 1920×1200 @ 60Hz |
| Audio | Digital Embedded |
| Max Input Cable Length | Up to 70m |
| Power | 12/24V POH |
| Dimensions | 115 x 65 x 16 (mm) |
4K-TX866 (100m)
Features: HDMI > HDBaseT
| onnector Interface | RJ45 |
| Protocol | Full HDBaseT (100m) |
| EDID Support | Pass-through |
| HDCP Support | Pass-through |
| Resolution (Max) | 4K 4096×2160 @ 60Hz 1920×1200 @ 60Hz |
| Audio | Digital Embedded |
| Max Input Cable Length | Up to 100m |
| Power | 12/24V POH |
| Dimensions | 100 x 100 x 24 (mm) |
Receivers
4K-RX725 (70m)
Features: HDBaseT > HDMI
| Connector Interface | RJ45 |
| Protocol | HDBaseT Lite (70m) |
| EDID Support | Pass-through |
| HDCP Support | Pass-through |
| Resolution (Max) | 4K 4096×2160 @ 30Hz 1920×1200 @ 60Hz |
| Audio | Digital Embedded |
| Max Input Cable Length | Up to 70m |
| Power | 12/24V POH |
| Dimensions | 115 x 65 x 16 (mm) |
4K-RX866 (100m)
Features: HDBaseT > HDMI
| Connector Interface | RJ45 |
| Protocol | Full HDBaseT (100m) |
| EDID Support | Pass-through |
| HDCP Support | Pass-through |
| Resolution (Max) | 4K 4096×2160 @ 30Hz 1920×1200 @ 60Hz |
| Audio | Digital Embedded |
| Max Input Cable Length | Up to 100m |
| Power | 12/24V POH |
| Dimensions | 100 x 100 x 24 (mm) |
Input Blades
MDX-RX4-HDBT
HDBaseT Input Blade 4 x HDBT RXs
The MDX-RX4-HDBT is a 4 port HDBaseT input blade for the DMM2 series.
Each of the 4 inputs are fully independent and can be connected to a remote smart-e HDBaseT transmitter using a single Cat5/6 cable up to 100m. We recommend using Cat 6a or Cat 6 STP.
| Inputs (Receivers) | 4 x Cat 5/6 STP HDBaseT |
| Connector Interface | 4 x RJ45 |
| Protocol | Full HDBaseT |
| Interface Bandwidth | 6.75Gbps – 165MHz |
| EDID Support | Pass-through |
| HDCP Support | Pass-through |
| IR/RS232 Support | Pass-through |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Audio | Digital Embedded |
| Max Input Cable Length | Up to 100m |
| Form Factor | DMM2 blade |
| Weight | Approx 1kg |
| Power | Powered by DMM chassis |
| Power draw | <40W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
MDX-IP4-HDMI
HDMI Input Blade (4 x HDMI Inputs)
The MDX-IP4-HDMI is an 4 port HDMI and stereo audio input blade for the DMM2 series.
Each of the 4 inputs are fully independent with active-input technology supporting extended input cable lengths of up to 15 meters @ 1920×1200 60Hz.
| Outputs | 4 x HDMI & AA |
| 3D | HDMI 1.4 3D |
| Protocol | HDMI 1.4, HDMI 1.3a, DVI 1.0, HDCP 1.3 |
| Interface Bandwidth | 6.75Gbps – 165MHz |
| EDID Support | Optional default EDID and load function |
| HDCP Support | Pass-through |
| Clock Jitter | <0.15T bit |
| Rise/Fall Time | <0.3T bit (20%-80%) |
| Max Transmission Delay | 5ns (±1ns) |
| Signal Strength | T.M.D.S +/- 0.4Vpp |
| Min/Max Level | T.M.D.S 2.9V / 3.3 V |
| Impedance | 50Ω |
| Max DC Offset Error | 15mV |
| Max Cable Length | Up to 15 metres @ 1920×1200 |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Audio | Digital Embedded/Analogue Stereo |
| Form Factor | DMM2 blade |
| Weight | Approx 0.5kg |
| Power | Powered by DMM2 chassis |
| Power draw | <12W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
MDX-IP4-DVI
DVI-D Input Blade (4 x DVI-D Inputs)
The MDX-IP4-DVI is an 4 port DVI and stereo audio input blade for the DMM2 series.
Each of the 4 inputs are fully independent with active-input technology supporting extended input cable lengths of up to 15 meters @ 1920×1200 60Hz.
| Outputs | 4 x DVI-D |
| Gain | 0dB |
| Protocol | DVI 1.0, HDMI 1.3a, HDCP 1.3 |
| Interface Bandwidth | 6.75Gbps – 165MHz |
| EDID Support | Optional default EDID and load function |
| HDCP Support | Pass-through |
| Clock Jitter | <0.15T bit |
| Rise/Fall Time | <0.3T bit (20%-80%) |
| Max Transmission Delay | 5ns (±1ns) |
| Signal Strength | T.M.D.S +/- 0.4Vpp |
| Min/Max Level | T.M.D.S 2.9V / 3.3 V |
| Impedance | 50Ω |
| Max DC Offset Error | 15mV |
| Max Cable Length | Up to 15 metres @ 1920×1200 |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Audio | Analogue Stereo |
| Form Factor | DMM2 blade |
| Weight | Approx 0.5kg |
| Power | Powered by DMM chassis |
| Power draw | <12W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
MDX-IP4-VGA
Multi-Format Analogue Input Blade
The MDX-IP4-VGA is a 4 port multi-format analogue and stereo audio input blade for the DMM series.
Each of the 4 inputs are fully independent and can take a variety of input formats @ 1920×1200 60Hz. Including RGBHV, CV and YPrPb.
| Inputs | 4 x Multi-format Analogue Video |
| Connector Interface | 4 x HD15 socket |
| Signal Type | RGBHV/YPrPb/CV |
| Bandwidth | 380 MHz |
| Differential Phase | +/-0.1°,3.58-4.43 MHz |
| Differential Gain | +/- 0.1%, 3.58-4.43 MHz |
| Impedance | 75Ω |
| Gain | 0dB |
| Audio | Analogue Stereo |
| Max Input Cable Length | Up to 15m |
| Form Factor | DMM2 blade |
| Weight | Approx 1kg |
| Power | Powered by DMM chassis |
| Power draw | <40W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
MDX-IP4-3GSDI
3G-SDI Input Blade (4 x 3G/HD-SDI Inputs)
The MDX-IP4-SDI is a 4 port 3G-SDI, HD-SDI and/or SDI input blade for the DMM2 series.
Each of the 4 inputs are fully independent and can take a variety of input formats @ 1920×1200 60Hz. Including 3G-SDI, HD-SDI and also SDI.
| Inputs | 4 x looping input SDI (BNC) |
| Format | SDI, HD-SDI and 3G-SDI |
| Protocol | SMPTE 425M, 424M, 292M, 259M-C and DVB-ASI |
| Interface Bandwidth | 3G-SDI 2.970Gbps & 1.001 HD-SDI 1.485Gbps & 1.001 SDI 270Mbps |
| EDID Support | Optional default EDID and load function |
| Rise/Fall Time | 400 / 700 ps |
| Range | 0.8V p-p +/-10% |
| DC Offset | 0V +/-0.5 |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Overshoot / Mobile | <10% / <540ps +/-10% |
| Form Factor | DMM2 blade |
| Weight | Approx 0.5kg |
| Power | Powered by DMM chassis |
| Power draw | <40W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
MDX-RX4-MFB
Optical Fibre Input Blade (4 x MFB Inputs)
The MDX-RX4-MFB is a 4 port Multi-mode optical fibre input blade for the DMM2 series.
Each of the 4 inputs are fully independent with active-input technology supporting extended input fibre lengths of up to 300 meters @ 1920×1200 60Hz.
| Inputs | 4 x SC Optical fibre interface |
| Format | Multimode |
| Wavelength | 850nm |
| Interface Bandwidth | Forward: 6.25 Gbps / Reverse: 3.125 Gbps |
| EDID Support | Optional default EDID and load function |
| Rise/Fall Time | <0.3 Tbit (20%-80%) |
| Clock Jitter | <0.15 Tbit |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Fibre Type | OM3 Multimode |
| Max Fibre Length | 300m |
| Form Factor | DMM2 blade |
| Weight | Approx 0.5kg |
| Power | Powered by DMM chassis |
| Power draw | <40W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
Output Blades
MDX-TX4-HDBT
HDBaseT Output Blade (4 x HDBT TXs)
The MDX-TX4-HDBT is a 4 port HDBaseT output blade for the DMM2 series.
Each of the 4 outputs are fully independent and can be connected to a remote smart-e HDBaseT receiver using a single Cat5/6 cable up to 100m. We recommend using Cat 6a or Cat 6 STP.
| Outputs (Receivers) | 4 x Cat 5/6 STP HDBaseT |
| Connector Interface | 4 x RJ45 |
| Protocol | Full HDBaseT |
| Interface Bandwidth | 6.75Gbps – 165MHz |
| EDID Support | Pass-through |
| HDCP Support | Pass-through |
| IR/RS232 Support | Pass-through |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Audio | Digital Embedded |
| Max Input Cable Length | Up to 100m |
| Form Factor | DMM2 blade |
| Weight | Approx 1kg |
| Power | Powered by DMM chassis |
| Power draw | <40W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
MDX-OP4-HDMI
HDMI Output Blade (4 x HDMI Outputs)
The MDX-OP4-HDMI is a 4 port HDMI and stereo audio output blade for the DMM2 series.
Each of the 4 outputs are fully independent with active-output technology supporting extended output cable lengths of up to 15 meters @ 1920×1200 60Hz.
| Outputs | 4 x HDMI & AA |
| 3D | HDMI 1.4 3D |
| Protocol | HDMI 1.4, HDMI 1.3a, DVI 1.0, HDCP 1.3 |
| Interface Bandwidth | 6.75Gbps – 165MHz |
| EDID Support | Optional default EDID and load function |
| HDCP Support | Pass-through |
| Clock Jitter | <0.15T bit |
| Rise/Fall Time | <0.3T bit (20%-80%) |
| Max Transmission Delay | 5ns (±1ns) |
| Signal Strength | T.M.D.S +/- 0.4Vpp |
| Min/Max Level | T.M.D.S 2.9V / 3.3 V |
| Impedance | 50Ω |
| Max DC Offset Error | 15mV |
| Max Cable Length | Up to 15 metres @ 1920×1200 |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Audio | Digital Embedded/Analogue Stereo |
| Form Factor | DMM2 blade |
| Weight | Approx 0.5kg |
| Power | Powered by DMM2 chassis |
| Power draw | <12W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
MDX-OP4-DVI
DVI-D Output Blade (4 x DVI-D Outputs)
The MDX-OP4-DVI is a 4 port DVI and stereo audio output blade for the DMM2 series.
Each of the 4 outputs are fully independent with active-output technology supporting extended output cable lengths of up to 15 meters @ 1920×1200 60Hz.
| Outputs | 4 x DVI-D |
| Gain | 0dB |
| Protocol | DVI 1.0, HDMI 1.3a, HDCP 1.3 |
| Interface Bandwidth | 6.75Gbps – 165MHz |
| EDID Support | Optional default EDID and load function |
| HDCP Support | Pass-through |
| Clock Jitter | <0.15T bit |
| Rise/Fall Time | <0.3T bit (20%-80%) |
| Max Transmission Delay | 5ns (±1ns) |
| Signal Strength | T.M.D.S +/- 0.4Vpp |
| Min/Max Level | T.M.D.S 2.9V / 3.3 V |
| Impedance | 50Ω |
| Max DC Offset Error | 15mV |
| Max Cable Length | Up to 15 metres @ 1920×1200 |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Audio | Analogue Stereo |
| Form Factor | DMM2 blade |
| Weight | Approx 0.5kg |
| Power | Powered by DMM chassis |
| Power draw | <12W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
MDX-OP4-VGA
Multi-Format Analogue Output Blade
The MDX-OP4-VGA is a 4 port multi-format analogue and stereo audio output blade for the DMM2 series.
Each of the 4 outputs are fully independent and can take a variety of input formats @ 1920×1200 60Hz. Including RGBHV, CV and YPrPb.
| Outputs | 4 x looping SDI (BNC) |
| Format | SDI, HD-SDI and 3G-SDI |
| Protocol | SMPTE 425M, 424M, 292M, 259M-C and DVB-ASI |
| Interface Bandwidth | 3G-SDI 2.970Gbps & 1.001 HD-SDI 1.485Gbps & 1.001 SDI 270Mbps |
| EDID Support | Optional default EDID and load function |
| Rise/Fall Time | 400 / 700 ps |
| Range | 0.8V p-p +/-10% |
| DC Offset | 0V +/-0.5 |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Overshoot / Mobile | <10% / <540ps +/-10% |
| Form Factor | DMM2 blade |
| Weight | Approx 0.5kg |
| Power | Powered by DMM chassis |
| Power draw | <40W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
MDX-OP4-3GSDI
3G-SDI Output Blade (4 x 3G/HD-SDI Outputs)
The MDX-OP4-SDI is a 4 port 3G-SDI, HD-SDI and/or SDI output blade for the DMM2 series.
Each of the 4 outputs are fully independent and can take a variety of output formats @ 1920×1200 60Hz. Including 3G-SDI, HD-SDI and also SDI.
| Outputs | 4 x looping SDI (BNC) |
| Format | SDI, HD-SDI and 3G-SDI |
| Protocol | SMPTE 425M, 424M, 292M, 259M-C and DVB-ASI |
| Interface Bandwidth | 3G-SDI 2.970Gbps & 1.001 HD-SDI 1.485Gbps & 1.001 SDI 270Mbps |
| EDID Support | Optional default EDID and load function |
| Rise/Fall Time | 400 / 700 ps |
| Range | 0.8V p-p +/-10% |
| DC Offset | 0V +/-0.5 |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Overshoot / Mobile | <10% / <540ps +/-10% |
| Form Factor | DMM2 blade |
| Weight | Approx 0.5kg |
| Power | Powered by DMM chassis |
| Power draw | <40W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
MDX-TX4-MFB
Optical Fibre Output Blade (4 x MFB Outputs)
The MDX-TX4-MFB is a 4 port Multi-mode optical fibre output blade for the DMM2 series.
Each of the 4 outputs are fully independent with active-output technology supporting extended output fibre lengths of up to 300 meters @ 1920×1200 60Hz.
| Inputs | 4 x SC Optical fibre interface |
| Format | Multimode |
| Wavelength | 850nm |
| Interface Bandwidth | Forward: 6.25 Gbps / Reverse: 3.125 Gbps |
| EDID Support | Optional default EDID and load function |
| Rise/Fall Time | <0.3 Tbit (20%-80%) |
| Clock Jitter | <0.15 Tbit |
| Resolution (Max) | 1920×1200 @ 60Hz |
| Fibre Type | OM3 Multimode |
| Max Fibre Length | 300m |
| Form Factor | DMM2 blade |
| Weight | Approx 0.5kg |
| Power | Powered by DMM chassis |
| Power draw | <40W (max) |
| Environment | 0-50°C / 10-90% non-condensing |
| Compliance | CE, RoHS |
