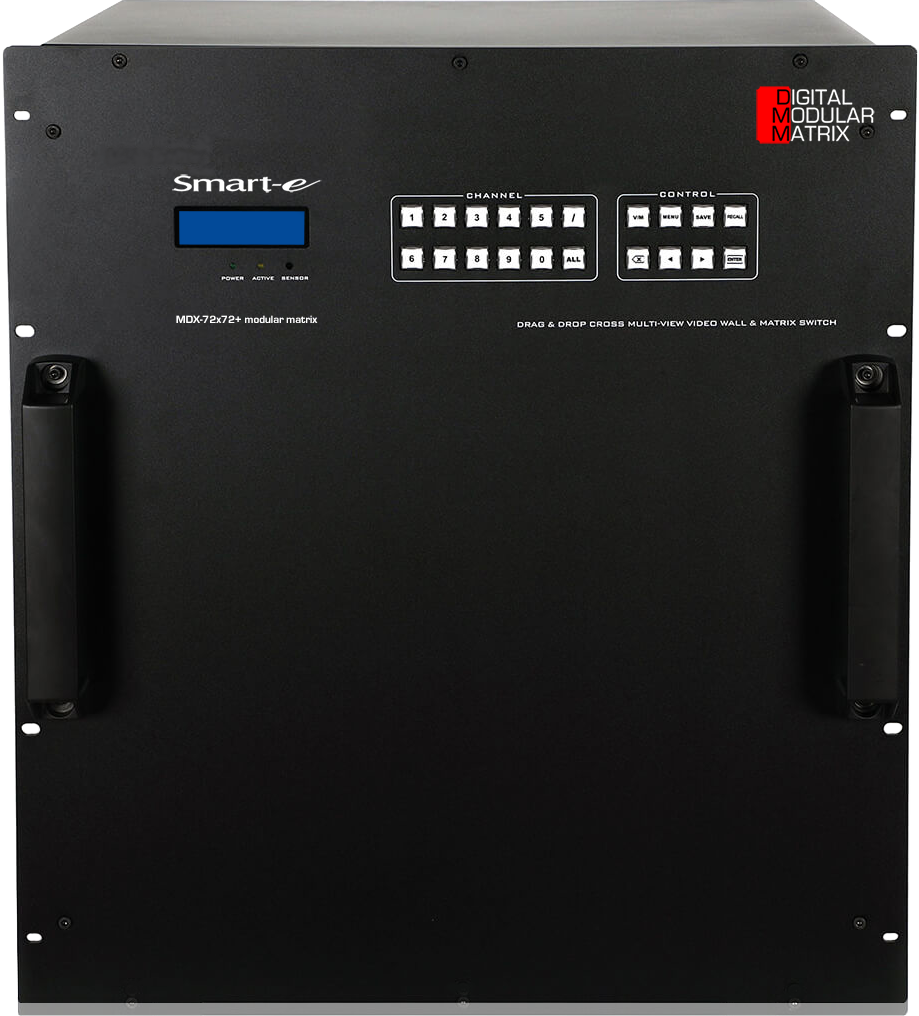

MDX-72×72

The MDX-72×72 is a professional flexible Digital Modular Matrix (DMM) capable of selecting between 72 different devices to 72 displays. Seamless switching together with output video scaling provides a professional image selection whilst 4-way modular input and output cards  cater for a wide range of signal formats.

Key Features

  • HDMI, DVI, HDBaseT, Fibre, VGA & SDI
  • HDCP & HDMI 1.4 compliant
  • Combined Data rate of 12 Gbits/s
  • HDTV 1080p 60Hz 36bpp resolutions
  • PC resolutions up to 1920×1200@60 Hz
  • Seamless switching
  • Enhanced EDID management
  • Supports Deep Colour (10, 12 & 16 bit)
  • Modular construction – 4 port cards

The MDX-72×72 is a professional flexible Digital Modular Matrix (DMM) capable of selecting between 72 different devices to 72 displays. Seamless switching together with output video scaling provides a professional image selection whilst 4-way modular input and output cards cater for a wide range of signal formats.

The MDX-72×72 chassis offers an unprecendented level of both switching and distribution functionality for high resolution HDMI, DVI, HDBaseT and 3G-SDI. Legacy products are also catered for with analogue input cards capable of accepting RGBHV, YPrPb, Y/C and PAL/NTSC all of which can be up-scaled to 1080p resolution.

By combining Seamless video switching with modular input and output modules Smart-e sets a new benchmark for complete integrated AV solutions, all of which can be controlled easily via either IP, RS232 and keypad.

Fully HDCP compliant and incorporating enhanced EDID management the matrix is ideal for many multi-channel signal switching and distribution for Commercial, Educational and Residential solutions. Compact 12U 19″ rack mounting chassis makes for ease of installation with optional upgrade to SmartiP (extra 1U)

Features

  • HDMI, DVI, HDBaseT, Fibre, VGA & SDI
  • HDCP & HDMI 1.4 compliant
  • Combined Data rate of 12 Gbits/s
  • HDTV 1080p 60Hz 36bpp resolutions
  • PC resolutions up to 1920×1200@60 Hz
  • Seamless switching
  • Enhanced EDID management
  • Supports Deep Colour (10, 12 & 16 bit)
  • Modular construction – 4 port cards
  • Individual output scaling
  • TCP/IP control
  • Dual port RS232 control
  • Inline power for receivers (POH)
  • Compact 12U 19″ rack mounting
  • 3 year warranty
  • Sizes ranges from 8×8 to 144×144

Specification

Downloads

Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.

Description Type Size
Datasheet PDF File 3,165 KB

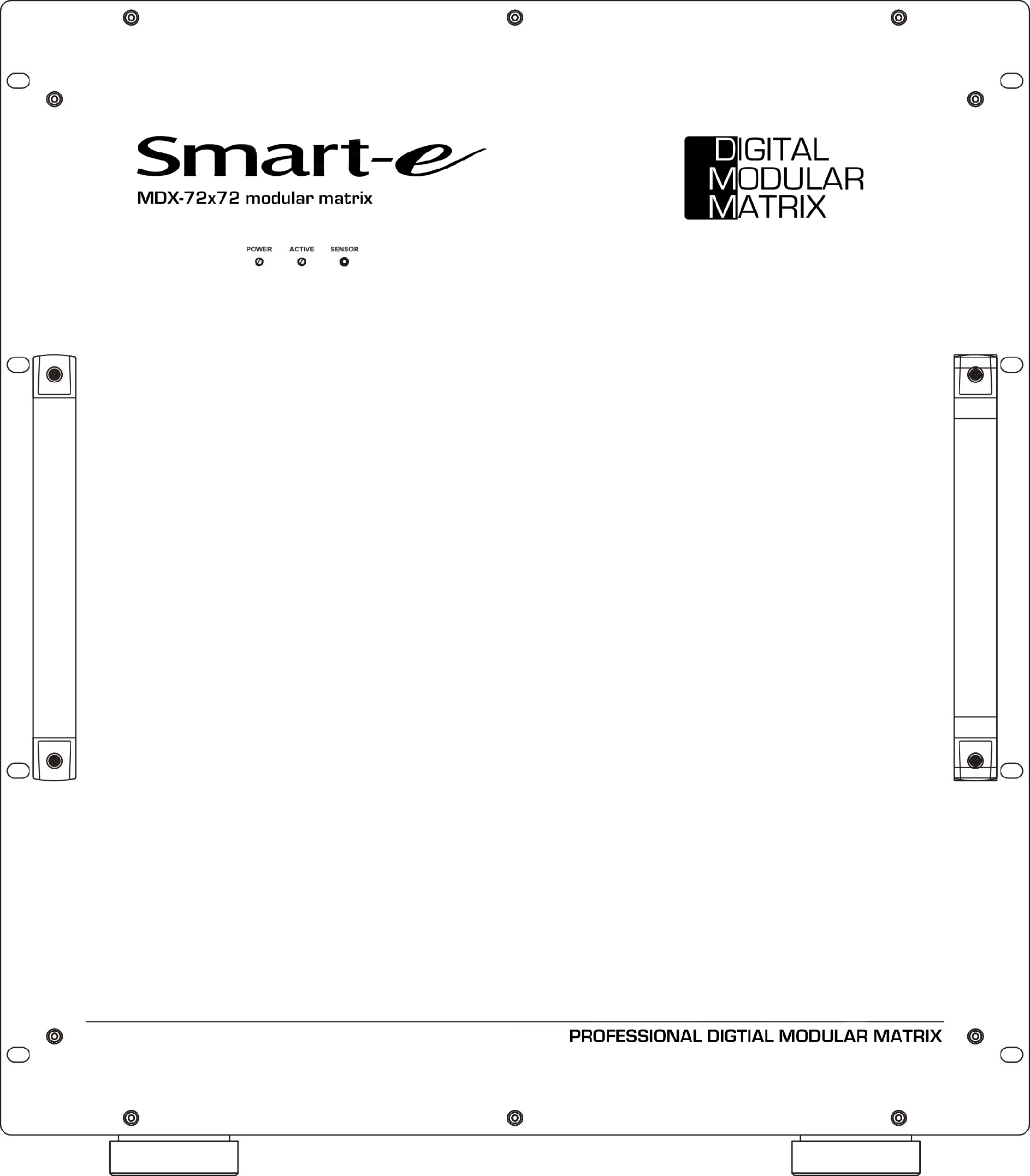

Front Panel Drawing PNG File 150 KB

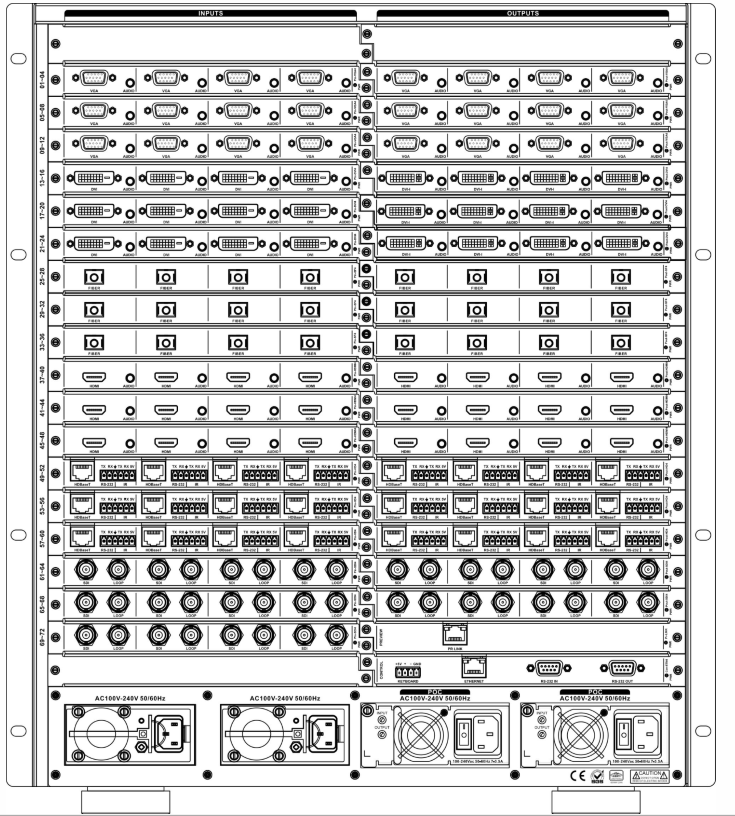

Rear Panel Drawing PNG File 150 KB
Manual PDF File 2,350 KB
Protocol PDF File 125 KB

Transmitters

44K-TX750 (70m)

Features: HDMI

Connector Interface RJ45
Protocol HDBaseT Lite (70m)
EDID Support Pass-through
HDCP Support Pass-through
Resolution (Max) 4K 4096×2160 @ 60Hz
1920×1200 @ 60Hz
Audio Digital Embedded
Max Input Cable Length Up to 70m
Power 24V POH
Dimensions 70 x 65 x 25 (mm)

444K-TX875 (100m)

Features: HDMI

onnector Interface RJ45
Protocol Full HDBaseT (100m)
EDID Support Pass-through
HDCP Support Pass-through
Resolution (Max) 4K 4096×2160 @ 60Hz
1920×1200 @ 60Hz
Audio Digital Embedded
Max Input Cable Length Up to 100m
Power 24V POH
Dimensions 70 x 65 x 25 (mm)

Receivers

4K-RX725 (70m)

Connector Interface RJ45
Protocol HDBaseT Lite (70m)
EDID Support Pass-through
HDCP Support Pass-through
Resolution (Max) 4K 4096×2160 @ 30Hz
1920×1200 @ 60Hz
Audio Digital Embedded
Max Input Cable Length Up to 70m
Power 24V POH
Dimensions 70 x 65 x 25 (mm)

4K-RX866 (100m)

Connector Interface RJ45
Protocol Full HDBaseT (100m)
EDID Support Pass-through
HDCP Support Pass-through
Resolution (Max) 4K 4096×2160 @ 30Hz
1920×1200 @ 60Hz
Audio Digital Embedded
Max Input Cable Length Up to 100m
Power 24V POH
Dimensions 1000 x 100 x 23 (mm)

Input Blades

MDX-RX4-HDBT

HDBaseT Input Blade 4 x HDBT RXs

The MDX-RX4-HDBT is a 4 port HDBaseT input blade for the DMM2 series.

Each of the 4 inputs are fully independant and can be connected to a remote smart-e HDBaseT transmitter using a single Cat5/6 cable up to 100m. We recommend using Cat 6a or Cat 6 STP.

An example HDBaseT transmitter is the 4K-TX810

Inputs (Receivers) 4 x Cat 5/6 STP HDBaseT
Connector Interface 4 x RJ45
Protocol Full HDBaseT
Interface Bandwidth 6.75Gbps – 165MHz
EDID Support Pass-through
HDCP Support Pass-through
IR/RS232 Support Pass-through
Resolution (Max) 1920×1200 @ 60Hz
Audio Digital Embedded
Max Input Cable Length Up to 100m
Form Factor DMM2 blade
Weight Approx 1kg
Power Powered by DMM chassis
Power draw <40W (max)
Environment 0-50°C / 10-90%
non-condensing
Compliance CE, RoHS

MDX-IP4-HDMI

HDMI Input Blade (4 x HDMI Inputs)

The MDX-IP4-HDMI is an 4 port HDMI and stereo audio input blade for the DMM2 series.

Each of the 4 inputs are fully independant with active-input technology supporting extended input cable lengths of up to 15 meters @ 1920×1200 60Hz.

Inputs (Receivers) 4 x Cat 5/6 STP HDBaseT
Connector Interface 4 x RJ45
Protocol Full HDBaseT
Interface Bandwidth 6.75Gbps – 165MHz
EDID Support Pass-through
HDCP Support Pass-through
IR/RS232 Support Pass-through
Resolution (Max) 1920×1200 @ 60Hz
Audio Digital Embedded
Max Input Cable Length Up to 100m
Form Factor DMM2 blade
Weight Approx 1kg
Power Powered by DMM chassis
Power draw <40W (max)
Environment 0-50°C / 10-90%
non-condensing
Compliance CE, RoHS

MDX-IP4-DVI

DVI-D Input Blade (4 x DVI-D Inputs)

The MDX-IP4-DVI is an 4 port DVI and stereo audio input blade for the DMM2 series.

Each of the 4 inputs are fully independant with active-input technology supporting extended input cable lengths of up to 15 meters @ 1920×1200 60Hz.

Inputs (Receivers) 4 x Cat 5/6 STP HDBaseT
Connector Interface 4 x RJ45
Protocol Full HDBaseT
Interface Bandwidth 6.75Gbps – 165MHz
EDID Support Pass-through
HDCP Support Pass-through
IR/RS232 Support Pass-through
Resolution (Max) 1920×1200 @ 60Hz
Audio Digital Embedded
Max Input Cable Length Up to 100m
Form Factor DMM2 blade
Weight Approx 1kg
Power Powered by DMM chassis
Power draw <40W (max)
Environment 0-50°C / 10-90%
non-condensing
Compliance CE, RoHS

MDX-IP4-VGA

Multi-Format Analogue Input Blade (4 Inputs)

The DX-IP4-VGA is a 4 port multi-format analogue and stereo audio input blade for the DMM series.

Each of the 4 inputs are fully independant and can take a variety of input formats @ 1920×1200 60Hz. Including RGBHV, CV and YPrPb.

Inputs (Receivers) 4 x Cat 5/6 STP HDBaseT
Connector Interface 4 x RJ45
Protocol Full HDBaseT
Interface Bandwidth 6.75Gbps – 165MHz
EDID Support Pass-through
HDCP Support Pass-through
IR/RS232 Support Pass-through
Resolution (Max) 1920×1200 @ 60Hz
Audio Digital Embedded
Max Input Cable Length Up to 100m
Form Factor DMM2 blade
Weight Approx 1kg
Power Powered by DMM chassis
Power draw <40W (max)
Environment 0-50°C / 10-90%
non-condensing
Compliance CE, RoHS

MDX-IP4-SDI

3G-SDI Input Blade (4 x 3G/HD-SDI Inputs)

The MDX-IP4-SDI is a 4 port 3G-SDI, HD-SDI and/or SDI input blade for the DMM2 series.

Each of the 4 inputs are fully independant and can take a variety of input formats @ 1920×1200 60Hz. Including 3G-SDI, HD-SDI and also SDI.

Inputs 4 x looping input SDI (BNC)
Format SDI, HD-SDI and 3G-SDI
Protocol SMPTE 425M, 424M, 292M, 259M-C and DVB-ASI
Interface Bandwidth 3G-SDI 2.970Gbps & 1.001
HD-SDI 1.485Gbps & 1.001
SDI 270Mbps
EDID Support Optional default EDID and load function
Rise/Fall Time 400 / 700 ps
Range 0.8V p-p +/-10%
DC Offset 0V +/-0.5
Resolution (Max) 1920×1200 @ 60Hz
Overshoot / Mobile <10% / <540ps +/-10%
Form Factor DMM2 blade
Weight Approx 0.5kg
Power Powered by DMM chassis
Power draw <40W (max)
Environment 0-50°C / 10-90%
non-condensing
Compliance CE, RoHS

Output Blades

MDX-TX4-HDBT

HDBaseT Output Blade (4 x HDBT TXs)

The MDX-TX4-HDBT is a 4 port HDBaseT output blade for the DMM2 series.

Each of the 4 outputs are fully independant and can be connected to a remote smart-e HDBaseT receiver using a single Cat5/6 cable up to 100m. We recommend using Cat 6a or Cat 6 STP.

An example HDBaseT receiver is the 4K-RX810

Outputs (Receivers) 4 x Cat 5/6 STP HDBaseT
Connector Interface 4 x RJ45
Protocol Full HDBaseT
Interface Bandwidth 6.75Gbps – 165MHz
EDID Support Pass-through
HDCP Support Pass-through
IR/RS232 Support Pass-through
Resolution (Max) 1920×1200 @ 60Hz
Audio Digital Embedded
Max Input Cable Length Up to 100m
Form Factor DMM2 blade
Weight Approx 1kg
Power Powered by DMM chassis
Power draw <40W (max)
Environment 0-50°C / 10-90%
non-condensing
Compliance CE, RoHS

MDX-OP4-HDMI

HDMI Output Blade (4 x HDMI Outputs)

The MDX-OP4-HDMI is a 4 port HDMI and stereo audio output blade for the DMM2 series.

Each of the 4 outputs are fully independant with active-output technology supporting extended output cable lengths of up to 15 meters @ 1920×1200 60Hz.

Outputs 4 x HDMI & AA
3D HDMI 1.4 3D
Protocol HDMI 1.4, HDMI 1.3a, DVI 1.0, HDCP 1.3
Interface Bandwidth 6.75Gbps – 165MHz
EDID Support Optional default EDID and load function
HDCP Support Pass-through
Clock Jitter <0.15T bit
Rise/Fall Time <0.3T bit (20%-80%)
Max Transmission Delay 5ns (±1ns)
Signal Strength T.M.D.S +/- 0.4Vpp
Min/Max Level T.M.D.S 2.9V / 3.3 V
Impedance 50Ω
Max DC Offset Error 15mV
Max Cable Length Up to 15 metres @ 1920×1200
Resolution (Max) 1920×1200 @ 60Hz
Audio Digital Embedded
Form Factor DMM2 blade
Weight Approx 0.5kg
Power Powered by DMM2 chassis
Power draw <12W (max)
Environment 0-50°C / 10-90%
non-condensing
Compliance CE, RoHS

MDX-OP4-DVI

DVI-D Output Blade (4 x DVI-D Outputs)

The MDX-OP4-DVI is a 4 port DVI and stereo audio output blade for the DMM2 series.

Each of the 4 outputs are fully independant with active-output technology supporting extended output cable lengths of up to 15 meters @ 1920×1200 60Hz.

Outputs 4 x DVI-D
Gain 0dB
Protocol DVI 1.0, HDMI 1.3a, HDCP 1.3
Interface Bandwidth 6.75Gbps – 165MHz
EDID Support Optional default EDID and load function
HDCP Support Pass-through
Clock Jitter <0.15T bit
Rise/Fall Time <0.3T bit (20%-80%)
Max Transmission Delay 5ns (±1ns)
Signal Strength T.M.D.S +/- 0.4Vpp
Min/Max Level T.M.D.S 2.9V / 3.3 V
Impedance 50Ω
Max DC Offset Error 15mV
Max Cable Length Up to 15 metres @ 1920×1200
Resolution (Max) 1920×1200 @ 60Hz
Audio Digital Embedded
Form Factor DMM2 blade
Weight Approx 0.5kg
Power Powered by DMM chassis
Power draw <12W (max)
Environment 0-50°C / 10-90%
non-condensing
Compliance CE, RoHS

MDX-OP4-SDI

3G-SDI Output Blade (4 x 3G/HD-SDI Outputs)

The MDX-OP4-SDI is a 4 port 3G-SDI, HD-SDI and/or SDI output blade for the DMM series.

Each of the 4 outputs are fully independant and can take a variety of output formats @ 1920×1200 60Hz. Including 3G-SDI, HD-SDI and also SDI.

Outputs 4 x looping SDI (BNC)
Format SDI, HD-SDI and 3G-SDI
Protocol SMPTE 425M, 424M, 292M, 259M-C and DVB-ASI
Interface Bandwidth 3G-SDI 2.970Gbps & 1.001
HD-SDI 1.485Gbps & 1.001
SDI 270Mbps
EDID Support Optional default EDID and load function
Rise/Fall Time 400 / 700 ps
Range 0.8V p-p +/-10%
DC Offset 0V +/-0.5
Resolution (Max) 1920×1200 @ 60Hz
Overshoot / Mobile <10% / <540ps +/-10%
Form Factor DMM2 blade
Weight Approx 0.5kg
Power Powered by DMM chassis
Power draw <40W (max)
Environment 0-50°C / 10-90%
non-condensing
Compliance CE, RoHS
