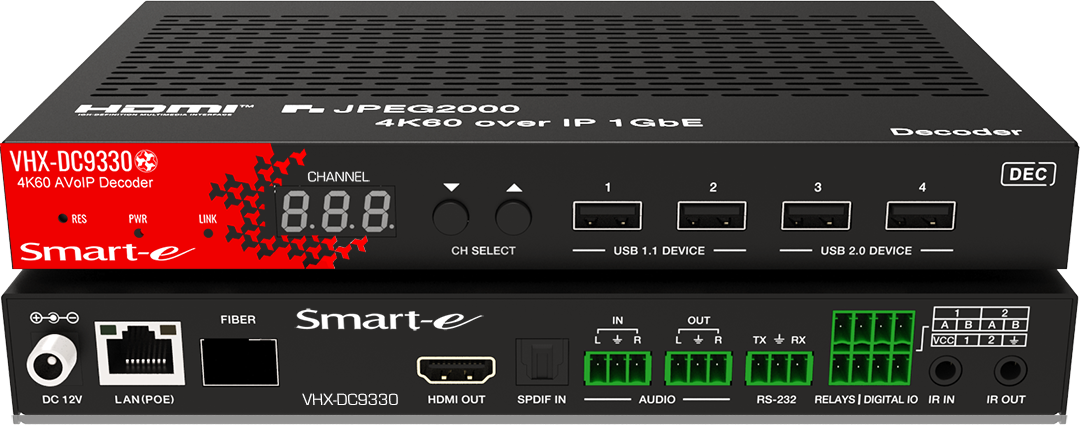

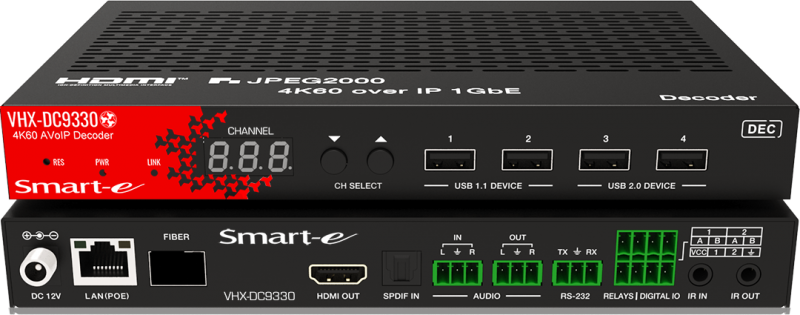

VHX-DC9330 4K 60Hz AVoIP Decoder

The VHX-DC9330 4K 60Hz AVoIP Decoder is a flexible and cost-effective Audio and Video over Internet Protocol (AVoIP) decoder for HDMI, audio, infrared, R232 and USB 1.1 / 2.0 signals. The units enable high definition HDMI signals up to 4K resolutions to be received over a 1G Ethernet network with minimal latency and excellent visual quality.

Key Features

  • JPEG 2000 compression
  • HDMI 2.0b 4K@60Hz
  • 4:4:4, 18Gbps
  • HDCP 2.2 compliant
  • Scaling HDMI output
  • Low latency <frame
  • 1G Ethernet
  • USB 1.1 & 2.0
  • Video Wall option

Other Links

Feature highlights

Images

VHX-9330 series

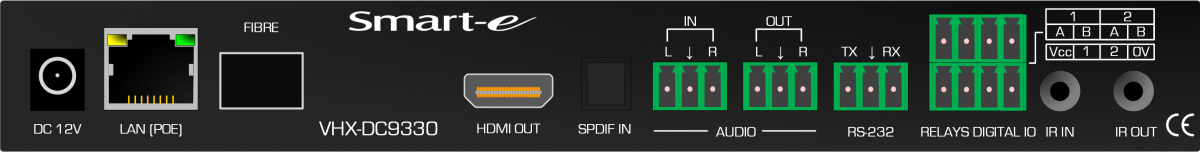

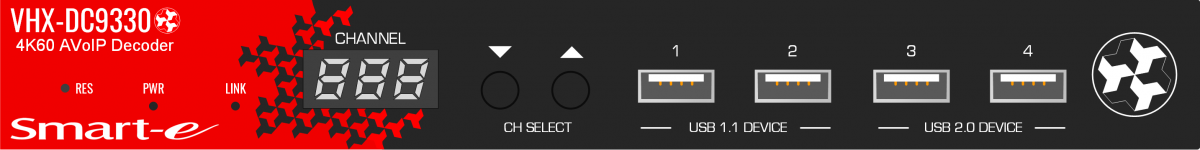

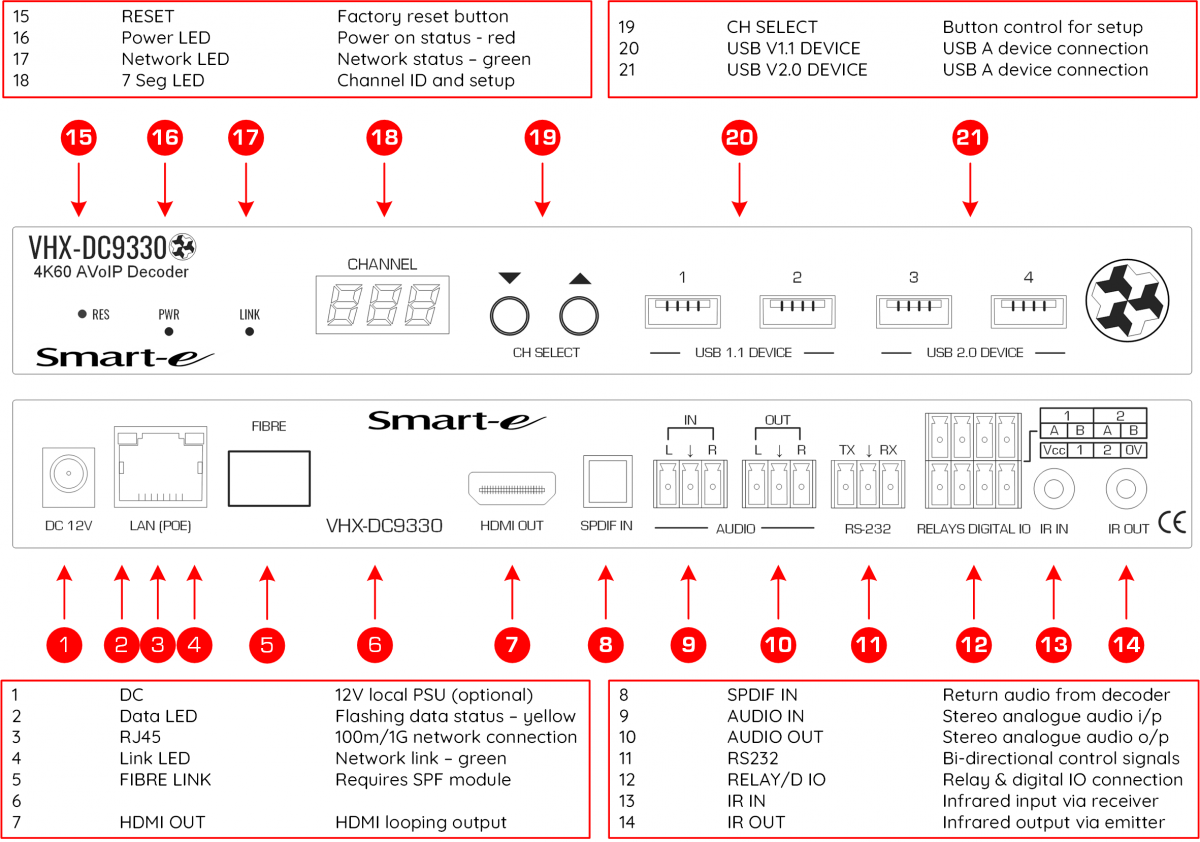

The VHX-DC9330 4K AVoIP decoder provides the interface and conversion between the IP stream present on the Ethernet network and the HDMI and control signal outputs. The VHX-DC9330 is able to convert the compressed JPEG 2000 stream back to the original HDMI signal and output it as a 4K resolution video up to 60Hz frame rate. The unit also has an output scaler enabling the video to be adjusted to the native resolution of the connected display.

Video streaming is compatible with a standard 1G Ethernet IGMP switcher using the Unicast and Multicast protocols. Point to point, point to multipoint and matrix switching can be achieved easily using industry standard Ethernet switchers and installation enhanced with the POE feature. Four USB peripheral connections allow for 2 x USB V1.1 devices (keyboard and mouse) and 2 x USB V2.0 devices (webcams, printers and flash drives). Each port also provides a charging/powering 5V at 500mA. Other control signals can also be transmitted over the same network and can be used for RS232, infrared and CEC signals.

The VHX-DC9330 together with the encoder VHX-EN9330 provide a highly scalable and cost-effective solution for distributing HD video and control signals for a multitude of applications. Video walls can also be created with multiple decoders up to a 9×9 system.

For more general information on AVoIP please click here

Features

  • JPEG 2000 compression
  • HDMI 2.0b 4K@60Hz
  • 4:4:4, 18Gbps
  • HDCP 2.2 compliant
  • Scaling HDMI output
  • Low latency <frame
  • 1G Ethernet
  • Fibre SPF option
  • USB 1.1 & 2.0
  • Webcam & printers
  • Video Wall option
  • Full duplex RS232 pass through
  • CEC compliant
  • Analogue audio de/embedding
  • Dante option
  • Audio return form RX – ARC
  • Low power 7W
  • Secure DC connection
  • POE 802.3af Class3, PD
  • Slim profile 21.5mm
  • Rack mounting kits
  • Scalable solution

Specification

Downloads

Click to download or display it in a new browser window.
Large files files may take a few minutes to display on screen.

Description Type Size
VHX-9330 Datasheet V1.0 PDF File 1400KB
VHX-9330 User Manual V1.0 PDF File 2000 KB
